Single Board Computer

Full Size Single Board Computer

The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI and DP, Dual Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
PCIE-Q470 Full-size PICMG 1.3 CPU

PCIE-Q470

Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4, HDMI, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)
1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)
1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)

PCIE-Q870

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150
Intel® Q87
LGA1150
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32GB
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32GB
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 3.0
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 3.0

SPCIE-C2260

Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3
Intel® C226
LGA1150
Intel® C226
LGA1150
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x Ethernet
1 x I²C
1 x Internal Display
4 x Internal RS-232
1 x Internal RS-422
1 x Internal RS-485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 3.0
2 x Ethernet
1 x I²C
1 x Internal Display
4 x Internal RS-232
1 x Internal RS-422
1 x Internal RS-485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 3.0

SPCIE-C236

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (C236 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (C236 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)
SPCIE-C246 Full Size Single Board Computer

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger
‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,
Intel® H81
LGA1150
Intel® H81
LGA1150
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA
4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

Half Size Single Board Computer

IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

HPCIE-C236

Half-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i3/ Pentium®/Celeron® CPU per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Two 260-pin 1600/2133MHz Dual-Channel DDR4 SODIMM ECC & non-ECC unbuffered Memory supported up to 32GB
Two 260-pin 1600/2133MHz Dual-Channel DDR4 SODIMM ECC & non-ECC unbuffered Memory supported up to 32GB
1 x VGA ( via Chrontel CH7517A, up to 1920x1200 @ 60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
1 x VGA ( via Chrontel CH7517A, up to 1920x1200 @ 60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485
4 x USB 2.0 (by pin header)
2 x SATA 3.0 (SATA0, SATA1) (Q170 supports RAID 0, 1)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485
4 x USB 2.0 (by pin header)
2 x SATA 3.0 (SATA0, SATA1) (Q170 supports RAID 0, 1)

HPCIE-Q170

Half-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Two 260-pin 1867/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 32 GB memory
Two 260-pin 1867/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 32 GB memory
1 x VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485 4 x USB 2.0 (by pin header)
2 x SATA 6Gb/s (SATA0, SATA1) (Q170 supports RAID 0, 1)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485 4 x USB 2.0 (by pin header)
2 x SATA 6Gb/s (SATA0, SATA1) (Q170 supports RAID 0, 1)
HPCIE-Q470 Half-size PICMG 1.3 CPU Card

HPCIE-Q470

Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)
16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4
16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
On Board
On Board
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA

Backplane

IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

BP-10S

10-slot backplane with ten ISA slots
ISA Slot:10
ISA Slot:10

BP-3S

3-slot backplane with three ISA slots
ISA Slot:3
ISA Slot:3

BP-4S

4-slot backplane with four ISA slots
ISA Slot:4
ISA Slot:4

BP-5S

5-slot backplane with firve ISA slots
ISA Slot:5
ISA Slot:5

BP-6S

6-slot backplane with six ISA slots
ISA Slot:6
ISA Slot:6

BP-7S

7-slot backplane with seven ISA slots
ISA Slot:7
ISA Slot:7

BP-8S

8-slot backplane with eight ISA slots
ISA Slot:8
ISA Slot:8

HPE-5S1

5-slot backplane with four PCI slots
PCI Slot:4
PCI Slot:4

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:4
PCIe x 4:1
PCI Slot:4

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)
PCIe x 16:1
PCI Slot:2
PCIe x 16:1
PCI Slot:2

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI
PCIe x 8:2
PCI Slot:4
PCIe x 8:2
PCI Slot:4

IP-10S

10-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5
PCI Slot:4
ISA Slot:5

IP-3S

3-slot backplane with two PCI slots
PCI Slot:2
PCI Slot:2

IP-5SA2

5-slot backplane with four PCI slots
PCI Slot:4
PCI Slot:4

IP-6S

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2
PCI Slot:3
ISA Slot:2

IP-6SA

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2
PCI Slot:3
ISA Slot:2

PCI-10S

10-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5
PCI Slot:4
ISA Slot:5

PCI-12S

12-slot backplane with four PCI slots and seven ISA slots
PCI Slot:4
ISA Slot:7
PCI Slot:4
ISA Slot:7

PCI-14S

14-slot backplane with four PCI slots and nine ISA slots
PCI Slot:4
ISA Slot:9
PCI Slot:4
ISA Slot:9
PCI-5S2A backplane

PCI-5S2A

5-slot ATX power backplane with four PCI slots and one ISA slot
PCI Slot:4
ISA Slot:1
PCI Slot:4
ISA Slot:1

PCI-5SD6

2U chassis backplane with four PCI slots
PCI Slot:L2+R2
PCI Slot:L2+R2

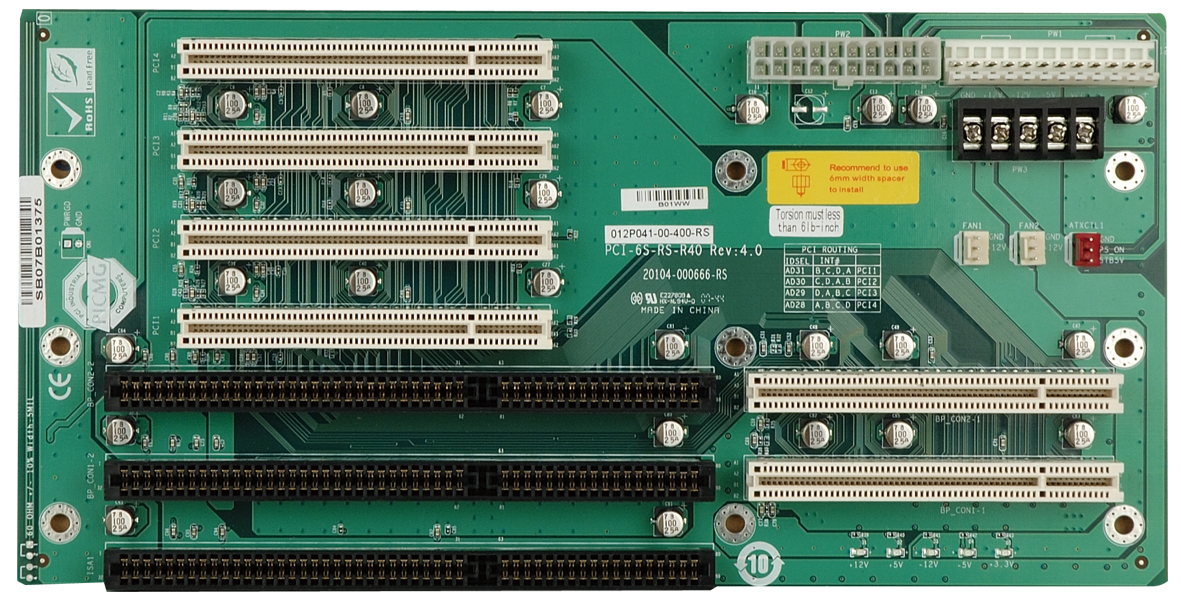

PCI-6S

6-slot backplane with four PCI slots and two ISA slots
PCI Slot:4
ISA Slot:2
PCI Slot:4
ISA Slot:2

PCI-6SD

2U chassis backplane with two PCI slots and two ISA slots
PCI Slot:L1+R1
ISA Slot:L1+R1
PCI Slot:L1+R1
ISA Slot:L1+R1

PCI-7S

7-slot backplane with four PCI slots and three ISA slots
PCI Slot:4
ISA Slot:3
PCI Slot:4
ISA Slot:3

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-2SD1

2-slot backplane with one PCIe slot
PCIe x 16:1
PCIe x 16:1

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot
PCIe x 16:1
PCIe x 4:1
PCI Slot:1
PCIe x 16:1
PCIe x 4:1
PCI Slot:1

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size
PCIe x 16:1
PCIe x 4:1
PCI Slot:2
PCIe x 16:1
PCIe x 4:1
PCI Slot:2

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3
PCIe x 16:1
PCIe x 1:3

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:2
PCIe x 16:1
PCIe x 1:2
PCI Slot:2

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots
PCIe x 16:1
PCIe x 4:1
PCI Slot:3
PCIe x 16:1
PCIe x 4:1
PCI Slot:3

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3
PCIe x 16:1
PCIe x 1:3

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots
PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2
PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:3
PCIe x 16:1
PCIe x 1:2
PCI Slot:3

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:3
PCIe x 16:1
PCIe x 1:3
PCI Slot:3

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:3
PCIe x 16:1
PCIe x 1:4
PCI Slot:3

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:8
PCIe x 16:1
PCIe x 1:3
PCI Slot:8

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS
PCIe x 4:5
PCIe x 4:5

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS
PCIe x 8:1
PCIe x 4:3
PCI Slot:3
PCIe x 8:1
PCIe x 4:3
PCI Slot:3

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis
2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card
2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card
2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S
2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS
PCIe x 8:1
PCIe x 1:12
PCIe x 8:1
PCIe x 1:12

Industrial Motherboard

IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
KINO-EHL-J6412 mini-itx motherboard supports Intel® Elkhart Lake Celeron® on-board SoC

KINO-EHL-J6412

Mini-ITX SBC supports Intel® Elkhart Lake Celeron® on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display with HDMI, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC input and RoHS
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)
External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)
1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (PCIe x2 / USB 2.0)
1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (PCIe x2 / USB 2.0)

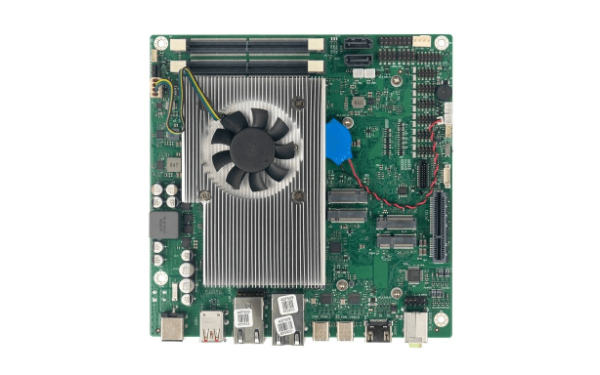

IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN

KINO-TGL-U

Thin Mini-ITX SBC supports Intel® Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI, DP, iDPM, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen2, M.2 and RoHS
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 64 GB)
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 64 GB)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)
External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)
1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/2280 M-key slot (PCIe x2)
1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/2280 M-key slot (PCIe x2)
IMBA-Q471 ATX Industrial Motherboard

IMBA-Q471

ATX Motherboard Supports 10 th / 11 th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Displays, Triple 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI (up to 4096 x 2304 @ 30 Hz)
Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI (up to 4096 x 2304 @ 30 Hz)
External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)
External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)
2 x PCIe Gen3 x16 (x8 signal)
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1
M.2 M key (2242/2280) with PCIe x2 & SATA signal
2 x PCIe Gen3 x16 (x8 signal)
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1
M.2 M key (2242/2280) with PCIe x2 & SATA signal
KINO-DH420 Mini-ITX SBC

KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)
Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)
External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)
1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)
IMBA-H420 ATX Industrial Motherboard

IMBA-H420

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2160@30Hz)
Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2160@30Hz)
External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)
External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)
1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI
1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI
IMBA-Q470 ATX Industrial Motherboard

IMBA-Q470

ATX motherboard supports LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin,P=2.0)
3 x RS-232 (2x5pin,P=2.54)
External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin,P=2.0)
3 x RS-232 (2x5pin,P=2.54)
2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)
2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)
KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor

KINO-KX

Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)
1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)
● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s
● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s
● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)
● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

IMBA-C2460

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor per Intel® C246, DDR4, triple displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU: LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

Chipset: Intel® C246
CPU: LGA1151 Intel® 8th/9th Generation Xeon® E, Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

Chipset: Intel® C246
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB (ECC&non-ECC support)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal Displayport (up to 4096 x 2304@60Hz)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal Displayport (up to 4096 x 2304@60Hz)
*External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
1 x RS-232
2 x USB 3.2 Gen 1 (5Gb/s)
1 x PS/2 KB/MS
2 x USB 2.0

*Internal I/O Interface
1 x 180º Displyport
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
*External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
1 x RS-232
2 x USB 3.2 Gen 1 (5Gb/s)
1 x PS/2 KB/MS
2 x USB 2.0

*Internal I/O Interface
1 x 180º Displyport
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
*Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
*Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)
● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)
● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)
● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)
● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI
● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot
˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485
* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485
* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)
* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)
* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)
● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)
● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)
● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
IMBA-Q370 ATX Industrial Motherboard

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)
● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

KINO-DAL

Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with HDMI/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Two 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
Two 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
Triple independent display
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 3840x2160@30Hz)
Triple independent display
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 3840x2160@30Hz)
- External I/O Interface
4 x USB 3.0
2 x RS-232/422/485
- Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x MicroSD card slot
1 x M.2 (B key) (2242, colay SATA1, with USB signal)
1 x USB 2.0 (180° Type-A)
2 x SATA 6Gb/s with 12/5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
- External I/O Interface
4 x USB 3.0
2 x RS-232/422/485
- Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x MicroSD card slot
1 x M.2 (B key) (2242, colay SATA1, with USB signal)
1 x USB 2.0 (180° Type-A)
2 x SATA 6Gb/s with 12/5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
- Expansion
1 x PCIe x1 card slot
1 x M.2 B key (SATA & USB 2.0)
1 x Full/Half-size PCIe Mini card slot
- Expansion
1 x PCIe x1 card slot
1 x M.2 B key (SATA & USB 2.0)
1 x Full/Half-size PCIe Mini card slot
gKINO-DMF mini-itx Industrial Motherboard

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output
1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output
IMBA-H110 ATX Industrial Motherboard

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3, Celeron® and Pemtium® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)
Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot
Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s
1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s
Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)
Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)
Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot
Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot
KINO-DQM170 Industrial Motherboard

KINO-DQM170

Mini-ITX SBC supports 6th Intel® Core™ Mobile CPU
Intel® QM170
6th generation Intel® Core™ mobile processor
Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W)
Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W)
Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)
Intel® QM170
6th generation Intel® Core™ mobile processor
Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W)
Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W)
Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported
(system max. 64 GB)
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported
(system max. 64 GB)
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x KB/MS (1x6 pin, P=2.00)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
1 x KB/MS (1x6 pin, P=2.00)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
Expansion:
1 x Full-size PCIe Mini (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini
1 x PCIe x16 slot
Expansion:
1 x Full-size PCIe Mini (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini
1 x PCIe x16 slot

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)
Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485
2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1
IMBA-Q170 ATX Industrial Motherboard

IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT
4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)
Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

IMB-Q870

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150
Intel® Q87
LGA1150
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
HDMI (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
HDMI (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
KB/MS
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
KB/MS
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
1 x PCI slot
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
1 x PCI slot

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0
8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

IMBA-Q870

ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150 4th generation
Intel® Q87
LGA1150 4th generation
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
HDMI (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
HDMI (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
4 x PCI slots
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
4 x PCI slots

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0
1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)
Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)
IMBA-C2260 ATX Industrial Motherboard

IMBA-C2260

ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron®
Intel® C226
LGA1150
Intel® C226
LGA1150
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC
unbuffered DIMMs support up to 32GB
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC
unbuffered DIMMs support up to 32GB
VGA (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
VGA (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
2 x USB 2.0
4 x USB 3.0
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
2 x USB 2.0
4 x USB 3.0
1 x I²C
9 x RS-232
1 x RS-422/485
2 x USB 3.0
11 x USB 2.0
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x PS/2 KB/MS
1 x TPM connector (2x10 pin)
9 x RS-232
1 x RS-422/485
2 x USB 3.0
11 x USB 2.0
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x PS/2 KB/MS
1 x TPM connector (2x10 pin)

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0
2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1
Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)
Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

Embedded Board

IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
WAFER-EHL-J6412_Embedded_Board supports Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
icon-new

WAFER-EHL-J6412

3.5" SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, 0°C ~60°C
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz support up to 8 GB
Onboard LPDDR4x-3200MHz support up to 8 GB
Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)
External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)
1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)
IEI WAFER-TGL-U Embedded Board

WAFER-TGL-U

3.5" SBC supports Intel® Tiger Lake-UP3 Core I™ Celeron® Proccessor, with HDMI, DP, iDPM, triple 2.5 GbE Lan port, USB 3.2, M.2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~60°C
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)
External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)
WAFER-JL Embedded Board

WAFER-JL

3.5" SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor with Dual Displays, DDR4, Triple Intel® 2.5 GbE, USB3.2, M.2, SATA, COM, SoC, RoHS
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4
Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4
External I/O Interface:
2 x USB 3.2 Gen2
Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC
External I/O Interface:
2 x USB 3.2 Gen2
Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC
1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces
1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces

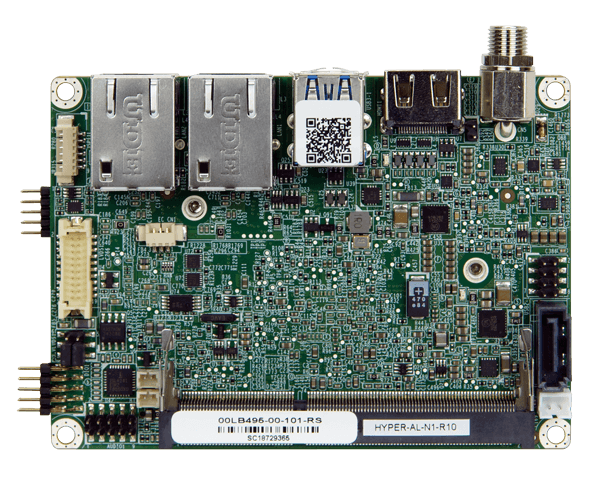

HYPER-AL Embedded Board

HYPER-AL

Pico-ITX SBC supports 14nm Intel® Apollo Lake Celeron® N3350 on-board SoC with DDR3L, HDMI, LVDS, dual GbE, USB 3.2 Gen 1, SATA, M.2
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
One 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
(system max. 8GB)
One 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
(system max. 8GB)
1 x HDMI
1 x LVDS (2x10 pin, single channel, 24bit)
1 x HDMI
1 x LVDS (2x10 pin, single channel, 24bit)
* External I/O Interface
2 x USB3.0 (on rear I/O)
* Internal I/O Interface
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6Gb/s (w/ 5V SATA PWR)
2 x USB 2.0 (2 by pin header) (2x4 pin, P=2.0)
* External I/O Interface
2 x USB3.0 (on rear I/O)
* Internal I/O Interface
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6Gb/s (w/ 5V SATA PWR)
2 x USB 2.0 (2 by pin header) (2x4 pin, P=2.0)
* Expansion
1 x M.2 A key 2230 (PCIe, USB)
1 x M.2 B key 2242 (USB, SATA)
* Expansion
1 x M.2 A key 2230 (PCIe, USB)
1 x M.2 B key 2242 (USB, SATA)

HYPER-BT

Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
(J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
(J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
Dual independent display
1 x VGA (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual independent display
1 x VGA (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
2 x Internal USB 2.0
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
2 x Internal USB 2.0
1 x USB 2.0
1 x USB 3.0
HYPER-BW Embedded Board

HYPER-BW

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Atom® x5-E8000 on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Atom® x5-E8000 on-board SoC
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
support up to 8 GB
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
support up to 8 GB
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz)
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz)
1 x Internal RS-232
2 x Internal USB 2.0
RS-232
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
2 x Internal USB 2.0
RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x M.2 2242 (B key)
Expansion:
1 x M.2 2242 (B key)

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)
Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-LX-800

EPIC SBC with AMD LX800 CPU
AMD Geode LX800 + AMD CS5536
AMD Geode LX800 + AMD CS5536
One 200-pin 400/333MHz DDR SDRAM
SO-DIMM Supported (System max. 1GB)
One 200-pin 400/333MHz DDR SDRAM
SO-DIMM Supported (System max. 1GB)
VGA integrated in AMD LX800
24-bit single-channel TTL
18-bit single-channel LVDS
VGA integrated in AMD LX800
24-bit single-channel TTL
18-bit single-channel LVDS
5 x Internal RS-232
4 x Internal USB 2.0
1 x LPT
1 x RS-232
4 x USB 2.0
5 x Internal RS-232
4 x Internal USB 2.0
1 x LPT
1 x RS-232
4 x USB 2.0
Expansion:
1 x PC/104-Plus
Expansion:
1 x PC/104-Plus

NANO-QM871-i1

EPIC SBC supports 4th Generation Intel® Mobile Processor
Intel® QM87
On board
Intel® QM87
On board
1 x 204-pin 1600/1333MHz dualchannel
DDR3/DDR3L SO-DIMM
(system max. 8GB)
1 x 204-pin 1600/1333MHz dualchannel
DDR3/DDR3L SO-DIMM
(system max. 8GB)
Dual display supported
1 x VGA
2 x HDMI
1 x 18/24-bit dual-channel LVDS
Dual display supported
1 x VGA
2 x HDMI
1 x 18/24-bit dual-channel LVDS
2 x RS-232
1 x RS-422/485
4 x USB 2.0
2 x USB 3.0
2 x RS-232
1 x RS-422/485
4 x USB 2.0
2 x USB 3.0
4 x USB 2.0
2 x USB 3.0
2 x RS-232
1 x RS-422/485
1 x PS/2 KB/MS
4 x USB 2.0
2 x USB 3.0
2 x RS-232
1 x RS-422/485
1 x PS/2 KB/MS

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
3 x Internal USB 2.0
4 x USB 3.0
3 x Internal USB 2.0
4 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot
Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

NANO-ULT5

EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C
*Intel® Celeron® processor 4305UE
*Intel® Core™ i3-8145UE
*Intel® Core™ i5-8365UE
*Intel® Core™ i7-8665UE
*Intel® Celeron® processor 4305UE
*Intel® Core™ i3-8145UE
*Intel® Core™ i5-8365UE
*Intel® Core™ i7-8665UE
Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB
Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB
Triple Independent Displays :
1 x HDMI up to 3840x2160@60Hz
1 x DP up to 3840x2160@60Hz
1 x Internal LVDS Up to 1920x1200@60Hz
Triple Independent Displays :
1 x HDMI up to 3840x2160@60Hz
1 x DP up to 3840x2160@60Hz
1 x Internal LVDS Up to 1920x1200@60Hz
1 x RS-232
4 x USB 3.1 Gen2
2 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x TPM (2x10 pin, p=0.5)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
1 x SMBus 1x4 pin
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
1 x M.2 slot with 2280 M key
1 x SIM card
1 x RS-232
4 x USB 3.1 Gen2
2 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x TPM (2x10 pin, p=0.5)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
1 x SMBus 1x4 pin
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
1 x M.2 slot with 2280 M key
1 x SIM card
EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C
EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)
Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)
1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)
1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
1 x RS-422/485
2 x USB 2.0
1 x LPT
2 x RS-232
1 x RS-422/485
2 x USB 2.0
1 x LPT
2 x RS-232
Expansion:
1 x PCI-104
Expansion:
1 x PCI-104

PM-LX2

AMD Geode™ LX 800 CPU on-board PC/104 Module
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
1 x LPT
2 x RS-232
1 x RS-422/485
2 x USB 2.0
1 x LPT
2 x RS-232
1 x RS-422/485
2 x USB 2.0
Expansion:
1 x PC/104
Expansion:
1 x PC/104

WAFER-AL

3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC with DP++/VGA/LVDS/iDP support
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ E3950 on-board SoC
*Intel® Atom™ E3940 on-board SoC
*Intel® Atom™ E3930 on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ E3950 on-board SoC
*Intel® Atom™ E3940 on-board SoC
*Intel® Atom™ E3930 on-board SoC
One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB
One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB
Triple independent display
1 x DP++ (up to 4096x2160@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP (colay with VGA, support by request)
Triple independent display
1 x DP++ (up to 4096x2160@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP (colay with VGA, support by request)
2 x PCIe GbE LAN Ethernet Realtek RTL8111 Controller
1 x Front audio (2x5 pin)
2 x RS-232 (1x9 pin, P=1.25)
2 x RS-232/422/485 (1x9 pin, P=1.25)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (External)
1 x SMBus (1x4 pin, P=2.0)
1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
1 x 8-bit digital I/O (2x5 pin)
2 x PCIe GbE LAN Ethernet Realtek RTL8111 Controller
1 x Front audio (2x5 pin)
2 x RS-232 (1x9 pin, P=1.25)
2 x RS-232/422/485 (1x9 pin, P=1.25)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (External)
1 x SMBus (1x4 pin, P=2.0)
1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
1 x 8-bit digital I/O (2x5 pin)
3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC
with DP++/VGA/LVDS/iDP support, Dual PCIe GbE, USB 3.0, PCIe Mini with
mSATA support, SATA 6Gb/s, COM, Audio and RoHS
3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC
with DP++/VGA/LVDS/iDP support, Dual PCIe GbE, USB 3.0, PCIe Mini with
mSATA support, SATA 6Gb/s, COM, Audio and RoHS
WAFER-BT Embedded Board

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
Intel® Atom™/Celeron® on-board SoC
Intel® Atom™/Celeron® on-board SoC
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0
2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS
3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC
IIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
IIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
Dual independent dispaly
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Dual independent dispaly
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
1 x USB 2.0
1 x USB 3.0
1 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
2 x PCIe Mini slot
Expansion:
2 x PCIe Mini slot

WAFER-BW

3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB
Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x LAN: Realtek RTL8111GN
1 x 8-bit digital I/O (1x10 pin, P=1.25)
1 x Analog audio (2x5 pin)
2 x Internal RS-232/422/485(2 by pin header; 1x9 pin, P=1.25)
1 x eMMC4.51 (optional)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
1 x KB/MS (1x6 pin)
3 x RS-232 (1x9 pin, P=1.25)
1 x mSATA
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2 by pin header; 1x9 pin, P=1.25)
2 x LAN: Realtek RTL8111GN
1 x 8-bit digital I/O (1x10 pin, P=1.25)
1 x Analog audio (2x5 pin)
2 x Internal RS-232/422/485(2 by pin header; 1x9 pin, P=1.25)
1 x eMMC4.51 (optional)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
1 x KB/MS (1x6 pin)
3 x RS-232 (1x9 pin, P=1.25)
1 x mSATA
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2 by pin header; 1x9 pin, P=1.25)
Expansion:
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)
Expansion:
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)

WAFER-LX

3.5” SBC with on-board AMD Geode™ LX 800 Processor
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
One 200-pin 400/333MHz DDR SDRAM SODIMM slot
support up to 1GB
One 200-pin 400/333MHz DDR SDRAM SODIMM slot
support up to 1GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
1 x Internal RS-232
2 x Internal USB 2.0
1 x LPT
1 x RS-232
2 x USB 2.0
1 x RS-422/485
1 x Internal RS-232
2 x Internal USB 2.0
1 x LPT
1 x RS-232
2 x USB 2.0
1 x RS-422/485
Expansion:
1 x PC/104
Expansion:
1 x PC/104

WAFER-LX2

3.5” SBC with AMD Geode™ LX 800 Processor
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536
One 200-pin 400/333MHz DDR SDRAM SODIMM
slot support up to 1GB
One 200-pin 400/333MHz DDR SDRAM SODIMM
slot support up to 1GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
6 x Internal RS-232
1 x RS-232
4 x USB 2.0
1 x Internal RS-232/422/485
6 x Internal RS-232
1 x RS-232
4 x USB 2.0
1 x Internal RS-232/422/485
Expansion:
1 x PC/104 (ISA Bus)
Expansion:
1 x PC/104 (ISA Bus)

WAFER-ULT2-i1

3.5” SBC supports Intel® 22nm 4th/14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
5th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-5650U
*Intel® Core™ i5-5350U
*Intel® Core™ i3-5010U
*Intel® Celeron® processor 3765U

4th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-4650U
*Intel® Core™ i5-4300U
*Intel® Core™ i3-4010U
*Intel® Celeron® processor 2980U
5th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-5650U
*Intel® Core™ i5-5350U
*Intel® Core™ i3-5010U
*Intel® Celeron® processor 3765U

4th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-4650U
*Intel® Core™ i5-4300U
*Intel® Core™ i3-4010U
*Intel® Celeron® processor 2980U
Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots
support up to 16 GB
Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots
support up to 16 GB
Triple independent display
VGA (up to 2560x1600@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Triple independent display
VGA (up to 2560x1600@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
3 x Internal RS-232
2 x USB 3.0
3 x RS-232
2 x USB 2.0
3 x Internal RS-232
2 x USB 3.0
3 x RS-232
2 x USB 2.0
Expansion:
1 x Full-size PCIe Mini card slot (mSATA support)
Expansion:
1 x Full-size PCIe Mini card slot (mSATA support)
WAFER-ULT3 Embedded Board, Triple display with VGA/iDP, HDMI and LVDS selection

WAFER-ULT3

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support
6th generation Intel® mobile ULT processor
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
6th generation Intel® mobile ULT processor
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.

WAFER-ULT5

3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
*Intel® Core™ i7-8665UE 1.9 GHz
*Intel® Core™ i5-8365UE 1.6 GHz
*Intel® Core™ i3-8145UE 2.1 GHz
*Intel® Celeron® processor 4305UE
*Intel® Celeron® processor 4205U
*Intel® Core™ i7-8665UE 1.9 GHz
*Intel® Core™ i5-8365UE 1.6 GHz
*Intel® Core™ i3-8145UE 2.1 GHz
*Intel® Celeron® processor 4305UE
*Intel® Celeron® processor 4205U
Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB
Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB
Triple Independent Displays
2 x HDMI up to 40960x2160@30Hz
1 x Internal LVDS Up to 1920x1200@60Hz
Triple Independent Displays
2 x HDMI up to 40960x2160@30Hz
1 x Internal LVDS Up to 1920x1200@60Hz
4 x USB 3.1 Gen2
3 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x9 pin, P=1.25)
1 x USB 2.0 (2x4 pin, P=2.0)
1 x SATA 6G/s with 5V SATA power connector
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
4 x USB 3.1 Gen2
3 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x9 pin, P=1.25)
1 x USB 2.0 (2x4 pin, P=2.0)
1 x SATA 6G/s with 5V SATA power connector
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS

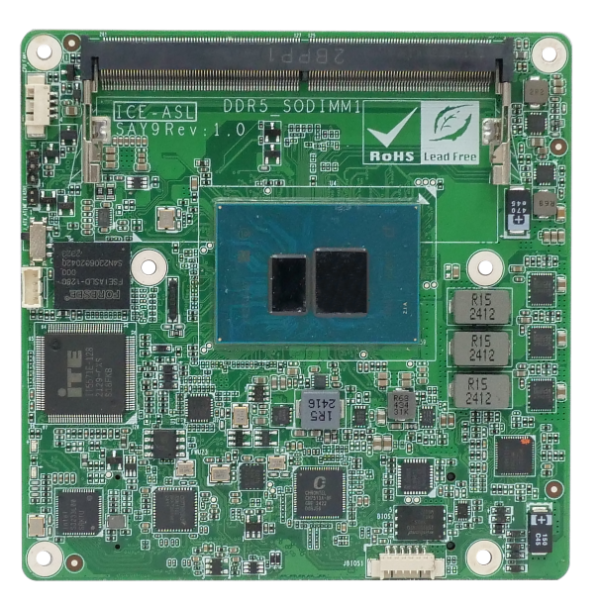

ETX / COM EXPRESS / Q7

IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
7 x USB 2.0
4 x USB 3.0
7 x USB 2.0
4 x USB 3.0
Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)
Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

ICE-DB-T6

Baseboard for COM Express Type 6 Module
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)
1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC
Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)
4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)
Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)
Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

ICE-DB-T7-i2

Base Board for COM Express Type 7 Module COM.0 Rev. 2.1
1 x VGA from iRIS-2400
1 x VGA from iRIS-2400
1 x PCIe x16 (x16 Gen 3 signal)
1 x PCIe x8 (x8 Gen 3 signal)
1 x PCIe x4 for 10GbE PHY card
1 x PCIe x4 (x4 Gen 2 signal)
1 x PCIe x4 (x1 Gen 2) (x4 signal option)
2 x PCIe x1 (x1 Gen 2)
2 x RS-232 from COM Express (only TX, RX, GND)
2 x RS-232 from SIO
2 x SATA port
4 x USB 3.0
1 x VGA
1 x RJ-45 connector
1 x PCIe x16 (x16 Gen 3 signal)
1 x PCIe x8 (x8 Gen 3 signal)
1 x PCIe x4 for 10GbE PHY card
1 x PCIe x4 (x4 Gen 2 signal)
1 x PCIe x4 (x1 Gen 2) (x4 signal option)
2 x PCIe x1 (x1 Gen 2)
2 x RS-232 from COM Express (only TX, RX, GND)
2 x RS-232 from SIO
2 x SATA port
4 x USB 3.0
1 x VGA
1 x RJ-45 connector
● ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7
● Support 1 x PCIe x8 for 10GbE PHY card
● Support 32 PCIe lanes
● Support PICMG EAPI R1.0

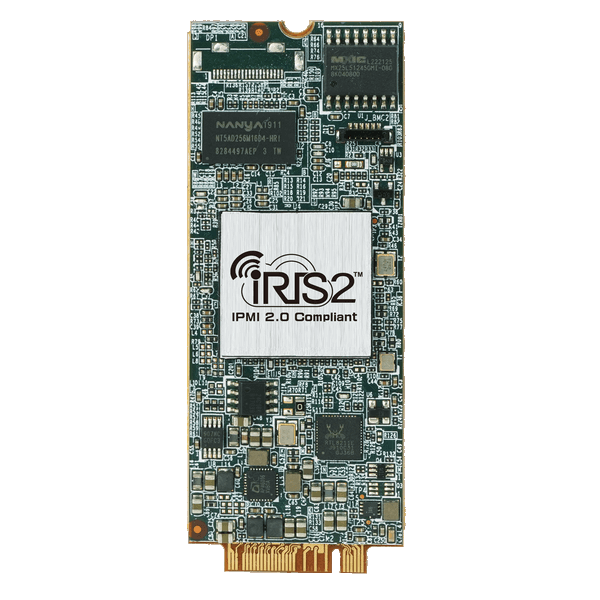

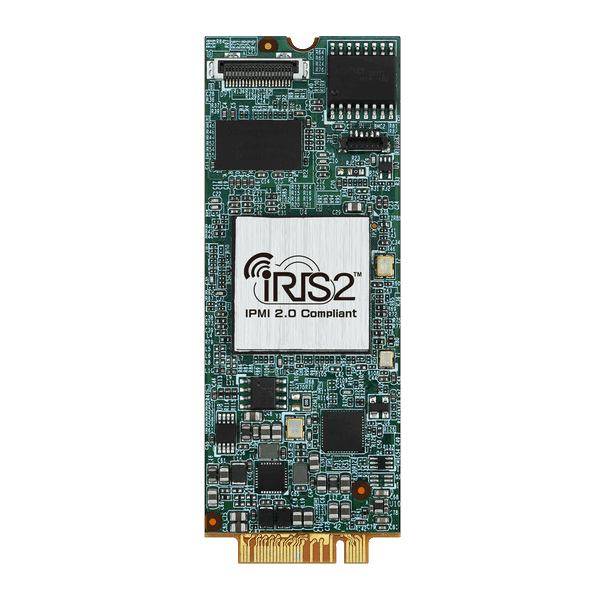

● Support IPMI 2.0 via iRIS-2400 module
● ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7
● Support 1 x PCIe x8 for 10GbE PHY card
● Support 32 PCIe lanes
● Support PICMG EAPI R1.0
● Support IPMI 2.0 via iRIS-2400 module

ICE-ULT3

COM Express Compact size Type 6 Module, 6th Generation Intel® Core™ ULT Processor
6th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
6th generation Intel® mobile ULT on-board SoC
*Intel® Core™ i7-6600U
*Intel® Core™ i5-6300U
*Intel® Core™ i3-6100U
*Intel® Celeron® processor 3955U
*Intel® Celeron® processor 3855U
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
support up to 32GB
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
support up to 32GB
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
(Option with 1 x CRT via CH7517) (up to 1920x1200@60Hz)
1 x DDI: Embedded DP (up to 3840x2160@60Hz)
(Option with 1 x Dual Channel LVDS 18/24 bit via CH7511B) (up to 1920x1200@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
(Option with 1 x CRT via CH7517) (up to 1920x1200@60Hz)
1 x DDI: Embedded DP (up to 3840x2160@60Hz)
(Option with 1 x Dual Channel LVDS 18/24 bit via CH7511B) (up to 1920x1200@60Hz)
2 x RS-232 (2-Wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board (with 4 x USB 2.0)
2 x SATA 6GB/s signal to base board
2 x RS-232 (2-Wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board (with 4 x USB 2.0)
2 x SATA 6GB/s signal to base board
Expansion
1 x PCIe x1 signal to base board (Via PCIe x16 channel)
8 x PCIe x1 signal to base board
Expansion
1 x PCIe x1 signal to base board (Via PCIe x16 channel)
8 x PCIe x1 signal to base board

iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0
1 x USB 3.0
6 x USB 2.0
1 x USB 3.0
Expansion:
3 x PCIe x1 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard
6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard
Accelerator Card

TPU Accelerator

Coral is a hardware and software platform for building intelligent devices with fast neural network inferencing. At the heart of our devices is the Edge TPU coprocessor. This is a small ASIC built by Google that's speciallydesigned to execute state-of-the-art neural networks at high speed, with a low power cost.
The Edge TPU is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt).
Mustang-T100-Google-TPU-accelerator-card

Mustang-T100-T5

Computing Accelerator Card with 5 x Google Coral edge TPU, PCIe Gen2 x4 interface

VPU Accelerator

Intel® Vision Accelerator Design with Intel® Movidius™ VPU
Mustang-M2BM AI Accelerator with Intel® Movidius™ Myriad™ X MA2485 VPU

Mustang-M2BM

Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22 mm x 80 mm, RoHS

Mustang-V100-MX4

Computing Accelerator Card with 4 x Intel® Movidius™ Myriad™ X MA2485 VPU, PCIe Gen 2 x 2 interface, RoHS

Mustang-V100-MX8

Computing Accelerator Card with 8 x Movidius Myriad X MA2485 VPU, PCIe gen2 x4 interface, RoHS

FPGA Accelerator

Intel® Vision Accelerator Design with Intel® Arria® 10 FPGA

Mustang-F100

PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface

PEMUX Series Backplane

The PEMUX allows users to deliver with maximum 56 lane of PCI Express 3.0 to PEMUX backplane while taking advantage of the speed and increased bandwidth of PCI Express

PEMUX-DB-10S1

1-Slot PEMUX backplane, 4 PCIe Gen 3.0 x8 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-DB-8S1

1-Slot PEMUX backplane, 2 PCIe Gen 3.0 x16 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-XEW1

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS
Add-on Card

LCD Converter Board

iDP (IEI Internal Display Port) connector is provided on the IEI products. Through the IEI iDP converter cards, the iDP connector can support different display specification, such as VGA, HDMI, DVI-D and LVDS.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

DP-DVI

DisplayPort to DVI Converter Board (for IEI iDP Connector)
1 x IEI iDP connector
1 x IEI iDP connector

DP-HDMI

DisplayPort to HDMI 1.3a Converter Board (for IEI iDP DP-HDMI-R10 connector)
IEI iDP connector
IEI iDP connector

DP-LVDS

DisplayPort to 24-bit Dual-channel LVDS Converter Board DP-LVDS-R10 (for IEI iDP Connector)
1 x IEI iDP connector
1 x IEI iDP connector

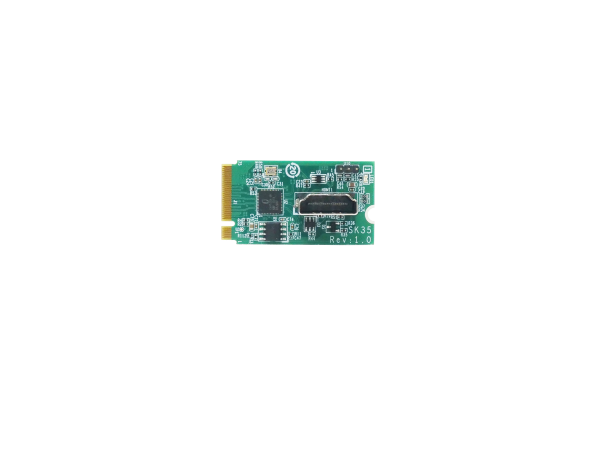

iDPM-eDP converter card
icon-new

iDPM-eDP

eDP to eDP Connector converter board (Only for IEI iDPM slot)
1 x eDP connect
1 x eDP connect

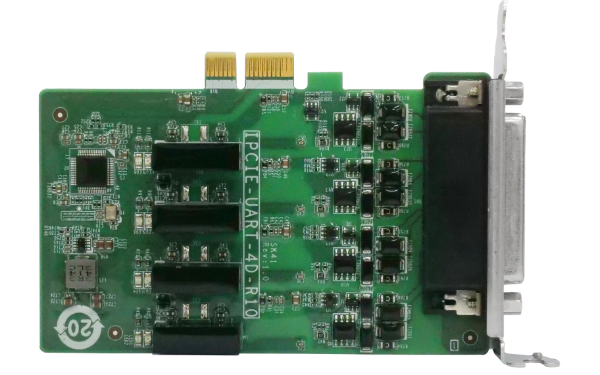

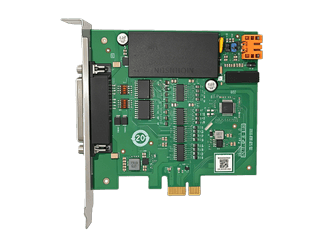

PCI/PCIe Expansion Card

IEI provides industrial communication cards for different expasion and application through ISA, PCI or PCI Express.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

GPOE-2P

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
1. PCI Express® x1 compliant
2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power

GPOE-4P

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
IEI GPOE-6P add-on card

GPOE-6P

PCI Express Power over Ethernet card, 6-port 1000 Base(T), 802.3at / bt compliant, RoHS
1. Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
2. Total 180 Watts power budget with maximum 90 Watts per port
3. PoE power sourced from 12 ~ 24VDC of ATX power
4. Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
5. Supports SW/RDK (IEI GPOE Management Software Tools)
6. Compatible with x4, x8 and x16 PCIe slots
7. IEEE 802.3at/bt PoE compliant
1. Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
2. Total 180 Watts power budget with maximum 90 Watts per port
3. PoE power sourced from 12 ~ 24VDC of ATX power
4. Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
5. Supports SW/RDK (IEI GPOE Management Software Tools)
6. Compatible with x4, x8 and x16 PCIe slots
7. IEEE 802.3at/bt PoE compliant
LAN-100G2SF-E810 Intel® Ethernet Controller E810 based Network Interface Card

LAN-100G2SF

Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.
Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.
Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.

Wireless Module

PCIe Mini card *Solid design with external antenna diversity *Low power consumption and high performance
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

EMB-WIFI-KIT

PCIe Mini card wireless LAN module kit
● Half size PCIe Mini card form factor
● High speed wireless connection
● Low power consumption and high performance
● Fully qualified Bluetooth 4.0
● Solid design with external antenna diversity
● Half size PCIe Mini card form factor
● High speed wireless connection
● Low power consumption and high performance
● Fully qualified Bluetooth 4.0
● Solid design with external antenna diversity

Mini-PCIe Module

PCI Express Mini Card *IO Interface converter *RoHs
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

IGCME-1300

PCIe Mini VGA Adapter Card,
PCI Express Mini card

1 x 10-pin (2x5) box header by 2.0mm pitch
PCI Express Mini card

1 x 10-pin (2x5) box header by 2.0mm pitch

MPCIE-3G

PCI Express Mini 3G Adapter Card, RoHS
PCI Express Mini 3G Adapter Card, RoHS
PCI Express Mini 3G Adapter Card, RoHS

MPCIE-DLAN

PCI Express Mini Dual Intel® GbE LAN Module, Full Size
PCI Express Mini GbE LAN Module
PCI Express Mini GbE LAN Module

MPCIE-LAN

PCI Express Mini GbE LAN Module, Full Size
PCI Express mini card
PCI Express mini card
MPCIE-UART-KIT01 Mini-PCIe Module

MPCIE-UART-KIT01

PCI Express Mini Card Supports Quad-port RS-232/422/485, Full Size
PCI Express Mini Card
PCI Express Mini Card

MPCIE-UART-KIT02

PCI Express Mini Card Supports Dual-port RS-232/422/485, 16-bit GPIO, Full Size
PCI Express Mini Card
PCI Express Mini Card

TPM Module

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

TPM-IN01

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration

TPM-IN02

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration

TPM-IN03

SPI TPM 2.0 module, software management tool, firmware v7.85
Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85
Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85
SPI TPM 2.0 module, software management tool, firmware v7.85
SPI TPM 2.0 module, software management tool, firmware v7.85

Audio Kit

Audio Board

CPU Socket / Chipset
Memory
Display
I/O / Slot
Features
AC-KIT-888S  Audio Kit

AC-KIT-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS
Realtek ALC888S HD Audio codec
Realtek ALC888S HD Audio codec
1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector
1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector
1. Realtek ALC888S HD Audio codec IC supported
2. Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
3. High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
4. Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
5. Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
6. All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
7. All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
8. Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
9. CE/FCC compliant
1. Realtek ALC888S HD Audio codec IC supported
2. Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
3. High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
4. Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
5. Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
6. All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
7. All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
8. Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
9. CE/FCC compliant
0
