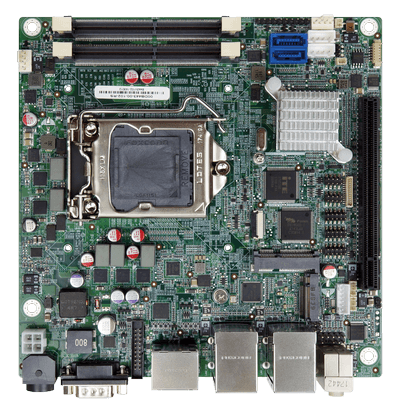

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

  • Overview

    ● LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pemtium® processor
    ● Dual-channel DDR4 2133MHz
    ● Support HDMI, DP++
    ● Support M.2 B key, PCIe mini
    ● Support USB 3.0 and SATA 6Gb/s
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      BIOS
      BIOS UEFI BIOS
      Dimensions
      Dimensions 170mm x 170mm
      Display
      Display Output Dual independent display
      1 x HDMI (up to 3840x2160@60Hz)
      1 x DP++ (up to 3840x2160@60Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -20°C~60°C
      Storage Temperature -30°C ~ 70°C
      Expansion Slots
      Expansion Slots 1 x PCIe x16
      1 x M.2 M key (2280, Gen2 PCIe x2 only)
      1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
      I/O Interface
      Audio Realtek ALC662 HD codec supports 5.1-channel
      2 x Audio jacks (line-out, mic-in) on rear IO
      1 x Front audio (2x5 pin)
      Digital I/O 8-bit Digital I/O (2x5 pin)
      Ethernet LAN1: Intel® I219LM PCIe controller
      LAN2: Intel® I211 PCIe controller
      Expansion 1 x Full-size PCIe Mini card slot (PCIe & USB)
      1 x M.2 B Key (SATA)
      1 x PCIe x16 slot (Gen2)
      I/O Interface
      I/O Interface 1 x Front panel(1x10 pin, Power LED, HDD LED, Power Button, Reset Button)
      1 x I²C(1x4 pin)
      2 x Internal RS-232(2x5 pin, P=2.0)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      1 x RS-232/422/485
      2 x SATA 6Gb/s(support Hot plug)
      1 x SMBus(1x4 pin)
      4 x USB 2.0(2x4 pin, P=2.0)
      4 x USB 3.0
      Power
      Power consumption 12V@12.16A (3.4GHz Intel® Core i7-6700 with two 2133MHz 16GB DDR4 memory)
      Power Supply 9 ~ 28V DC input Support ATX/AT mode
      1 x External DC Jack (4-pin DIN) 1 x Internal power connector (2x2 pin)
      System
      Chipset Intel® H110
      CPU LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
      Graphcis Controller Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
      Memory Max. Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
      Watchdog Timer
      Watchdog Timer Software programmable support 1~255 sec. system reset
      Weight
      Weight GW:900g / NW:400g
    • Ordering Info.

      Item No. Description
      KINO-DH110-R10 Mini-ITX Motherboard supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x KINO-DH110 single board computer

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA cable
