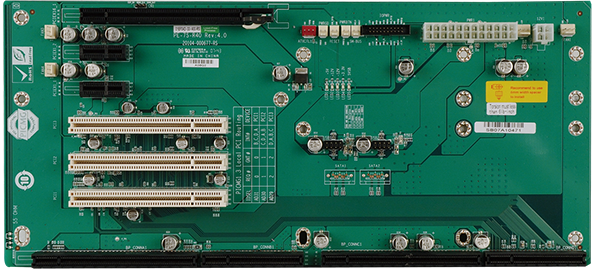

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots

Spec Item	Description
Chassis
Chassis	PAC-1700G
Expansion Slots
PCI Slot	3
PCIe x 1	2
PCIe x 16	1
PSU Type
PSU Type	24+4pin ATX
Total Slot
Total Slot	7
USB Connectors by Pin
USB Connectors by Pin	4

Spec Item

Description

Chassis

PAC-1700G

Expansion Slots

PCI Slot

PCIe x 1

PCIe x 16

PSU Type

24+4pin ATX

Total Slot

USB Connectors by Pin

Item No.	Description
PE-7S-R40	PICMG 1.3 ,7 Slots Backplane with 1PCIe x16 and 2PCIe x1 and 3PCI Slots,RoHS

Item No.

Description

PE-7S-R40

PICMG 1.3 ,7 Slots Backplane with 1PCIe x16 and 2PCIe x1 and 3PCI Slots,RoHS
