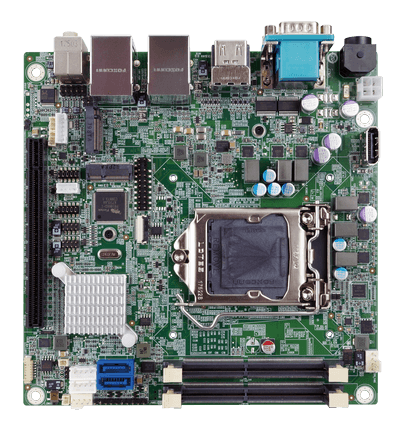

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

» LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
» Dual-channel DDR4 2666MHz
» Support internal DisplayPort & Dual HDMI™
» Support M.2 A Key for WLAN expansion & M key for storage

Hardware Spec.

System
CPU LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Chipset Intel® H310
Memory Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 400g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector (no RAID)
I/O Interface
Display Output 2 x HDMI™ :up to 4096x2160@30Hz
1 x Display Port :up to 4096x2160@60Hz(optional)
Ethernet 2 x LAN :LAN1: Realtek RTL8111H PCIe GbE controller
LAN2: Realtek RTL8111H PCIe GbE controller
Audio Description: Realtek ALC662 HD codec
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 2 x External RS-232
1 x Internal RS-232 :2x5 pin, p=2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, P=2.0
1 x PS/2
Expansion 1 x PCIe x16
2 x M.2(NGFF) :1 X M key(2280,Gen2 PCIe X 2 only),1 X A key(2230, PCLe X 1 & USB 2.0)
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@11.32A (Intel® Core™ i7-8700 up to 4.60 GHz CPU with two 8GB 2666MHz DDR4 memory)
Power Supply DC 12V input
1 x External DC jack (4-pin DIN)
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DH310-R10 Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x KINO-DH130 single board computer

  • 1 x SATA cable

  • 1 x I/O Shielding

  • 1 x QIG
