PCIe Expansion Riser Cards for IEI 2.5” SBC

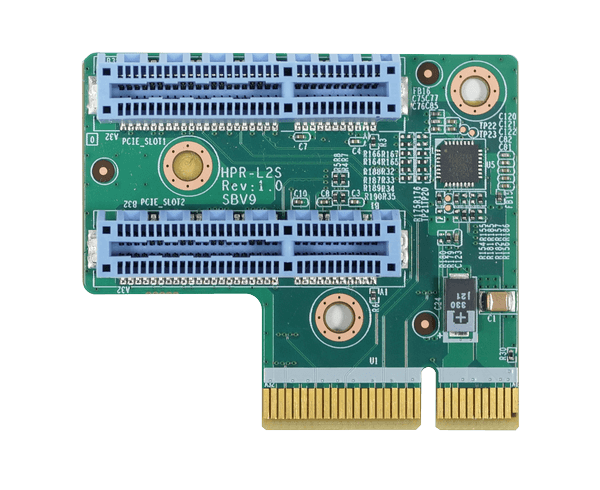

HPR-L2S Front

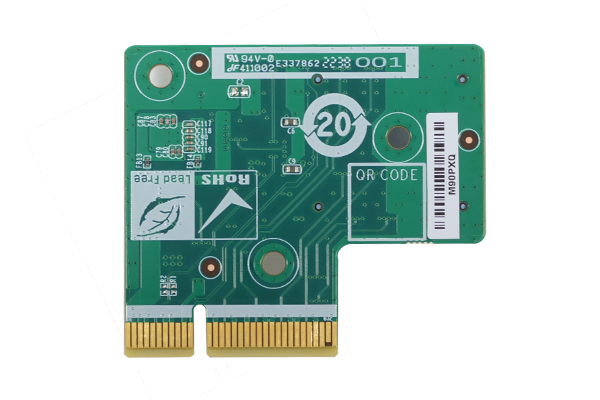

HPR-L2S Back
  • HPR-L2S Front
  • HPR-L2S Back
PCIe x4 to two PCIe x2,the left side

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 50 mm * 58 mm
I/O Interface
Expansion 2 x PCIe x4 : x2 signal
Operating Temperature 0°C~60°C
Storage Temperature -30°C~70°C
Humidity 5 ~ 95% non-condensing
Card Slot Interface
PCIe PCIe x4

Ordering Information

HPR-L2S-R10 PCIe x4 to two PCIe x2 riser card for HYPER on the left side

Package Contents

Package Content
  • 1 x HPR-L2S Riser Card

  • 1 x bracket
