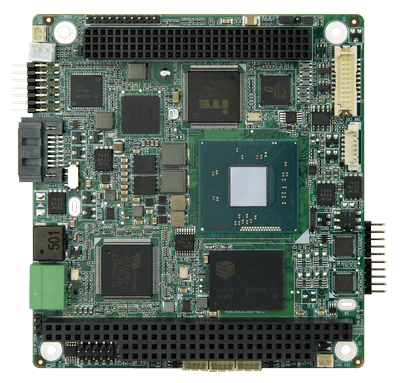

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS

  • Overview

    ● PC/104 form factor SBC supports 22nm Intel® Atom™ on-board SoC
    ● PC/104-Plus (ISA and PCI signal) function support
    ● 5V DC input solution
    ● Support 2 COM, PCIe Mini, USB and optional on-board SSD
    ● Dual display from VGA and LVDS
    ● Wide range temperature support from -40°C ~ 85°C (for E38xx series CPU)
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Features

    PM-BT single board computer banner
    PM-BT_single-board-computer-features
    PM-BT single board computer applications

    Dimension

    PM-BT single board computer dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      MemoryOne 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM
      Memory Max.8 GB
      (J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
      Physical Characteristics
      Dimensions (LxWxH) (mm)96 X 90
      Net Weight120
      Storage
      Storage1 x 2.5” SSD/HDD Bay On-board (optional, support by request)
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x LVDS :18/24-bit single-channel (2x10 pin)
      EthernetDescription: 1 x Intel® I210
      Power
      Power Consumption5V@1.70A (Intel® Celeron® J1900 CPU with 8GB memory )
      Power Supply5V DC input
      12V for fan, LVDS and PCI-104 plus
      » 5V for PCI-104 plus (1x3 pin, P=2.0)
      » 12V for PCI-104 plus (1x3 pin, P=2.0)
      3/5V jumper for PCI-104 plus
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature-20°C ~ 60°C (for J1900/N2930/N2807);
      -40°C ~ 85°C (for E38xx);
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Compatible Model
      MotherboardCE/FCC
    • Ordering Info.

      Item No. Description
      PM-BT-J19001-R10 PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
      PM-BT-N28071-R10 PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
    • Package Contents

      • 1 x PM-BT single board computer

      • 1 x SATA cable kit

      • 1 x COM port cable

      • 1 x Single-port USB cable

      • 1 x LAN cable

      • 1 x VGA cable
