gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor

  • Overview

    ● Mini ITX form factor with AMD Merlin Falcon processor with DDR4 memory
    ● Triple display via, HDMI 1.4, DP++
    ● M.2 B key support
    ● Full-size PCIe mini slot
  • Features

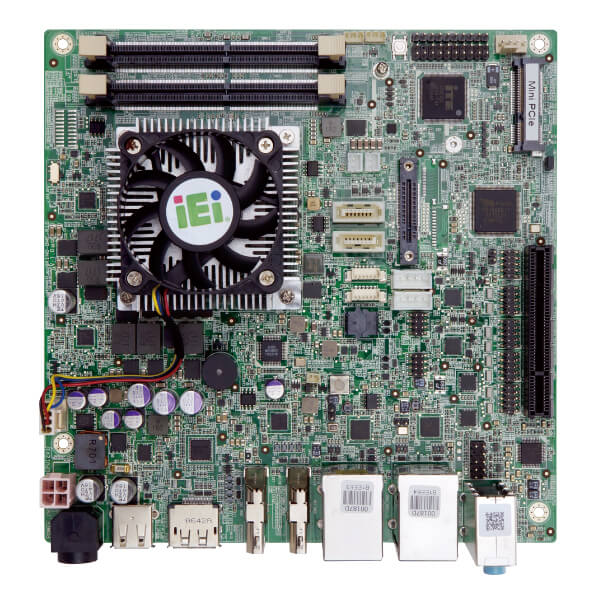

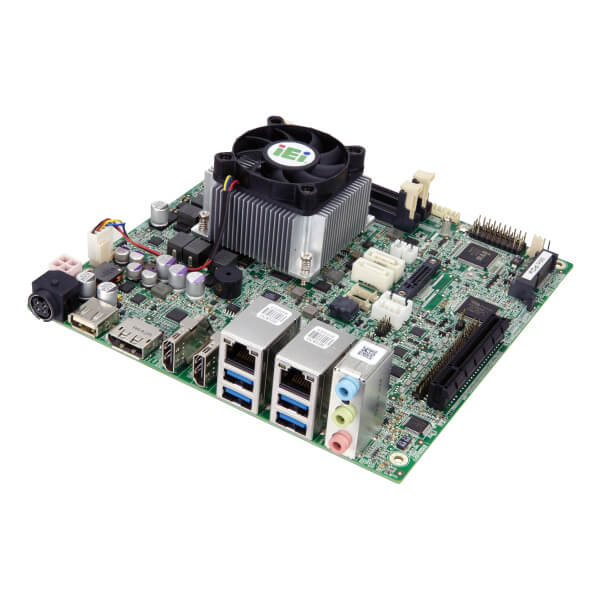

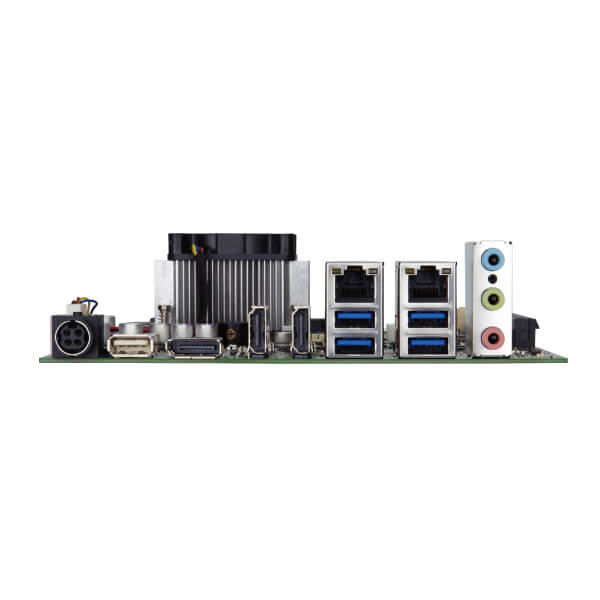

    gkino-dmf-single-board-computer-for-slot-machine
    gkino-dmf-single-board-computer-hardware
    gkino-dmf-single-board-computer-dimension

    IEI Innovative Gaming Solutions

    IEI provide a wide range of industrial computing products with high feasibility and reliability for gaming applications. Highly integrated CPU-on-module products, motherboards, systems and open frame monitors are suitable for wide applications in gaming market with high performance. We also offer various accessories for expansion.

    Download IEI Innovative Gaming Solutions Brochure

    Casino Machines single computer board

    Casino Machines

    The casino industry generates high revenues, and casinos are increasingly established worldwide. IEI offers products on Intel® and AMD® platforms. The KINO-DCM236 and the gKINO-DMF motherboards support high performance CPU and multiple display output. Their extra security features such as Intel® AMT support, reserved EEPROM, chassis intrusion detect pin and ECC support are adjustable for solutions in casino applications.

    Multiplayer Games

    The TANK-610-BW with multi-COM port and the IDS-300-BW with triple display are fulfilling the requirement for dart machines, multi-player game tables, and player machines. IEI ICE-ULT3 CPU on module with customized baseboard could even satisfy most of your security requests on gaming applications.

    Multiplayer Games single board computer
    Arcade Games single computer board

    Arcade Games

    Arcade games are always popular in young generation and evolving with new technology. IEI provides a wide range of products with multiple display output, graphics performance, and various OS support to meet the needs of speedy game developing. The KINO-DQM170 and tKINO-ULT3 motherboards with Core™ i CPU support are suitable for arcade games with their high performance CPU and rich display output ports.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      BIOS
      BIOSAMI BIOS
      CPU Cooler
      CPU Cooler1 x CPU smart fan (1x4 pin)
      Dimensions
      Dimensions170mm x 170mm
      Display
      Display OutputTriple Independent Display
      2 x HDMI 1.4 (up to 4096x2160@24Hz)
      1 x DP++ (up to 3840x2160@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating TemperatureStorage Temperature: -10°C ~ 70°C
      Operating Temperature: 0°C ~ 60°C
      I/O Interface
      AudioRealtek ALC662 HD audio codec
      2 x Audio jacks (line-out, mic-in) on rear IO
      1 x Front audio (2x5-pin)
      Digital I/O8-bit digital I/O (2x5 pin)
      EthernetDual GbE RTL 8111GN
      Expansion1 x PCIe x 8 slot
      1 x Full size PCIe Mini card slot
      I/O Interface◆External I/O Interface
      4 x USB 3.0
      1 x USB 2.0
      ◆Internal I/O Interface
      1 x MicroSD card slot
      2 x RS-232/422/485 (2x5 pin, P=2.0)
      2 x RS-232 (2x5 pin, P=2.0)
      2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
      4 x USB 2.0 (2x4 pin, P=2.0)
      2 x SATA with 5V/12V output
      I/O Interface
      I/O Interface1 x Front panel(2x7 pin, power LED, HDD LED, speaker, power button, reset button)
      1 x SMBus(1 x 4pin)
      2 x SATA 6Gb/s(with 5V/12V output)
      2 x Internal RS-232/422/485(2 x 5 pin,p=2.0)
      4 x Internal USB 2.0(2 x 4 pin,p=2.0)
      4 x Internal RS-232(2 x 5 pin,p=2.0)
      1 x I²C(1 x 4pin)
      Power
      Power consumption12V@5.54A (AMD RX-421BD 2.1GHz CPU with 2400 MHz 16GB DDR4 memory)
      Power JackSupport AT/ATX mode, 1 x External DC jack (4-pin DIN)
      Power Supply12V DC input, 1 x Internal power connector (2x2 pin)
      System
      CPUFP4 BGA supports AMD Merlin Falcon SoC
      RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
      RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
      Graphcis ControllerAMD Radeon HD 10000graphic,3rd Gen. graphic core,support DX 12, HSA 2.0
      UVD v6 decode for H.265 MPEG2/4, VC-1, MVC
      VCE v3.1 encode for H.254 VCE
      Memory Max.Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
      Watchdog Timer
      Watchdog TimerSoftware Programmable support 1~255 sec. system reset
      Weight
      Weight1100g / NW: 700g
    • Ordering Info.

      Item No. Description
      gKINO-DMF-216-R10Mini-ITX SBC supports AMD RX-216GD on board SoC(dual-core 1.6GHz, 15W), DDR4 ,triple independent displays,HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and RoHS
      gKINO-DMF-421-R10Mini-ITX SBC supports AMD RX-421BD on board SoC(quad-core 2.1GHz, 35W), DDR4 ,triple independent displays,HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and RoHS
    • Package Contents

      • 1 x gKINO-DMF single board computer with CPU cooler

      • 1 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
