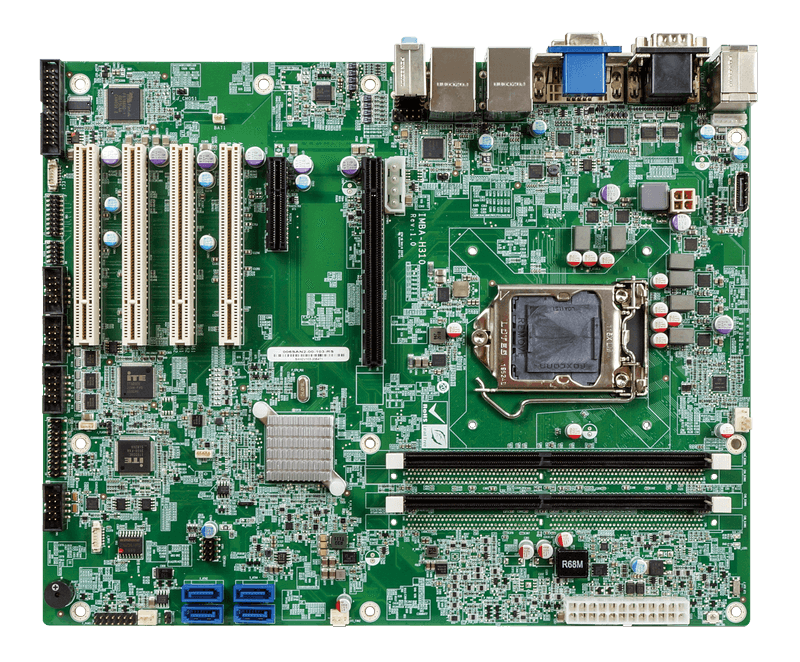

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

  • Overview
    ● LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
    ● Dual-channel DDR4 2666MHz
    ● Support dual displays with DVI-D/VGA/DP
    ● Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor ATX Motherboard
      System
      CPU LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
      Chipset Intel® H310
      Memory Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
      Memory Max. Up to 64GB
      Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
      2 x System fan connector (1x3 pin)
      Physical Characteristics
      Dimensions (LxWxH) (mm) 244mm x 305mm
      Net Weight GW:1200g / NW:700g
      Storage
      Storage 4 x SATA
      I/O Interface
      Display Output 1 x Display Port
      1 x DVI-D
      1 x VGA
      Ethernet 2 x LAN::
      LAN1: Intel® I219LM PCIe controller
      LAN2: Intel® I211 AT PCIe controller
      Audio 1 x Front Audio(2x5-pin)
      1 x Line in
      1 x Line out
      1 x Mic
      I/O Interface 1 x DIO: 8-bit digital I/O (2x5 pin)
      2 x External RS-232
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      3 x Internal RS-232(2x5 pin, P=2.54)
      1 x Internal RS-232/422/485(2x5 pin, P=2.54)
      2 x Internal USB 2.0(2x4 pin, P=2.54)
      1 x LPT(2x13 pin, P=2.54)
      1 x PS/2(1x6 pin)
      Expansion 4 x PCI Slot
      1 x PCIe x16(Gen3)
      1 x PCIe x4(Gen2)
      Other Features
      TPM 1 x TPM 2.0 connector (2x10 pin)
      Power
      Power Consumption 3.3V@0.39A, 5V@2.99A, 12V@3.08A, 5VSB@0.2A
      (Intel® Core™ i5-8500 up to 3.00 GHz CPU with 20 GB 2400/2133 MHz DDR4 memory)
      Power Supply ATX/AT power supply
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature -20°C ~ 60°C
      Storage Temperature -30°C ~ 70°C
      Humidity 5% ~ 95%, non-condensing
      Certifications
      Safety & EMC CE/FCC compliant

    • Ordering Info.

      Item No. Description
      IMBA-H310-R10 ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

    • Package Contents

      • 1 x IMBA-H310 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
