Overview
● DisplayPort to LVDS output● Supports 24-bit dual-channel up to 1920x1200 -
Specifications
-
Hardware Spec.
Spec Item Description Dimensions Dimensions 60 mm x 50 mm Display Display IC Chrontel - CH7511B (DP to LVDS) Display Input 1 x IEI iDP connector Display Output 1 x LVDS 24-bit dual channel Environment Humidity 5% ~ 95 non-condensing Operating Temperature -10°C ~ 60°C Features Features 1. DisplayPort to LVDS output
2. Supports 24-bit dual-channel up to 1920x1200 -
Ordering Info.

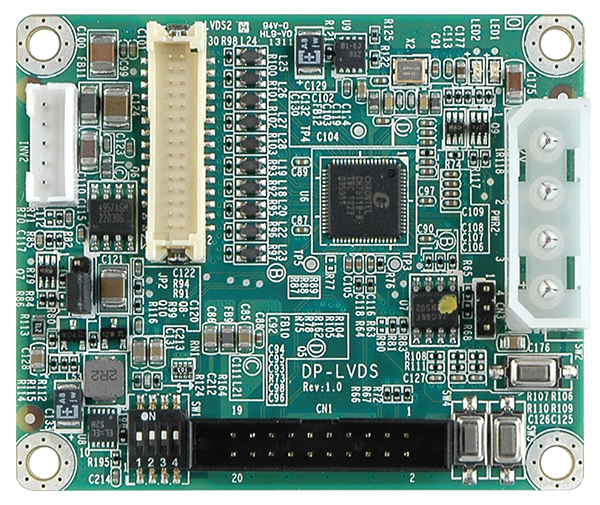

Item No. Description DP-LVDS-R10 DisplayPort to 24 bit dual channel LVDS converter board (For iEi IDP connector)
-
-
