• Overview

    ● Thin Mini-ITX form factor with 14nm Intel® Pentium®/Celeron® on-board SoC processor supports DDR3L memory
    ● Supports USB 3.0, two SATA 6Gb/s
    ● Triple independent display, supporting 4K resolution
    ● Supports IEI jumperless function
  • Features

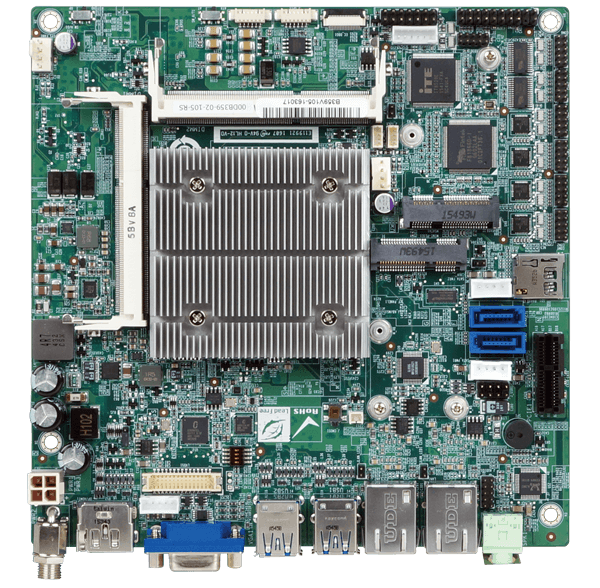

    tkino-bw-sbc
    tKINO-BW SBC IO

    Three Digital Display Interfaces

    3 independent displays under Window® 7 OS and up

    Dimensions

    tKINO-BW SBC Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
      MemoryTwo 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM
      Memory Max.8GB
      Physical Characteristics
      Net Weight400g
      Storage
      Storage2 x SATA :6Gb/s with 5V output
      1 x mSATA :colay SATA2
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet1 x Description: Dual Realtek RTL8111E PCIe GbE controller
      AudioDescription: Realtek ALC662 HD codec
      1 x Line out :on rear IO
      1 x Speaker :1x4 pin
      1 x Front Audio :2x5 pin
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.0
      2 x Internal RS-232/422/485 :2x5 pin, P=2.0
      2 x Internal USB 2.0 :2x4 pin, P=2.54
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      Expansion1 x PCIe x1
      1 x PCIe mini Card Slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption12V@1.61A (Intel® Celeron® N3710 CPU with two 4 GB 1600 MHz DDR3L memory)
      Power Supply1 x External DC power jack (ø5.5 mm)
      1 x Internal power connector (2x2 pin) Input Voltage Range: 9V ~ 30V
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      tKINO-BW-N2-R20 Thin Mini-ITX SBC supports Intel® Celeron® dual-core processor N3060 up to 2.48GHz (6W), VGA/LVDS/DP+HDMI, SATA, dual GbE, USB 3.0, HD Audio and RoHS
      tKINO-BW-N3-R20 Thin Mini-ITX SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W), VGA/LVDS/DP+HDMI, SATA, dual GbE, USB 3.0, HD Audio and RoHS
      tKINO-BW-N4-R20 Thin Mini-ITX SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W), VGA/LVDS/DP+HDMI, SATA, dual GbE, USB 3.0, HD Audio and RoHS
    • Package Contents

      • 1 x tKINO-BW single board computer with heatsink

      • 1 x I/O shielding

      • 1 x SATA cable

      • 1 x QIG
