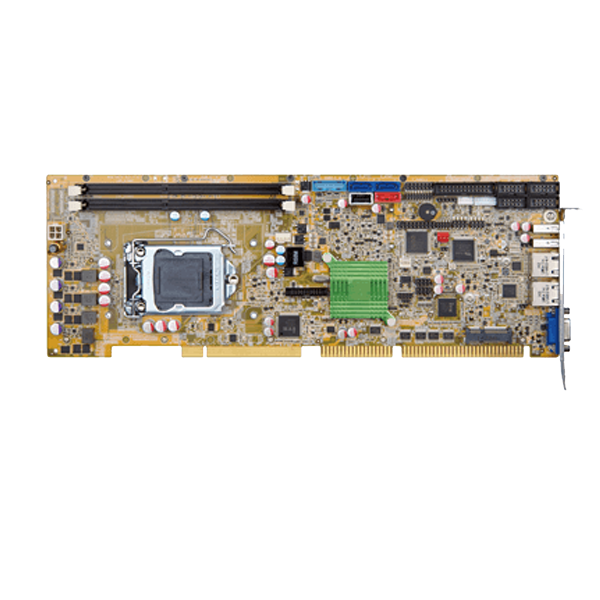

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,

  • Overview

    ● Full-size PICMG 1.0 with LGA 1150 Intel® CPU
    ● Two 1600/1333 MHz DDR3 SDRAM DIMM slots support up to 16 GB of memory
    ● Dual Intel® Gigabit Ethernet LAN controller
    ● SATA 6Gb/s and USB 3.0 supported
    ● IEI One Key Recovery solution for rapid OS backup and recovery
    ● TPM v1.2 hardware security function supported by TPM module
    ● Stiffener bars
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU Cooler CF-1150SB-R11
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -20°C ~ 60°C
      Expansion Slots
      Expansion Slots 1 x mSATA (SATA 3Gb/s)
      1 x PCIe Mini slot
      PCI and ISA signal via golden finger
      I/O Interface
      Audio 7.1-channel HD Audio supported by IEI AC-KIT-892HD kit
      Digital I/O 1 x 8-bit digital I/O (2x5 pin)
      Display Dual independent display
      VGA (up to 1920x1200@60 Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
      Ethernet LAN1: Intel® I217-LM Ethernet controller
      LAN2: Intel® I211-AT Ethernet controller
      I/O Interface
      I/O Interface 5 x Internal USB 2.0
      1 x Internal RS-422/485
      4 x Internal RS-232
      1 x VGA
      2 x Internal USB 3.0
      2 x LAN LED
      1 x LPT
      2 x USB 2.0
      1 x KB/MS
      Power consumption 5V@3.4A, 12V@0.36A, Vcore_12V@7.48A, 3.3V@1.42A, 5VSB@0.13A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      Storage 2 x SATA 6Gb/s
      1 x SATA 3Gb/s (Intel® H81 supports AHCI, no RAID)
      Chipset Intel® H81
      CPU 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      CPU Socket LGA1150
      Memory Max. Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      support up to 16 GB
      Watchdog Timer
      Watchdog Timer Software programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WSB-H810-R10 Full-size PICMG 1.0 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS
    • Package Contents

      • 1 x WSB-H810 single board computer

      • 2 x SATA cable

      • 1 x QIG
