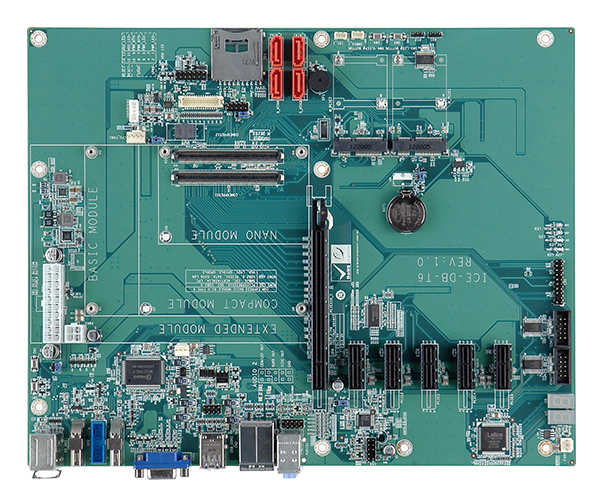

ICE-DB-T6

Baseboard for COM Express Type 6 Module

  • Overview

    ● Intel® 22nm Atom™ or Celeron® on-board SoC supported
    ● Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
    ● Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
    ● Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
    ● Optional soldered down 4 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)304.8 X 243.8
      Net Weight450g
      Storage
      Storage4 x SATA
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x VGA
      3 x Display Port :2 x real connectors, 1 x pin
      header
      1 x LVDS :18/24-bit single/dual-channel
      Ethernet1 x LAN
      AudioDescription: Realtek ALC892 HD Audio codec
      1 x Line in
      1 x Line out
      1 x Mic
      1 x Front Audio :2x5 pin
      I/O Interface2 x Internal RS-232
      4 x External USB 3.2 Gen1x1
      1 x PS/2
      Expansion1 x PCIe x16
      6 x PCIe x1
      2 x PCIe mini Card Slot :with USB
      Other Features
      TPM2x10 pin
      Power
      Power SupplySupport AT/ATX mode
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      ICE-DB-T6-R10 Base Board for COM Express Type 6 Module
