IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS

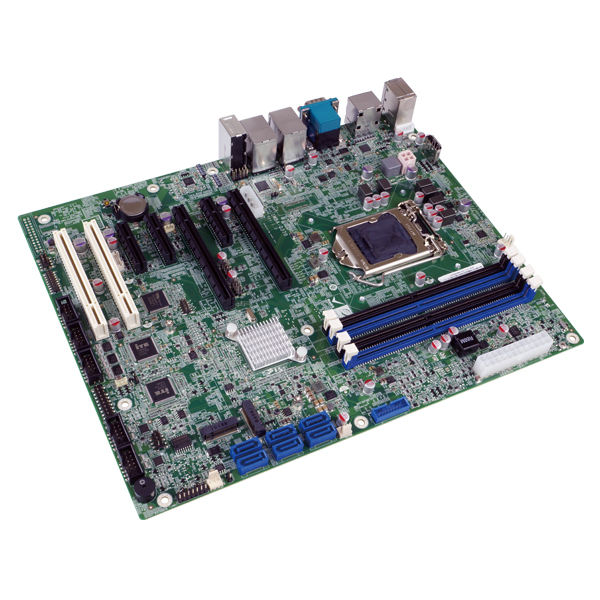

IMBA-Q370 ATX Industrial Motherboard

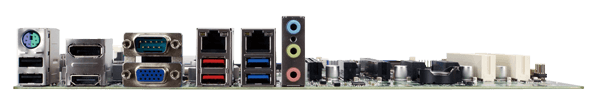

IMBA-Q370 ATX-motherboard IO

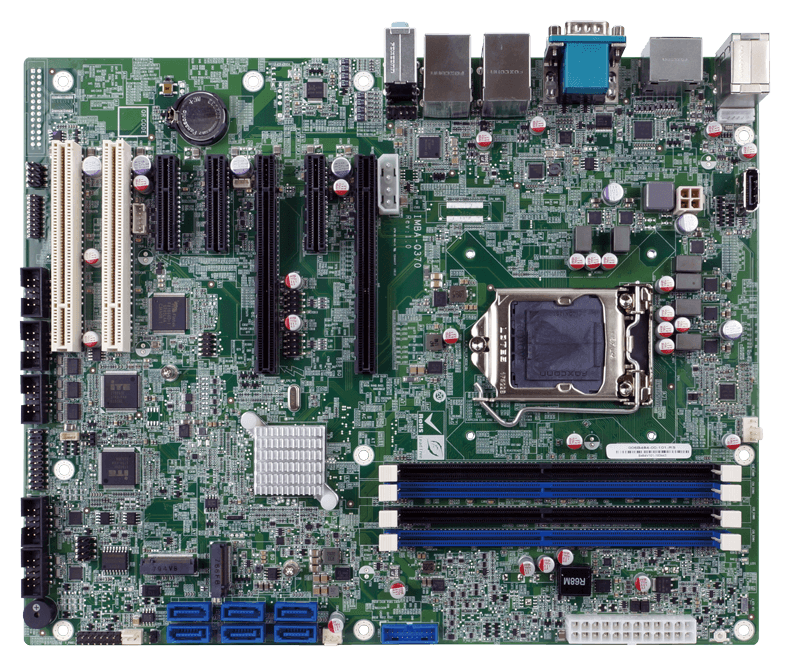

IMBA-Q370 ATX-motherboard
  • IMBA-Q370 ATX Industrial Motherboard
  • IMBA-Q370 ATX-motherboard IO
  • IMBA-Q370 ATX-motherboard
» LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
» Dual-channel DDR4 2666MHz
» Support VGA, HDMI & DP++
» Support M.2 A key for WLAN expansion, M key for storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

8th Generation Intel® Core™ Platform Overview

  • Additional performance with 1.37x better productivity and up to 6 processor cores vs 4th generation processors
  • Speed and versatility with USB-C and USB 3.2
  • Gen 11 graphics engine
    » 3 independent displays with audio stream
    » Display resolutions supporting up to 4K@60Hz/5K@30Hz
  • Security
    » Intel® Device Protection Technology with Boot Guard
    » Intel® Memory Protection Extensions (Intel® MPX)
    » Intel® Software Guard Extensions (Intel® SGX)
Additional Performance

Additional Performance

137% better productivity vs 4th Gen processors or 10% performance gain from 7th Gen processors.

Media/Video Experience

Media/Video Experience

High Dynamic Range (HDR) Rec.2020, HEVC 10-bit encode/ decode, VP9 10-bit decode, Chrome browser VP9 HW acceleration support.

New UX Capabilities

New UX Capabilities

Speed and versatility with USB-C / USB 3.2 (10 Gbps)

8th Generation Intel Core

Intel® Coffee Lake/Coffee Lake Refresh Graphics Support

Display Comparison

Time 2015 2016 2018 2019
Platform Name Skylake Kaby Lake Coffee Lake Coffee Lake Refresh
Graphics Gen9 graphics Intel® HD 510~530 Gen9 graphics Intel® HD 615~620 Gen9 graphics Intel® UHD Gen9.5 Intel® Graphics GT2
DirectX Support Direct 12/11.3 Direct 12/11.3 Direct 12/11.3 Direct 12/11.3
OpenGL Support 4.4 4.4 4.5 4.5
DisplayPort and 4K UHD Premium Content Support

DisplayPort & 4K UHD Premium Content Support

Intel® Coffee Lake/Coffee Lake Refresh OS Support

Type Operating System Support
Coffee Lake Coffee Lake Refresh Coffee Lake Coffee Lake Refresh
Microsoft Windows* 10 Enterprise & IOT Enterprise (64bit) Windows* 10 IoT Enterprise RS5 (64bit) Intel / Microsoft Intel / Microsoft
Linux Ubuntu Ubuntu*, SUSE, Red Hat* Enterprise (64bit) Open Source community/Canonical Ltd Canonical Ltd., Attachmate Group, Red Hat, and open source community
Yocto Yocto Project* BSP tool-based embedded Linux distribution (64bit) Yocto project community Intel, Yocto Project community
RTOS Wind River VxWorks Wind River VxWorks* 7 (64bit) Wind River systems Wind River systems
** Distributions supported depend on each CPU sku.

M.2 Expansion Slot

The M.2 form factor was borne out of the need for multiple options for small form factor cards, including SSDs in different sizes and with different capacities, and possibilities for extending capacities even further. With M.2 A Key and B Key expansion slot, IMBA-Q370 can support Bluetooth, WiFi and SSD storage.

M.2 Expansion Slot

Powerful Security Function - IEI TPM Expansion -

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

IEI TPM-IN02
IEI TPM-IN02
  • File & Folder En/De-cryption
  • Personal secure drive
  • Secure email
  • Key transferring
  • Security policy configuration
  • LPC interface

Product Overview

Product Overview
Product Overview

Application Field

Factory automation including CNC machine SCADA computer must be the most resilient computer. With expectation of 24/7/365 operation, the hardware and software must work together to handle any increased loads from additional machines, sensors and inputs. With the flexibility for expansion, reliability for storage and built-in, the manager can stop worrying about the control system and get on with production.

Application Field

Hardware Spec.

System
CPU LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® Q370
Memory Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 6 x SATA :6Gb/s(RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA :up to 1920x1080@60Hz
1 x HDMI :up to 4096x2304@30Hz
2 x Display Port :1 X DP++ (up to 4096x2304@60Hz);
1 X internal Displayport (up to 4096x2304@60Hz);
Ethernet 2 x LAN :LAN1 : Intel® I219LM PCIe controller with AMT 11.0 support
LAN2: Intel® I211AT PCIe controller
Audio Description: Realtek ALC662 HD codec
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 1 x External RS-232
3 x Internal RS-232 :25 in , p=2.54
2 x Internal RS-232/422/485 :2x5 pin, p=2.54
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.54
2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
2 x PS/2 :1 X 1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
Expansion 2 x PCIe x8
3 x PCIe x4
2 x PCI Slot
2 x M.2(NGFF) :1 x A key(2230/3030), 1 X M key(PCLe, USB, SATA)
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSV@3.4A (Intel® Core® i7-8700K up to 4.60 GHz CPU with 32GB 2600MHz DDR4 memory)
Power Supply Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-Q370-R20 ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMBA-Q370 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
