KINO-TGL-U

Thin Mini-ITX SBC supports Intel® Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI™, DP, iDPM, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen2, M.2 and RoHS

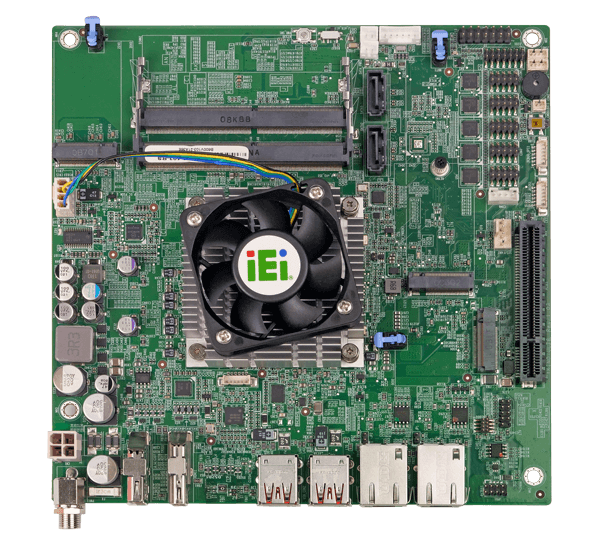

IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN

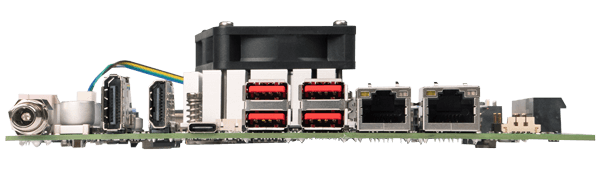

IEI KINO-TGL-U Mini-ITX Motherboard IO
IEI KINO-TGL-U Mini-ITX Motherboard inclined view
  • IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN
  • IEI KINO-TGL-U Mini-ITX Motherboard IO
  • IEI KINO-TGL-U Mini-ITX Motherboard inclined view
1. Mini-ITX SBC supports Intel® Tiger Lake-UP3, with Intel® 11th Gen. Core™ i7-1185G7E, i5-1145G7E, i3-1115G4E, Celeron® 6305 processor
2. Support Triple independent display via HDMI™, DP, iDPM
3. Support Dual Intel® 2.5 GbE LAN
4. Support one PCIe Gen4 x 8 slot (x 4 signal), M.2 A key, M.2 M key expansions
Low profile hardware architecture

Power Efficient and Low Profile Mini-ITX

IEI KINO-TGL is a single-stack Thin Mini-ITX motherboard with rich I/O Interfaces, including four USB 3.2 Gen 2 ports, dual 2.5Gbps Ethernet connection, and multiple serial ports. The KINO-TGL provides powerful CPU performance optimized to support three independent displays. With low profile hardware architecture and power efficient edge computing capabilities, the KINO-TGL is a competitive solution for use in thin kiosk systems, panel PC, signage display, and POS systems that have confined space limitations.

Hardware Overview

KINO-TGL feature
KINO-TGL feature
  • iDPM module slot
  • 2 x 260-pin 3200MHz
    DDR4, up to 64GB
  • 2 x SATA
    6Gb/s
  • M.2 M key (2242/2280)
KINO-TGL front
  • 12-bit DIO
  • 5 x RS-232
  • RS-422/485
  • PCIe Gen4 x8 slot
    (x4 signal)
  • M.2 A key (2230)
  • AUDIO
  • 2 x USB 2.0
KINO-TGL I/O
  • 9~36V
    DC Input
  • DP
  • HDMI™
  • 4 x USB 3.2
    Gen 2
  • 2 x 2.5GbE
    LAN
KINO-TGL front
  • 1iDPM module slot
  • 22 x 260-pin 3200MHz DDR4, up to 64GB
  • 32 x SATA 6Gb/s
  • 4M.2 M key (2242/2280)
  • 512-bit DIO
  • 65 x RS-232
  • 7RS-422/485
  • 8PCIe Gen4 x8 slot (x4 signal)
  • 9M.2 A key (2230)
  • 10AUDIO
  • 112 x USB 2.0
KINO-TGL I/O
  • 129~36V DC Input
  • 13DP
  • 14HDMI™
  • 154 x USB 3.2 Gen 2
  • 162 x 2.5GbE LAN

11th Gen. Intel® Core™ U-series Processors

IEI KINO-TGL is a Mini-ITX embedded board equipped with the 11th generation Intel® Core™ U processor supporting up to 4 cores, 8 threads, turbo up-to 4.80 GHz. The Intel® Core™ i7 and i5 processors are integrated with Intel® Iris® Xe 96EU graphics core, delivering high AI inference performance for the SoC.

CPU Benchmark

CPU Benchmark

Triple Independent Displays with up to 4K Resolution

The latest Intel® Iris® Xe graphics (Gen12) with up to 96 EUs is integrated into the KINO-TGL Mini-ITX SBC to deliver up to 2.95 times faster graphics performance. Three independent displays are supported via HDMI™, DP and the option to use the iDPM interface, making it ideal for kiosks, digital signage, or medical imaging applications that require high graphics performance.

Display Output

Free to Choose Display Connections with iDPM Modules

More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow the KINO-TGL to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.

IEI iDPM connector

CPU Benchmark

CPU Benchmark

Triple Independent Displays with up to 4K Resolution

The latest Intel® Iris® Xe graphics (Gen12) with up to 96 EUs is integrated into the KINO-TGL Mini-ITX SBC to deliver up to 2.95 times faster graphics performance. Three independent displays are supported via HDMI™, DP and the option to use the iDPM interface, making it ideal for kiosks, digital signage, or medical imaging applications that require high graphics performance.

Display Output

Free to Choose Display Connections with iDPM Modules

More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow the KINO-TGL to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.

IEI iDPM connector

Less Than 20mm Height, Suitable for Limited Space Applications

The KINO-TGL is equipped with a maximum I/O in a small footprint of only 19.90 mm in height, making it ideal for height-constrained applications. Featuring a single-layer I/O design, the KINO-TGL is twice thinner than the standard Mini-ITX motherboard.

KINO-TGL I/O height Standard mini-ITX motherboard height
Suitable for limited space applications

Makes IoT Truly Feasible in Any Scenario

With mobile processing performance, low- profile hardware platform, and graphics-rich performance, the KINO-TGL Mini-ITX motherboard is a competitive solution for any feasible scenario. All features plus its stability and reliability enable it an ideal platform for IoT edge development.

  • ATM
  • Tablet Kiosk station
  • Smart factory
  • Electronic Timetable Display
  • AI in Healthcare
ATM
Tablet Kiosk station
Smart factory
Electronic Timetable Display
AI in Healthcare

Abundant Expansion Capabilities

KINO-TGL expansion slot
PCIe x8 slot for AI Accelerating

IEI Mini-ITX boards are AI Edge ready, supporting IEI's AI accelerators, Mustang series. IEI Mustang AI accelerators can bring much larger and computationally-intensive neural networks to the edge and ideal for deep learning inference computing to help you get faster, deeper insights for your customers and your business.

IEI's AI solutions are able to support up PCIe x8 (x4 signal) to deploy and run your AI projects in retail, transportation and surveillance efficiently.

M.2 2230 A Key for Wi-Fi/Bluetooth

The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology.
Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

Wi-Fi 6E
M.2 2230 A Key
M.2 2242/80 M key
M.2 2242/80 M key for PCIe

The M.2 2242/80 M key slot carrying with PCIe Gen3 x2 signs bandwidth supports up to 16Gbps data-transfer speeds. It's the perfect choice for installing an operating system or application drive to provide fast data access.

PCIe Gen3 x2 signs bandwidth supports up to 16Gbps

High Speed Transmission

SATA 6Gbps Provides Faster Transfer Speeds

Twice as fast data processing, it is capable of delivering lightning fast data transfer experience for edge AI data process applications.

SATA 6Gb/s
SATA 6Gb/s

Four USB 3.2 Gen 2 (10Gb/s)

Four USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission, the device can be connected in any way.

Four USB 3.2 Gen 2
Four USB 3.2 Gen 2

Networking

Delivers Dual Low-Latency 2.5G LAN

Delivers Dual Low-Latency 2.5G LAN Powered by Intel

2.5 GbE is a more attractive option since it supports various connection speeds between 100 Mbps and 2.5 Gbps on Cat6 and Cat 5e cables, which means user can experience the full capability of high-performance network soluti ons without significant costs for upgrading cables.

Ethernet Lan 2.5GbE

Dimensions

Dimensions

Hardware Spec.

System
CPU 11th Gen. Intel® Tiger Lake-UP3 Processor
Intel® Core™ i7-1185G7E (up to 4.4GHz, quad-core, 12M Cache, TDP=28/15/12W)
Intel® Core™ i5-1145G7E (up to 4.1GHz, quad-core, 8M Cache, TDP=28/15/12W)
Intel® Core™ i3-1115G4E (up to 3.9GHz, quad-core, 6M Cache, TDP=28/15/12W)
Intel® Celeron® 6305E(up to 1.8GHz, dual-core, 4M Cache, TDP=15W)
Memory 2 x 260-pin 3200 MHz DDR4 SO-DIMM support up to 64 GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Storage
Storage 2 x SATA : 6Gb/s with 5V SATA power connector
1 x M.2(NGFF) : M Key (2242/2280) with PCIe Gen3 x2, support NVME storage
I/O Interface
Display Output 1 x HDMI™ : up to 4096 x 2160@30Hz
1 x Display Port : up to 4096 x 2160@60Hz
1 x iDPM : IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
Ethernet 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x iAUDIO, supporit IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 5 x Internal RS-232 : 2x5 pin, P=2.0
1 x Internal RS-422/485 : 2x5 pin, P=2.00, RS-485 support AFC
2 x Internal USB 2.0 : 2x4 pin, P=2.00
1 x DIO : 12-bit digital I/O (2x7 pin)
4 x External USB 3.2 Gen2x1 : 10Gb/s
Expansion 1 x PCIe x8 : x 4 signal
2 x M.2(NGFF) -
1 x M.2 A key (2230) with PCIe Gen3 x1/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x2
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 9V@9.19A, 12V@7.768A, 28V@3.119A, 36V@2.459A (Intel® Core™ i7-1185G7E CPU with one 8 GB 2933 MHz DDR4 SO-DIMM)
Power Supply 9 ~ 36V DC input
1 x Internal power connector (2x2 pin)
1 x External DC power Jackc (Ø5.5mm)
ErP/EuP Compliant
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-TGL-U-i7-R10 Mini-ITX SBC with Intel® Tiger Lake-UP3 Core™ i7-1185G7E Proccessor,DDR4 SO-DIMM,9~36V DC input,Quad Display,SATA,Dual Intel® 2.5GbE,USB3.2,M.2,SoC,RoHS
KINO-TGL-U-i5-R10 Mini-ITX SBC with Intel® Tiger Lake-UP3 Core™ i5-1145G7E Proccessor,DDR4 SO-DIMM,9~36V DC input,Quad Display,SATA,Dual Intel® 2.5GbE,USB3.2,M.2,SoC,RoHS
KINO-TGL-U-i3-R10 Mini-ITX SBC with Intel® Tiger Lake-UP3 Core™ i3-1115G4E Proccessor,DDR4 SO-DIMM,9~36V DC input,Quad Display,SATA,Dual Intel® 2.5GbE,USB3.2,M.2,SoC,RoHS
KINO-TGL-U-CE-R10 Mini-ITX SBC with Intel® Tiger Lake-UP3 Celeron® 6305E Proccessor,DDR4 SO-DIMM, 9~36V DC input, Quad Display,SATA,Dual Intel® 2.5GbE,USB3.2,M.2,SoC,RoHS

Package Contents

Package Content
  • 1 x KINO-TGL-U single board computer

  • 1 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
