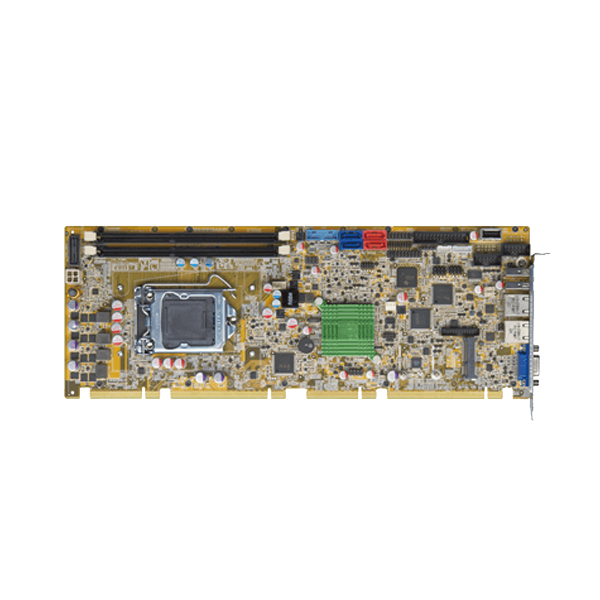

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81

  • Overview

    ● PICMG 1.3 full-size solution
    ● 4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Two 1600/1333 MHz DDR3 SDRAM DIMMs support up to 16 GB
    ● Dual Realtek PCIe GbE supported
    ● TPM v1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
    ● Stiffener bars
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1150SB-R11
      CF-1150SC-R20
      CF-1150SE-R10
      CF-1150SF-R10
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCIe Mini slot (PCIe Mini & mSATA colay)
      One PCIe x16 & four PCIe x1 signal via golden finger
      PCI signal by ITE IT 8892 (PCIe to PCI bridge)
      I/O Interface
      AudioSupport 7.1-channel HD Audio by IEI AC-KIT-892HD kit
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      DisplayDual independent display
      VGA (up to 1920x1200@60 Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
      EthernetDual Realtek RTL8111E PCIe GbE controllers supported
      I/O Interface
      I/O Interface2 x Internal RS-232
      1 x Internal RS-422/485
      4 x Internal USB 2.0
      2 x Internal USB 3.0
      1 x LPT
      2 x USB 2.0
      Power
      Power consumption5V@3.41A, 12V@0.35A, Vcore_12V@7.52A, 3.3V@1.41A, 5VSB@0.12A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      Storage
      Storage2 x SATA 6Gb/s
      2 x SATA 3Gb/s (H81 supports AHCI, no RAID)
      System
      ChipsetIntel® H81
      CPU4th generation LGA 1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
      support up to 16 GB
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PCIE-H810-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, USB 3.0, RS-232, HD Audio and RoHS
    • Package Contents

      • 1 x PCIE-H810 single board computer

      • 2 x SATA cable

      • 1 x One Key Recover CD

      • 1 x QIG (Quick Installation Guide)

      • 1 x Utility CD
