• Overview

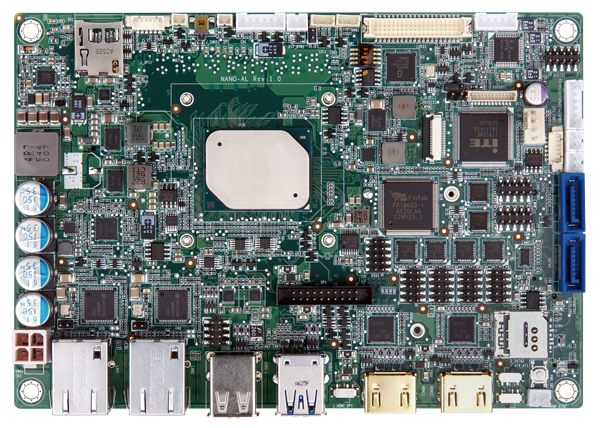

    ● EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC supports dual-channel DDR3L SO-DIMMs.
    ● Triple independent display support.
    ● Wide range 9V~30V DC input design.
    ● M.2 B Key slot with SIM sockets for 3G/LTE expansion.
    ● COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support.
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
      Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
      Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
      Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
      MemoryOne 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM
      Memory Max.8GB
      Physical Characteristics

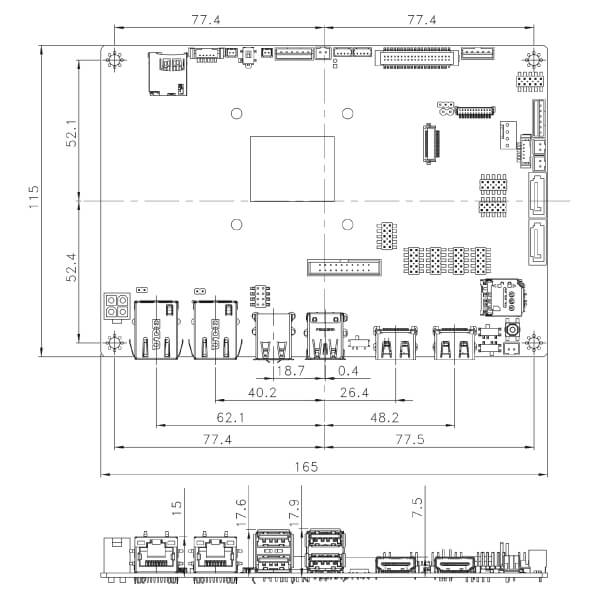

      Dimensions (LxWxH) (mm)115 X 165
      Net Weight350g
      Storage
      Storage2 x SATA :6Gb/s with 5V SATA power connector (no RAID)
      1 x SD/MicroSD card :optional
      I/O Interface
      Display Output2 x HDMI :up to 3840x2160@30Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      1 x iDP :interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with HDMI1)
      EthernetDescription: Intel® I211-AT PCIe controller
      Audio1 x Description: Realtek ALC662 HD codec
      1 x Front Audio :2x5 pin
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.0
      2 x Internal RS-422/485 :2x5 pin, P=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      2 x Internal USB 2.0 :2x4 pin, P=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe mini Card Slot :Full/Half-size PCIe Mini slot with SIM holder (optional)
      1 x M.2(NGFF) :2242 (B key, SATA, USB 2.0, USB 3.1 Gen 1 (5Gb/s) signal only)
      Power
      Power Consumption12V@2.13A (Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory)
      12V@2.81A (Intel® Atom™ x7-E3950 CPU with one 8GB 1600MHz DDR3L memory)
      Power Supply9V~30V DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 70°C / -40°C ~ 85°C (NANO-AL-ExW2)
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      NANO-AL-N1-R10 EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
      NANO-AL-N2-R10 EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
    • Package Contents

      • 1 x NANO-AL single board computer with Heatsink

      • 1 x Power cable

      • 1 x SATA with power cable kit

      • 1 x Screw set (for half-size PCIe Mini card)

      • 1 x QIG

      • 1 x RS-232 cable
