• Overview

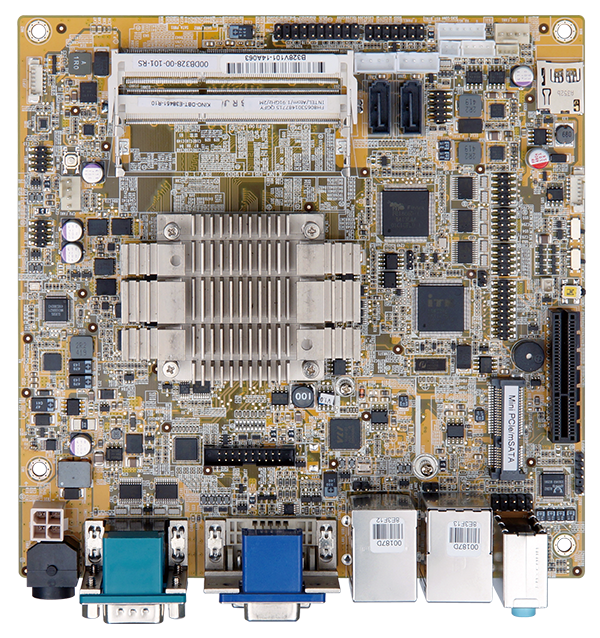

    ● Mini-ITX SBC with 22nm Intel® Atom™ on-board SoC
    ● 1.35V DDR3L 1066/1333 MHz SDRAM supporting up to 8 GB of memory
    ● Dual independent display support
    ● COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and HD Audio support
    ● Support Intel® VT-x techology
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.5W)
      MemoryTwo 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM
      Memory Max.8 GB (J1900, N2930, E3845, E3827, E3826,E3825, E3815) or 4 GB (N2807)
      Physical Characteristics
      Dimensions (LxWxH) (mm)170 X 170
      Net Weight400g
      Storage
      Storage2 x SATA :3Gb/s
      1 x mSATA :colay STAT2
      1 x SD/MicroSD card :E38XX sku only
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x DVI-D :up to 1920x1080@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Ethernet2 x LAN :LAN1: Realtek RTL8111E PCIe GbE controller
      LAN2: Realtek RTL8111E PCIe GbE controller
      AudioDescription: Realtek ALC662 HD Audio codec supports 5.1-channel
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x S/PDIF :1x5 pin
      1 x Front Audio :2x5 pin
      I/O Interface2 x External RS-232
      3 x Internal RS-232 :2x5 pin, p=2.0
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe x4 :with PCIe X 1 signal
      1 x PCIe mini Card Slot :Full-Size slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption12V@1.64A (Intel® Celeron® J1900 CPU with 4 GB 1333 MHz DDR3L memory)
      Power Supply12V DC input
      1 x External DC jack (4-pin DIN)
      1 x Internal power connector (2x2 pin)
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      KINO-DBT-J19001-R10 Mini-ITX SBC supports Intel® Celeron® Quad-Core Processor J1900(10W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS
      KINO-DBT-N28071-R10 Mini-ITX SBC supports Intel® Celeron® Dual-Core Processor N2807(4.3W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS
      KINO-DBT-N29301-R10 Mini-ITX SBC supports Intel® Celeron® Quad-Core Processor N2930(7.5W), VGA/DVI/iDP, Dual Realtek® PCIe GbE, USB 3.0, SATA, HD Audio, RoHS
      KINO-DBT-E38XX1-R10
    • Package Contents

      • 1 x KINO-DBT single board computer

      • 1 x SATA cable with power output cable

      • 1 x IO shielding

      • 1 x QIG
