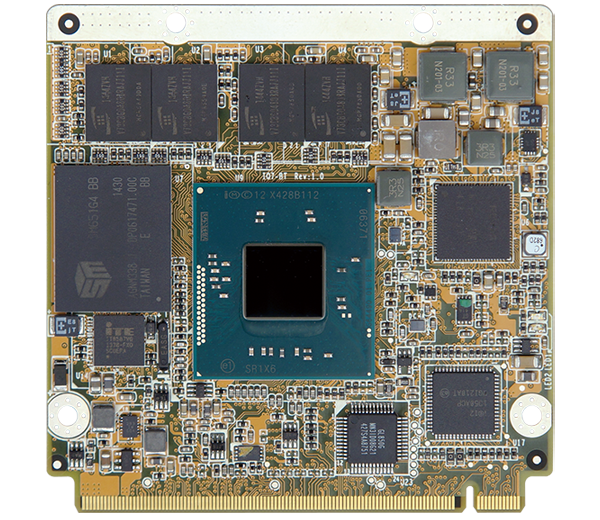

iQ7-BTW2/iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor

  • Overview

    ● 22nm Intel® Atom™ on-board SoC supported
    ● Qseven connector pinout according to Qseven Specification Revision 2.0
    ● Supports 2 GB 1066/1333 MHz DDR3L memory (4 GB optional)
    ● Optional soldered-down 2 GB~64 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache,TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache,TDP=6W)
      Memory2 GB soldered-down 1066/1333 MHz DDR3L memory
      Memory Max.4GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)70 X 70
      Net Weight150g
      Storage
      Storage2 x SATA :3Gb/s signal to baseboard
      Optional soldered-down 4 GB SSD (SATA port 2)
      I/O Interface
      Display Output1 x Display Port :DDI (DP up to 2560x1600@60Hz / HDMI up to 1920x1080@60Hz)
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      EthernetDescription: Intel® I210 GbE controller
      AudioDescription: High-definition Audio interface to baseboard
      I/O Interface6 x Internal USB 2.0 :signal to baseboard
      1 x Internal USB 3.2 Gen1x1 :signal to baseboard
      Expansion3 x PCIe x1 :signal to baseboard
      Power
      Power Consumption3.3V@0.13A, 5V@0.13A, 12V@1.35A, 5VSB@0.12A (Intel® Atom™ E3845 CPU with 2 GB onboard memory)
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      iQ7-BT-E38251W2-R10 Qseven® Rev. 2.0 module supports Intel® Atom™ dual-core processor E3825 (6W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS
      iQ7-BT-E38251-R10 Qseven® Rev. 2.0 module supports Intel® Atom™ dual-core processor E3825 (6W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS
      iQ7-BT-E38451-R10 Qseven® Rev. 2.0 module supports Intel® Atom™ quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS
      iQ7-BT-E38451W2-R10 Qseven® Rev. 2.0 module supports Intel® Atom™ quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS
    • Package Contents

      • 1 x iQ7-BT single board computer

      • 1 x Heatsink

      • 1 x QIG
