WAFER-ADL-N

3.5 SBC supports Intel® Atom™ Alder Lake-N Celreon and Pentium on-board SoC, triple display with DP ,HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, 0°C ~60°C

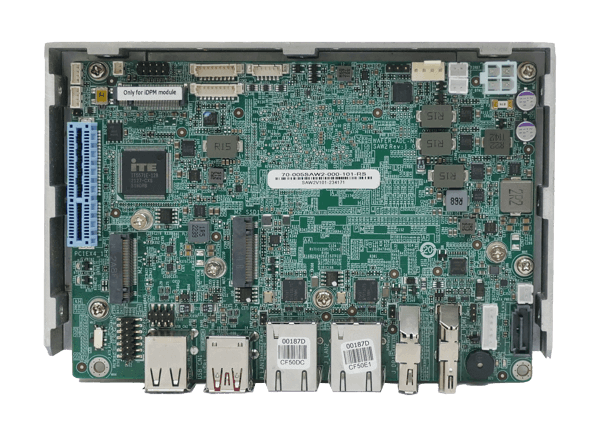

WAFER-ADL-N Front
WAFER-ADL-N IO
WAFER-ADL-N Back
WAFER-ADL-N Left
  • WAFER-ADL-N Front
  • WAFER-ADL-N IO
  • WAFER-ADL-N Back
  • WAFER-ADL-N Left
» Support 12th Intel® mobile AlderLake-N on board SoC
» Support on-board LPDDR5x 8GB memory, up to 16GB
» Support triple independent display via HDMI™, DP and iDPM slot
» Support PCIe x4 (x2 signal), M.2 M key and M.2 A key expansion
» Suport two 2.5GbE LAN with i225-V

Specifications

Hardware Spec.

Form Factor
Form Factor 3.5” SBC
System
CPU Intel® Alder Lake-N N97 SoC Processor
Intel® Alder Lake-N N200 SoC Processor
Memory Dual channal LPDDR5x 8G pre-installed (system max. 16G)
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146mm x 102mm
Net Weight 350g
Storage
Storage 1 x SATA : 6Gb/s
1 x M.2(NGFF) : 1 x M.2 M Key 2280 (PCIe Gen3 x1)
I/O Interface
Display Output 1 x HDMI™ : up to 4096 x 2160 @ 30Hz
1 x Display Port : up to 4096 x 2160 @ 60Hz
1 x iDPM (only for IEI eDP/LVDS/VGA module)
Ethernet 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)
I/O Interface 2 x Internal RS-232/422/485 (1x9 pin, P=1.25)
2 x External USB 2.0 (Type A)
2 x Internal USB 2.0 (2x4 pin, P=2.0)
2 x External USB 3.2 Gen2x1 (10Gb/s, Type A)
Expansion 1 x PCIe x4 : PCIe Gen3 x2 signal
2 x M.2(NGFF) -
1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe Gen3 x1)
Power
Power Consumption 12V@3.21A
(Intel® Processor N97 with 8 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled)
12V@2.67A
(Intel® Processor N200 with 8 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C~60°C
Storage Temperature -20°C~70°C
Humidity 5% ~95%, non-condensing

Ordering Information

WAFER-ADL-N97C-R10 3.5 SBC supports Intel® Processor N-series N97 SoC Processor，with 8GB LPDDR5x memory on board default, with DP ,HDMI™ iDPM ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-N200C-R10 3.5 SBC supports Intel® Processor N-series N200 SoC Processor，with 8GB LPDDR5x memory on board default, with DP ,HDMI™ iDPM ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS

Package Contents

Package Content

  • 1 x WAFER-ADL-N SBC with heat spreader

  • 1 x SATA with power cable kit

  • 1 x Power cable

  • 1 x QIG
