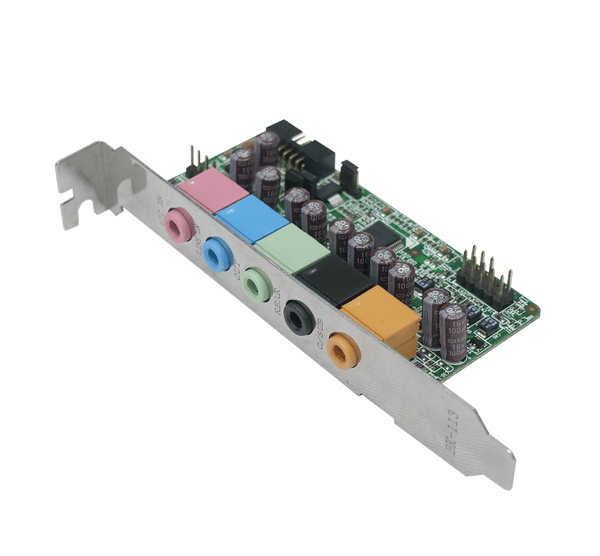

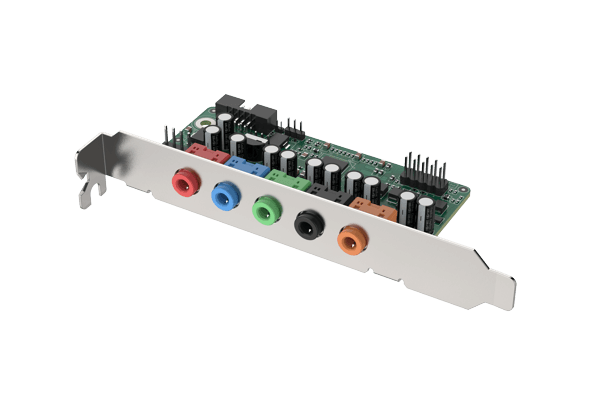

AC-KIT-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS

AC-KIT-888S  Audio Kit
  • AC-KIT-888S  Audio Kit
» Realtek ALC888S HD Audio codec IC supported
» Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
» High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
» Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
» Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
» All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
» All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
» Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)

Hardware Spec.

Form Factor
Form Factor Full height peripheral board
System
Chipset Realtek ALC888S HD Audio codec IC
Physical Characteristics
Dimensions (LxWxH) (mm) 83.82 mm x 40.64 mm
I/O Interface
Audio Description: Detail –
1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector
1 x Line in
1 x Line out
1 x Mic
HD Audio : Realtek ALC888S
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

AC-KIT-888S-R10 Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS

Package Contents

Package Content
  • 1 x AC-KIT-888S audio peripheral board

  • 1 x Audio cable
