iDPM-VGA

eDP to VGA Connector converter board (Only for IEI iDPM slot)

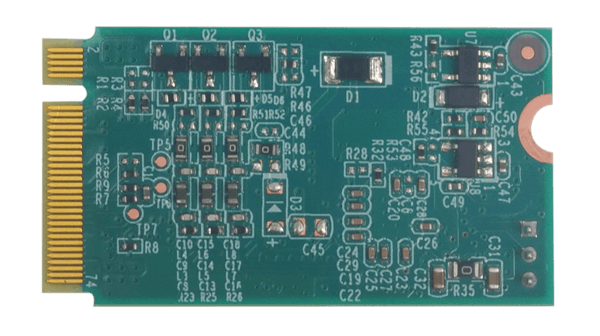

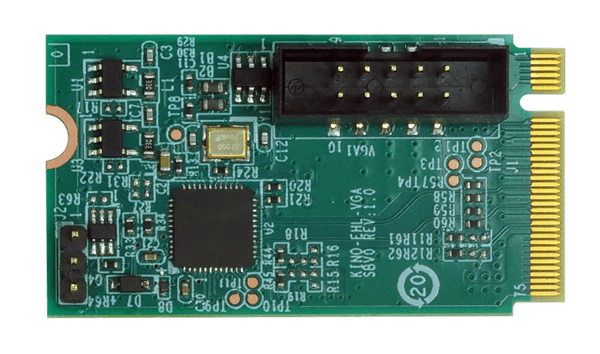

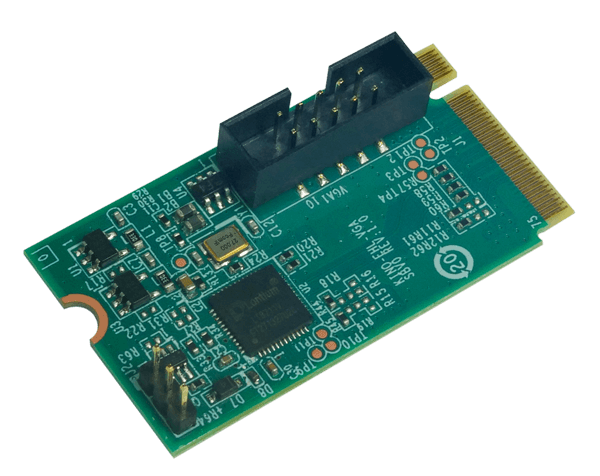

iDPM-VGA converter card
iDPM-VGA converter card
iDPM-VGA converter card
  • iDPM-VGA converter card
  • iDPM-VGA converter card
  • iDPM-VGA converter card
» eDP to VGA output
» Support up to 1920 x 1200 resolution
» Only for IEI iDPM slot

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 40mm x 22mm
I/O Interface
Display Output 1 x VGA: up to 1920 x 1200
Power
Power Supply On board 3.3V ~ 12V
Environment
Operating Temperature 0°C – 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

iDPM-VGA-R10 eDP to VGA Connetor converter board (For iEi Display Module)

Package Contents

Package Content
  • 1 x iDPM-VGA converter module

  • 1 x VGA Cable
