Overview● PCI Express® x1 compliant● Support for total 90 watts under full load● Support link aggregation/jumbo frames (9 Kbyte)● Supports 12V~24V DC input power
With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z.
Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.
The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.
Spec Item Description I/O Interface Ethernet Intel® I211-AT controller
9kB jumbo frame
IEEE 802.3az, IEEE1588
Power Input 12~24V DC input
1 x Internal DC input (1x4 pin)
1 x Internal DC input (2x3 pin)
**Caution! Choose one input only at a time
Environment Operating Temperature 0°C ~ 60°C Humidity 5% ~ 95%, non-condensing Storage Temperature -10°C ~ 70°C Dimensions Dimensions 160 mm x 65 mm Weight Weight 110g Features Features 1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power

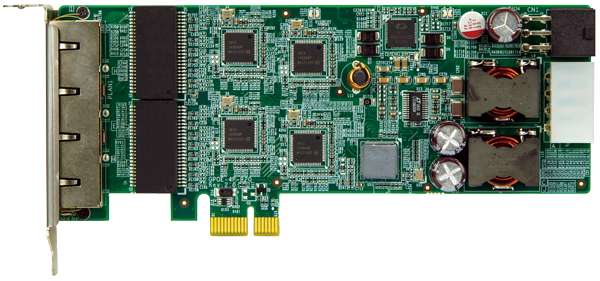

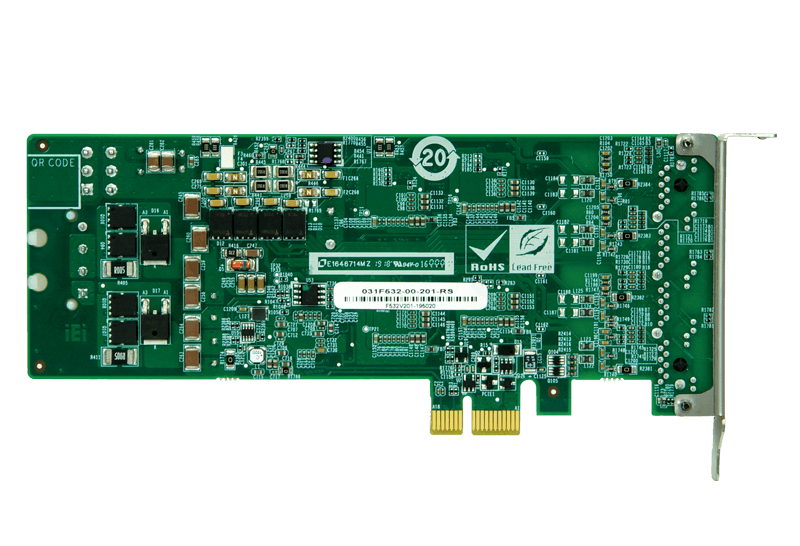

Item No. Description GPOE-4P-R20 PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
1 x GPOE-4P card
1 x QIG (Quick Installation Guide)
