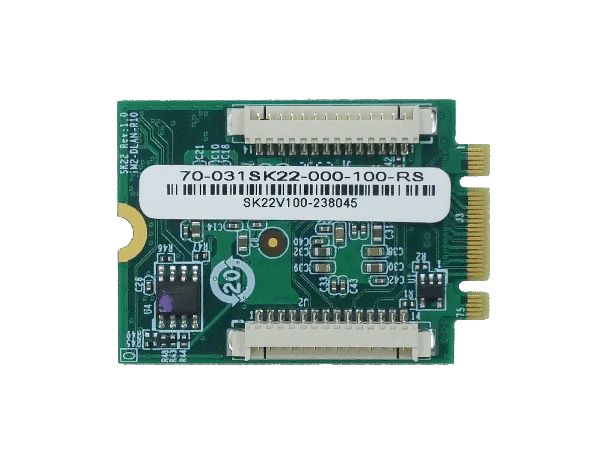

» M.2 B Key + M Key card supports dual Intel® 2.5 GbE LAN
» Support link aggregation/jumbo frames (9 Kbyte)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | M.2 B Key + M Key card |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 30mm x 42mm |
| Net Weight | GW: 100g / NW: 50g |
| I/O Interface | |
| Ethernet |
Description: Speed 100/1000/2500 Mbps -
|
|
2 x LAN - LAN1: Intel® I225V controller LAN2: Intel® I225V controller |
|
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
| Card Slot Interface | |
| M.2 | M.2 B/M key 3042 (PCIe gen3 x2 signal) |
Ordering Information
| iM2-DLAN-R10 | M.2 B Key + M Key card (3042) supports dual Intel 2.5 GbE LAN, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
