ICE-DB-T6R

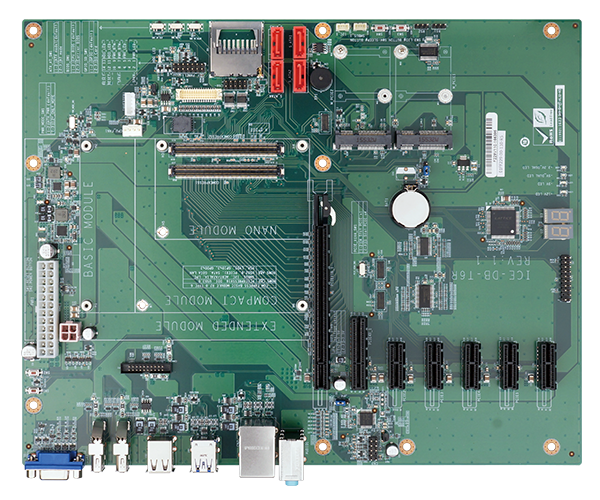

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1

  • Overview

    ● Intel® 22nm Atom™ or Celeron® on-board SoC supported
    ● Intel® HD Graphics Gen7 integrates high-performance graphics and media processing
    ● Supports 1333/1066 MHz DDR3L (1.35V) memory, up to 8 GB
    ● Supports one analog CRT, one 24-bit dual-channel LVDS, and one DDI
    ● Optional soldered down 4 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Display Output1 x VGA 1 x HDMI (HDMI signal only)
      1 x DisplayPort pin-header 1 x DisplayPort connectors
      1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
      Environment
      Humidity5% ~ 95 non-condensing
      Operating Temperature-20°C ~ 60°C
      I/O Interface
      Expansion1 x PCIe x16
      5 x PCIe x1
      1 x LPC
      2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)
      I/O Interface
      I/O Interface2 x USB 2.0
      2 x USB 3.0
      System
      CPUSupports COM Express Compact/Mini module using connector pin out Type 6
      StorageEEPROM (supports EAPI R1.0)
    • Ordering Info.

      Item No. Description
      ICE-DB-T6R-R10Base Board for COM Express Type 6 Module COM.0 Rev. 2.1,support PICMG EAPI R1.0
