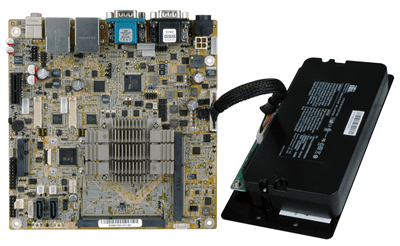

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC

  • Overview
    ● Mini ITX supports Intel® 22nm Atom™ or Celeron® on-board SoC
    ● Wide-range 9V ~ 26V DC input design
    ● Supports dual independent display with dual LVDS and VGA
    ● Equipped with AUPS sub-system, acts as a simple UPS system
    ● Supports four USB 2.0, two USB 3.0, two SATA and four COM
    ● IEI jumper-less function

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC
      (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3827 on-board SoC
      (1.75GHz, dual-core, 1MB cache, TDP=8W)
      Intel® Atom™ E3826 on-board SoC
      (1.46GHz, dual-core, 1MB cache, TDP=7W)
      Intel® Atom™ E3825 on-board SoC
      (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC
      (1.46GHz, single-core, 512KB cache, TDP=5W)
      Intel® Celeron® J1900 on-board SoC
      (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2930 on-board SoC
      (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
      Intel® Celeron® N2807 on-board SoC
      (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      MemoryTwo 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM (J1900, N2930, E3845, E3827, E3826)
      One 204-pin 1066/1333 MHz dual-channel unbuffered DDR3L SDRAM SO-DIMM (E3825, E3815) or 4 GB (N2807)
      Memory Max.8GB
      Storage
      Storage1 x CFast
      1 x SD/MicroSD card
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      2 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet2 x LAN :Realtek RTL8111E PCIe controller
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      I/O Interface3 x External RS-232
      1 x Internal RS-232 :2x5 pin, p=2.0
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      2 x External USB 3.2 Gen1x1
      2 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      Expansion1 x PCIe x1
      1 x PCIe mini Card Slot
      Other Features
      TPM2x10 pin
      Power
      Power Consumption+12V@1.55A
      (Intel® Celeron® J1900 CPU with two 4 GB
      1333 MHz DDR3L memory)
      Power Supply1 x External DC power jack (4-pin DIN)
      1 x Internal power connector (2x2 pin)
      Input voltage range: 9V ~ 26V
      Recommended operating input voltage range:
      12V~24V
      Environment
      Operating Temperature0°C ~ 40°C with AUPS sub-system;
      -20°C ~ 60°C without AUPS sub-system;
      Storage Temperature-10°C ~ 50°C with AUPS sub-system
      -30°C ~ 70°C without AUPS sub-system
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant

    • Ordering Info.

      Item No. Description
      EKINO-BT-N28071-R10 Mini-ITX SBC supports AUPS Sub-System, Intel® Celeron® Dual-Core Processor N2807(4.5W), wide range 9-26VDC input,VGA/ Dual LVDS, SATA, Dual GbE, USB 3.0, Audio, CFAST and RoHS
      EKINO-BT-N29301-R10 Mini-ITX SBC supports AUPS Sub-System, Intel® Celeron® Quad-Core Processor N2930(7.5W), wide range 9-26VDC input,VGA/ Dual LVDS, SATA, Dual GbE, USB 3.0, Audio, CFAST and RoHS
      EKINO-BT-J19001-R10 Mini-ITX SBC supports AUPS Sub-System, Intel® Celeron® Quad-Core Processor J1900(10W), wide range 9-26VDC input,VGA/ Dual LVDS, SATA, Dual GbE, USB 3.0, Audio, CFAST and RoHS
      EKINO-BT-E38XX1-R10

    • Package Contents

      • 1 x eKINO-BT single board computer

      • 2 x SATA with 5V output cable kit

      • 1 x I/O shielding

      • 1 x QIG
