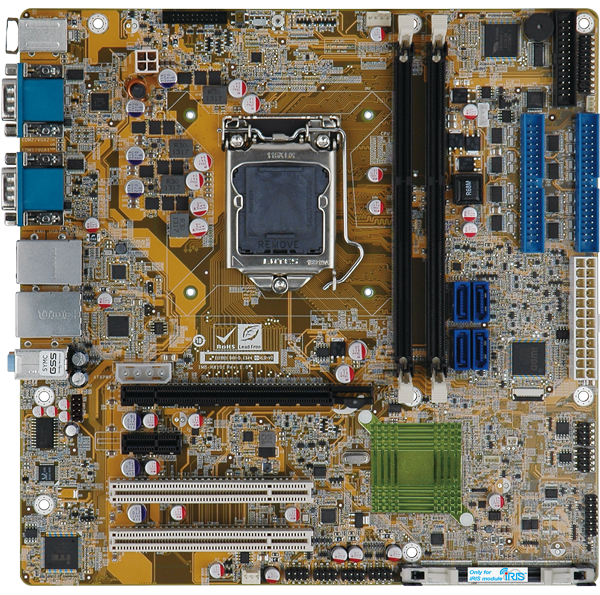

IMB-H810-i2

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

  • Overview

    ● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR3 1333/1600 MHz support up to 16 GB
    ● Intel® HD Graphics technology integrates high-performance graphics and media processing
    ● Supports legacy PCI 32-bit 33/66 MHz
    ● Ten COM ports, USB 3.0 and SATA supported
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 via iRIS-2400 module
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156E-R11
      Display
      DisplayVGA1 (up to 1920x1200 @ 60 Hz)
      VGA2 (up to 1920x1200 @ 60 Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCIe x16 slot (Gen 3)
      1 x PCIe x1 slot
      2 x PCI slot
      I/O Interface
      AudioLine-in, Line-out (with 3.5W +3.5W audio amplifier), Mic
      EthernetLAN1: Intel® I217LM
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      I/O Interface
      I/O Interface2 x USB 3.0
      2 x USB 2.0
      1 x LPT
      8 x Internal USB 2.0
      8 x Internal RS-232
      2 x RS-232
      Option
      iRIS1 x iRIS-2400 slot
      Power
      Power consumption3.3V@0.64A, 5V@4.20A, 12V@0.14A, Vcore_12V@3.88A, 5VSB@0.20A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (2 x 4GB) 1333MHz DDR3 memory)
      System
      ChipsetIntel® H81
      CPUIntel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      support up to 16GB
      Storage2 x SATA 3Gb/s
      2 x SATA 6Gb/s
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec system reset
    • Ordering Info.

      Item No. Description
      IMB-H810-ECO-R11LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, Dual PCIe GbE, USB 2.0, COM, LPT, SATA 6Gb/s, HD Audio, ECO packing, RoHS
      IMB-H810-i2-R11Micro ATX Motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3 CPU per Intel® H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS
    • Package Contents

      • 1 x IMB-H810-i2 single board computer

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA cable

      • 1 x Utility CD
