• Overview

    ● Support PCIe VGA/2D controller, 1920x1200@60Hz 32bpp
    ● DDR3 SDRAM supports up to 800 MHz speed
    ● Compliant with PCI Express Mini specification 1.2
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Compatible OS
      Compatible OS Win7/Win8/Server 2003/Server 2008/Server 2012
      Linux kernel version 2.6.32 above
      Dimensions 50mm x 30mm
      Display Controller IC Aspeed AST1400
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -10°C ~ 60°C
      Form factor
      Form factor PCI Express Mini card
      I/O Interface
      I/O Interface 1 x 10-pin (2x5) box header by 2.0mm pitch
      Power Supply On-board 3.3V
      Weight 7g
    • Ordering Info.

      Item No. Description

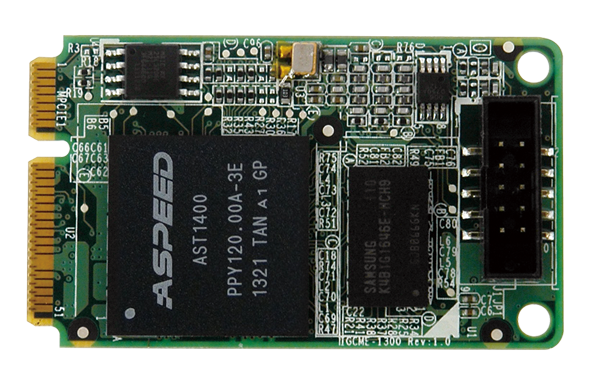

      IGCME-1300-R11 PCIe Mini VGA adapter card with AST1400 ,RoHs
