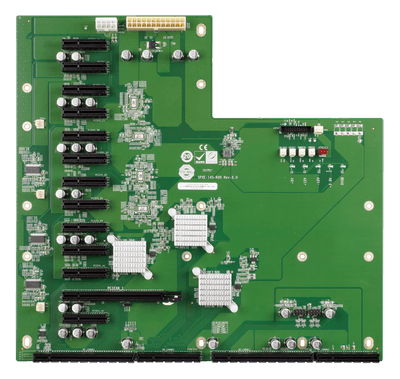

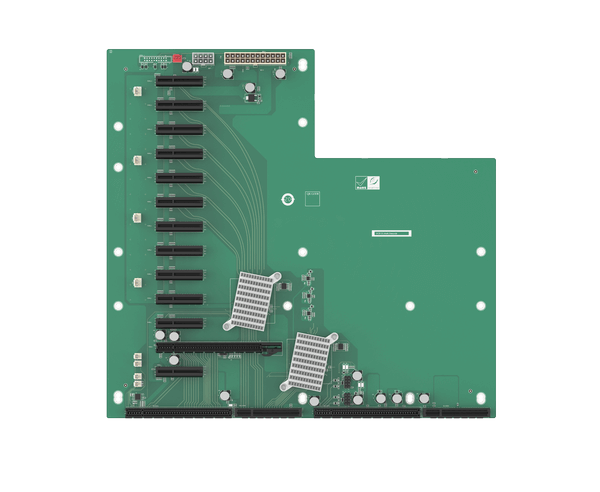

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

» 1 x PCIe x8 :x16 connector
» 12 x PCIe x1 :x4 connector

Hardware Spec.

Physical Characteristics
Mounting RACK-305G
RACK-360G
RACK-3000G
Dimensions (LxWxH) (mm) 327.69 X 311.1
I/O Interface
Expansion 1 x PCIe x8 :x16 connector
12 x PCIe x1 :x4 connector
Power
Power Supply 24+8pin ATX

Ordering Information

SPXE-14S-R20 14-slot PICMG 1.3 backplane with one PCIe x16 slot (x8 signal) and twelve PCIe x1 slots
RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
