DP-HDMI

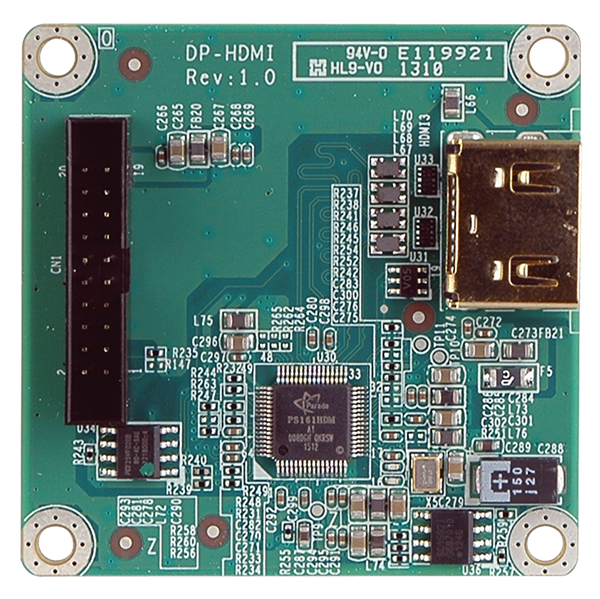

DisplayPort to HDMI 1.3a Converter Board (for IEI iDP DP-HDMI-R10 connector)

  • Overview

    ● DisplayPort to HDMI 1.3a output
    ● Support up to 1920x1200 resolution
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)50 X 50
      I/O Interface
      Display Output1 x HDMI :1.3a
      Environment
      Operating Temperature-10°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      DP-HDMI-R10 DisplayPort to HDMI converter board (For iEi IDP connector)
