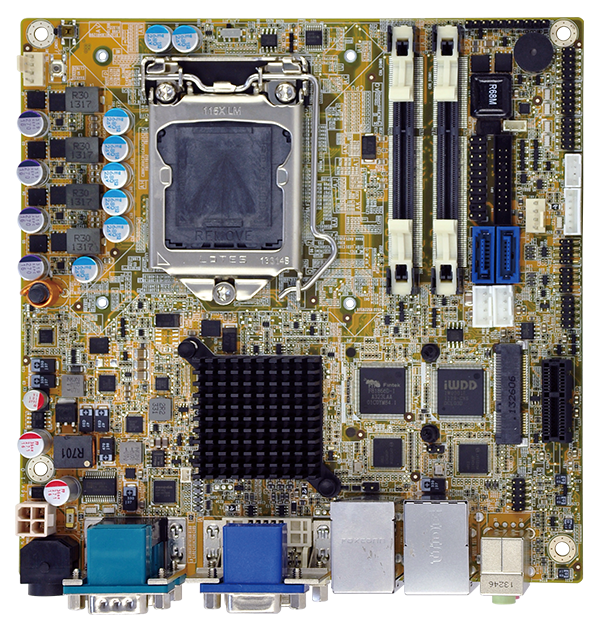

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU

  • Overview

    ● 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● DDR3 1066/1333/1600 MHz dual-channel SDRAM
    ● 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
    ● Rich media acceleration for hardware decode and encode acceleration
    ● High-speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA
    ● IEI Jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      CF-1156E-R11
      Display
      DisplayVGA (up to 1920x1200@60 Hz)
      DVI-D (up to 2560x1600@60 Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCIe x1 slot
      1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      2 x Audio jacks (line-out, mic-in) on rear IO
      1 x Front audio (2x5-pin)
      Digital I/O8-bit digital I/O (2x5 pin)
      EthernetDual LAN: Intel® I211-AT PCIe controller
      I/O Interface
      I/O Interface3 x Internal RS-232
      2 x USB 3.0
      2 x USB 2.0
      1 x Internal RS-422/485
      4 x Internal USB 2.0
      2 x RS-232
      Power
      Power consumption+12V@6.03A
      (Intel® Core™ i7-4770K 3.90 GHz CPU with two 1333 MHz 4 GB DDR3 memory)
      System
      ChipsetIntel® H81
      CPUIntel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
      support up to 16 GB
      Storage2 x SATA 6Gb/s
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      KINO-DH810-ECO-R10LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® CPU, DDR3, DVI-D, VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS
      KINO-DH810-R10Mini-ITX SBC support LGA1150 CPU, DVI-D /VGA / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x KINO-DH810 single board computer 1 x One Key Recovery CD

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA with power output cable

      • 1 x Utility CD
