SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS

  • Overview

    ● PICMG 1.3 full-size CPU card
    ● LGA1151 Intel® Xeon® E3, 8th/9th generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor supported
    ● Dual-channel DDR4 2666MHz
    ● Support HDMI and internal DP display
    ● Intel® PCIe GbE with Intel® AMT 11.0 supported
    ● Support M.2 M key for storage (PCIe x4)
    ● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
  • Features

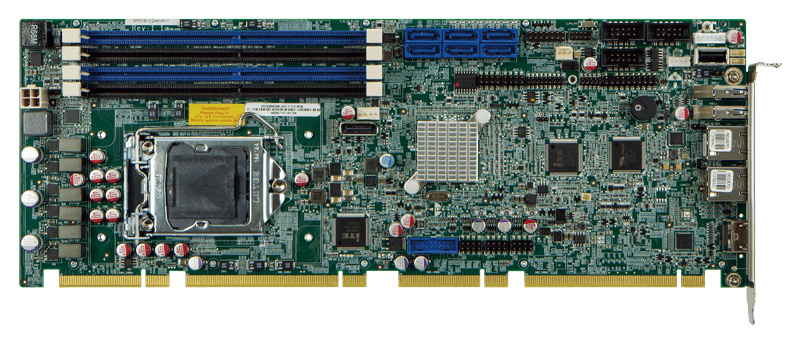

    SPCIE-C246 full size PCIMG 1.3 embedded board computer

    I/O Interface

    SPCIE-C246 full size embedded computer ip interface
    IEI SPCIE-C246 full size single board computer IO

    Dimensions

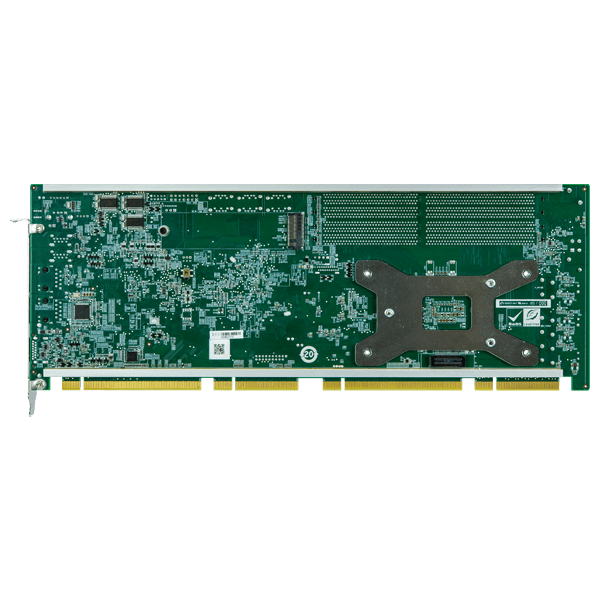

    SPCIE-C246 full size single board computer
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      Form factor PICMG 1.3 full-size CPU card
      Display
      Display Output Dual display supported
      1 x HDMI (up to 4096 x 2304@30Hz)
      1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
      System
      CPU LGA1151 socket supports Intel® Xeon® E3, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
      Chipset Intel® C246
      Memory Max. Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
      CPU Socket LGA1151
      Graphcis Controller Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
      I/O Interface
      Ethernet LAN1: Intel® I219LM PHY
      LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT)
      Digital I/O 8-bit digital I/O (2x5 pin)
      Audio Support 7.1 channel HD audio by IEI AC-KIT-892HD kit
      Expansion 1 x M.2 M key
      1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
      4 x PCI signal via golden finger
      I²C 1 x I²C (1x4 pin)
      I/O Interface
      I/O Interface 1 x Digital I/O(8-bit digital I/O (2x5 pin))
      1 x Display / HDMI(up to 4096 x 2304@30Hz)
      2 x Ethernet(LAN1: Intel® I219LM PHY
      LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT))
      6 x Expansion(1 x M.2 M key,
      1 x PCIe x16 & 4 x PCIe x1 signal via golden finger,
      4 x PCI signal via golden finger)
      1 x Front panel((Power LED, HDD LED, Speaker, Power Button, Reset Button))
      1 x I²C(1x4 pin)
      1 x Internal Audio(Support 7.1 channel HD audio by IEI AC-KIT-892HD kit)
      1 x Internal Display(up to 4096 x 2304@60Hz)
      3 x Internal RS-232(2x5 pin, P=2.54)
      1 x Internal RS-422/485(1x4 pin, P=2.0)
      6 x Internal USB 2.0(2x4 pin, P=2.54)
      2 x Internal USB 3.0(USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      6 x SATA 6Gb/s(RAID 0/1/5/10 supported)
      1 x SMBus(1x4 pin)
      1 x USB 2.0(Type A 180°)
      2 x USB 3.0(USB 3.1 Gen 1 (5Gb/s) (Rear IO type A))
      Power
      Power consumption 5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A
      (4.0 GHz Intel® Core™ i7-8700K CPU with four 16 GB 2666 MHz DDR4 memory)
      Power Supply AT/ATX power supply
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature -20°C ~ 60°C
      Humidity 5% ~ 95%, non-condensing
      Storage
      Storage 6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
      Dimensions
      Dimensions 338 mm x 126 mm
      Weight
      Weight GW: 1000g / NW: 500g
      Expansion Slots
      Expansion Slots 1 x M.2 M key
      1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
      4 x PCI signal via golden finger
      Watchdog Timer
      Watchdog Timer Software programmable support 1~255 sec. system reset
      BIOS
      BIOS AMI UEFI BIOS
      Standards
      Standards CE/FCC compliant
      Internal Connector
      Internal Connector 1 x KB/MS (1x6 pin)
      1 x RS-422/485 (1x4 pin, P=2.0)
      2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
      3 x RS-232 (2x5 pin, P=2.54)
      6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
      6 x USB 2.0 (2x4 pin, P=2.54)
      Features
      Features ● PICMG 1.3 full-size CPU card
      ● LGA1151 Intel® Xeon® E3, 8th/9th generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor supported
      ● Dual-channel DDR4 2666MHz
      ● Support HDMI and internal DP display
      ● Intel® PCIe GbE with Intel® AMT 11.0 supported
      ● Support M.2 M key for storage (PCIe x4)
      ● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
    • Ordering Info.

      Item No. Description
      SPCIE-C246-R11 Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI, DP, Dual Intel® PCIe GbE, M.2, USB 3.1, SATA 6Gb/s, HD Audio, iAMT and RoHS
    • Package Contents

      • 1 x SPCIE-C246 single board computer

      • 1 x Mini jumper pack

      • 1 x SATA cable

      • 1 x QIG (Quick Installation Guide)
