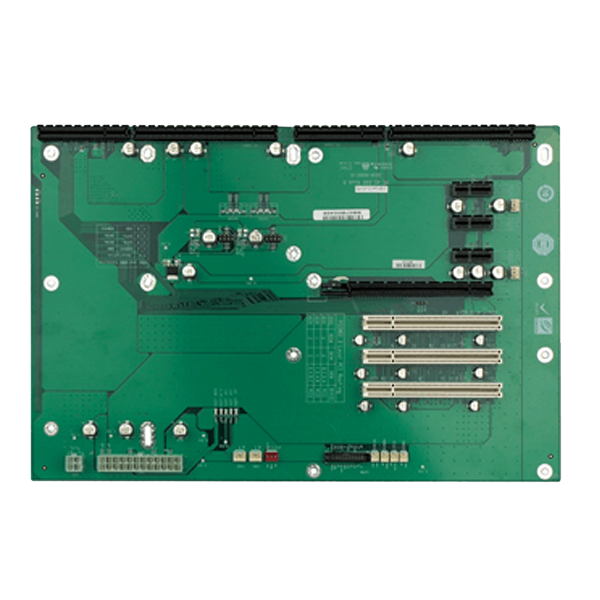

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots

Spec Item	Description
Chassis
Chassis	PAC-125G
Expansion Slots
PCI Slot	3
PCIe x 1	3
PCIe x 16	1
PSU Type
PSU Type	24+4pin ATX
Total Slot
Total Slot	8
USB Connectors by Pin
USB Connectors by Pin	4

Spec Item

Description

Chassis

PAC-125G

Expansion Slots

PCI Slot

PCIe x 1

PCIe x 16

PSU Type

24+4pin ATX

Total Slot

USB Connectors by Pin

Item No.	Description
PAC-125GW-R11	10-Slot Full size chassis,White,W/O PSU,RoHS
PE-8S-R40	PICMG 1.3 ,8 Slots Backplane with 1PCIe x16 and 3PCIe x1 and 3PCI Slots,RoHS

Item No.

Description

PAC-125GW-R11

10-Slot Full size chassis,White,W/O PSU,RoHS

PE-8S-R40

PICMG 1.3 ,8 Slots Backplane with 1PCIe x16 and 3PCIe x1 and 3PCI Slots,RoHS
