싱글 보드 컴퓨터

풀 사이즈 CPU 카드

The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table
CPU Socket / Chipset
Memory
PCIE-RPL-Q670

PCIE-RPL-Q670

Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)
LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)
Two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 96GB
Two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 96GB
PCIE-Q470 Full-size PICMG 1.3 CPU

PCIE-Q470

Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4, HDMI™, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
SPCIE-C246 Full Size Single Board Computer

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI™ and DP, Dual Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,
Intel® H81
LGA1150
Intel® H81
LGA1150
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB

하프 사이즈 CPU 카드

IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table
CPU Socket / Chipset
Memory
icon-new

HPCIE-RPL-Q670

Half-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
CPU:
LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)
CPU:
LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)
Two 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs supported up to 96GB
Two 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs supported up to 96GB
PICOe-EHL Front

PICOe-EHL

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
LPDDR4x-3200Gbps 8GB, up to 16GB
LPDDR4x-3200Gbps 8GB, up to 16GB
HPCIE-Q470 Half-size PICMG 1.3 CPU Card

HPCIE-Q470

Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI™, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G
2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
On Board
On Board
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)

백플레인 보드

IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table
CPU Socket / Chipset
Memory

HPE2-3S1

5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot

PXE-11S1

PICMG 1.3 Passive Backplane

PXE-14S1

PICMG 1.3 Passive Backplane

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI

BP-3S

3-slot backplane with three ISA slots

BP-4S

4-slot backplane with four ISA slots

BP-6S

6-slot backplane with six ISA slots

BP-8S

8-slot backplane with eight ISA slots

BP-10S

10-slot backplane with ten ISA slots

IP-6S

6-slot backplane with three PCI slots and two ISA slots

IP-10S

10-slot backplane with four PCI slots and five ISA slots

IP-5SA2

5-slot backplane with four PCI slots

IP-3S

3-slot backplane with two PCI slots

HPE-3S2

3-slot backplane with one PCI slot and one PCIe x4 slot

HPE-4S2

4-slot backplane with two PCI slots and one PCIe x4 slot

HPE-5S1

5-slot backplane with four PCI slots

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot

HPE-8S0

7-slot backplane with four PCI slots and two PCIe x1 slots

PCI-5SD6

2U chassis backplane with four PCI slots

PCI-6SD

2U chassis backplane with two PCI slots and two ISA slots

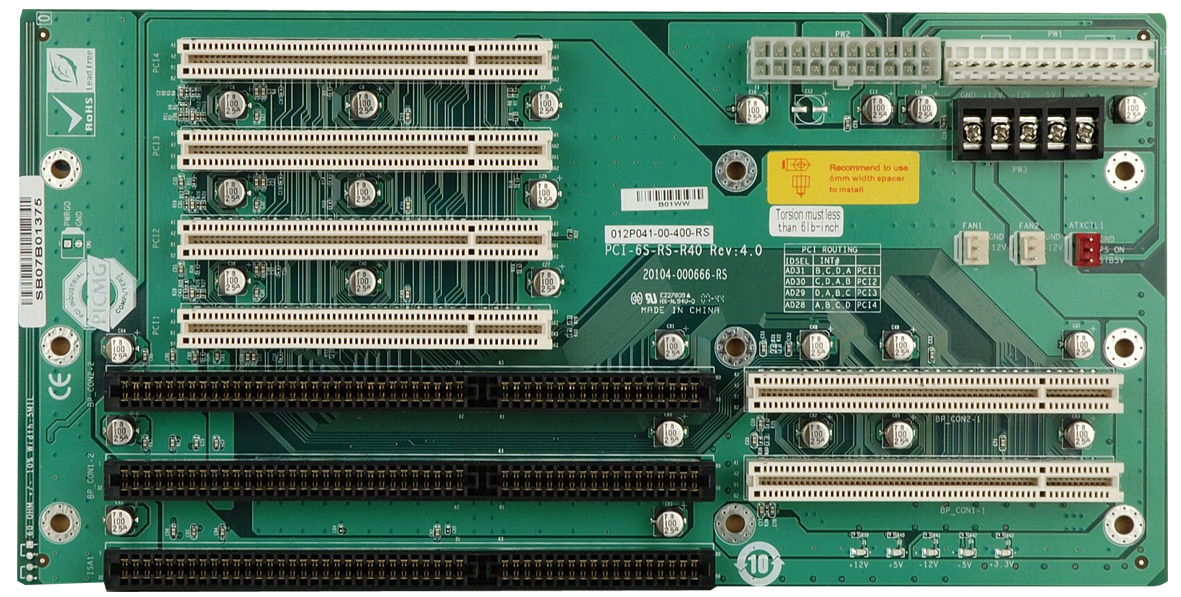

PCI-6S

6-slot backplane with four PCI slots and two ISA slots

PCI-7S

7-slot backplane with four PCI slots and three ISA slots

PCI-10S

10-slot backplane with four PCI slots and five ISA slots

PCI-12S

12-slot backplane with four PCI slots and seven ISA slots

PCI-14S

14-slot backplane with four PCI slots and nine ISA slots

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

PE-2SD1

2-slot backplane with one PCIe slot

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

산업용 마더보드

IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.
CPU Socket / Chipset
Memory
IMB-MTL
icon-new

IMB-MTL

micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU:
14th Gen. Intel® mobile Meteor Lake-H on-board processor
● CPU:
14th Gen. Intel® mobile Meteor Lake-H on-board processor
2 x 262-pin 5600 MHz DDR5 SO-DIMM, system up to 96GB
2 x 262-pin 5600 MHz DDR5 SO-DIMM, system up to 96GB
icon-new

IMB-V3000

micro-ATX motherboard supports AMD V3000 series processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
AMD V3000 Series Processors
CPU:
AMD V3000 Series Processors
Two 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 96GB
Two 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 96GB
IMBAX-SP6
icon-new

IMBAX-SP6

Server grade ATX motherboard, supports AMD SP6 Siena 8-64 cores, 70W-225W TDP ,DDR5, 4 x 2.5GbE LAN, 4 x M.2 slot, RoHS
AMD EPYC™ 8004 Series Processors
AMD EPYC™ 8004 Series Processors
6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB in total
6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC, up to 576GB in total
icon-new

KINO-AH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, double 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 socket supports 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
CPU:
LGA1200 socket supports 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs Supported up to 64GB
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs Supported up to 64GB

IMB-AM5

micro-ATX motherboard supports AMD 7000 & 8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB
Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB

KINO-ADL-N

Mini-ITX SBC with Intel® Alder Lake-N SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, Intel 2.5GbE, M.2, RoHS
● CPU:
Intel® Alder Lake-N SoC Processor
● CPU:
Intel® Alder Lake-N SoC Processor
1 x 262-pin 4800 MHz DDR5 SO-DIMM
1 x 262-pin 4800 MHz DDR5 SO-DIMM

KINO-AM5

Mini-ITX SBC with AMD Ryzen™ 7000 & 8000G Series Desktop Processors, DDR5 SO-DIMM, Triple Display, Dual Intel 2.5GbE , USB3.2, M.2, RoHS
● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB
Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB

IMBA-AM5

ATX motherboard supports AMD 7000&8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB
KINO-ADLP front

KINO-ADL-P

Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-P SoC Processor, DDR4 SO-DIMM, 12~28V DC input, Triple Display, Triple Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, RoHS
● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU
● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU
Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB
Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB
KINO-ADL-PS Front

KINO-ADLPS

Mini-ITX SBC support Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor, DDR4 SO-DIMM, triple display with DP, HDMI™ and iDPM slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS
● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor
● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor
Two 3200 MHz DDR4 SO-DIMMs
Two 3200 MHz DDR4 SO-DIMMs
IMB-H420 Front

IMB-H420

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 6 USB 3.2, 8 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
IMB-Q470 Front

IMB-Q470

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual LAN, M.2, 8 USB 3.2, 6 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E
● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)
Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

IMB-ADL-Q670

micro-ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU:LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
● CPU:LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
IMBA-ADL-Q670 Front

IMBA-ADL-Q670

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, iAUDIO and RoHS
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB
KINO-ADL mini-ITX SBC supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

KINO-ADL-H610

mini-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
IEI IMB-ADL-H610 micro ATX motherboard supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® CPU

IMB-ADL-H610

micro ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
IMBA-ADL-H610 ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

IMBA-ADL-H610

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB
IEI IMBA-R680 ATX motherboard photo

IMBA-R680

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS
CPU: LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E
CPU: LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E
Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs (ECC&non-ECC support)
Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs (ECC&non-ECC support)
KINO-EHL-J6412 mini-itx motherboard supports Intel® Elkhart Lake Celeron® on-board SoC

KINO-EHL

Mini-ITX SBC supports Intel® Elkhart Lake Celeron® on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display with HDMI™, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC input and RoHS
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
Onboard LPDDR4x-3200MHz 8GB, system up to 16GB
IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN

KINO-TGL-U

Thin Mini-ITX SBC supports Intel® Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI™, DP, iDPM, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen2, M.2 and RoHS
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
Two 260-pin 3200 MHz DDR4 SO-DIMM slots
IMBA-Q471 ATX Industrial Motherboard

IMBA-Q471

ATX Motherboard Supports 10 th / 11 th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Displays, Triple 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory
KINO-DH420 Mini-ITX SBC

KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
IMBA-H420 ATX Industrial Motherboard

IMBA-H420

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® H420E
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
IMBA-Q470 ATX Industrial Motherboard

IMBA-Q470

ATX motherboard supports LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset:Intel® Q470/Q470E
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor

KINO-KX

Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI™, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB
Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
IMBA-Q370 ATX Industrial Motherboard

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB
gKINO-DMF mini-itx Industrial Motherboard

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB
IMBA-H110 ATX Industrial Motherboard

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3, Celeron® and Pemtium® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB
Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB
IMBA-Q170 ATX Industrial Motherboard

IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81
Intel® H81
LGA1150
Intel® H81
LGA1150
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)

임베디드 보드

IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.
CPU Socket / Chipset
Memory
WAFER-ASL
icon-new

WAFER-ASL

3.5” SBC supports Intel® Atom™ x7000 RE series on-board SoC, double display with DP, HDMI, triple 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, -40°C~85°C
Intel® Amston Lake Atom™ x7000 series processor
Intel® Atom™ x7211RE SoC Processor
Intel® Atom™ x7213RE SoC Processor
Intel® Atom™ x7433RE SoC Processor
Intel® Atom™ x7835RE SoC Processor
Intel® Amston Lake Atom™ x7000 series processor
Intel® Atom™ x7211RE SoC Processor
Intel® Atom™ x7213RE SoC Processor
Intel® Atom™ x7433RE SoC Processor
Intel® Atom™ x7835RE SoC Processor
1 x 262-pin DDR5 4800 SO-DIMM, Up to 16GB
1 x 262-pin DDR5 4800 SO-DIMM, Up to 16GB
WAFER-IMX8MP Front

WAFER-IMX8MP

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS
NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)
NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)
4GB LPDDR4-3200
4GB LPDDR4-3200
WAFER-RK3588 Front

WAFER-RK3588

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~ 60°C and RoHS
Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)
Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)
On-board 8GB LPDDR4x
On-board 8GB LPDDR4x
WAFER-EHL-x6000EWC Front

WAFER-EHL-x6000

3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C
● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
On-board LPDDR4x 8GB
On-board LPDDR4x 8GB

WAFER-EHL2

3.5” SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, -10°C ~60°C
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard 8GB 3200MHz LPDDR4x support up to 16 GB
Onboard 8GB 3200MHz LPDDR4x support up to 16 GB
HYPER-RK3566 Front

HYPER-RK3566

Pico-ITX SBC with RK3566, 2/4GB LPDDR4/4X, 16/32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1 x 1GbE RJ45, 1 x USB3.0, 3 x USB2.0, 2 x (RS232+RS485), Options: WIFI5/6 + BT, 12V DC IN, Debian 10 / Android 12, RoHS
Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)
Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
WAFER-RK3568 Front

WAFER-RK3568

3.5”SBC supports RK3568 with 2/4GB LPDDR4/X, 16/32GB eMMC. Triple display with HDMI™, MIPI and eDP. USB 3.0 x 2. Built-In USB 2.0 x 3. RoHS compliant
Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)
Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB
WAFER-ADL-N Front

WAFER-ADL-N

3.5 SBC supports Intel® Alder Lake-N/Amston Lake on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, -10°C ~ 60°C
12th/13th Gen. Intel® Alder Lake-N/Amston Lake on board SoC
12th/13th Gen. Intel® Alder Lake-N/Amston Lake on board SoC
On-board LPDDR5x 8GB, up to 16GB
On-board LPDDR5x 8GB, up to 16GB
WAFER-ADL-P Front

WAFER-ADL-P

3.5 SBC supports Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS
12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
On-board LPDDR4x 3200 MHz 8GB up to 32GB
On-board LPDDR4x 3200 MHz 8GB up to 32GB
NANO-EHL Front

NANO-EHL

EPIC SBC supports Intel® Celeron® on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI™, iDPM, M.2 A key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, iAUDIO, PCIe x4 (x2 signal) for riser card and RoHS
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
LPDDR4x-3200Gbps 8GB, up to 16GB
LPDDR4x-3200Gbps 8GB, up to 16GB
NANO-ADL-P Front

NANO-ADL-P

EPIC SBC supports Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with Dual HDMI™, DP, IDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, iAUDIO, PCIe x4 for riser card and RoHS
12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
On-board LPDDR4x 3200 MHz 8GB up to 32GB
On-board LPDDR4x 3200 MHz 8GB up to 32GB
HYPER-EHL

HYPER-EHL

Pico-ITX SBC supports Intel® Celeron J6412/N6210 on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™, iDPM, M.2 M key, USB 3.2, iSATA 6GB/s, COM, PCIe x4 for riser card and RoHS
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)
● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)
LPDDR4x-3200Gbps 4GB,up to 8GB
LPDDR4x-3200Gbps 4GB,up to 8GB
WAFER-EHL-J6412_Embedded_Board supports Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)

WAFER-EHL

3.5" SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, -10°C ~60°C
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
Onboard LPDDR4x-3200MHz support up to 8 GB
Onboard LPDDR4x-3200MHz support up to 8 GB
IEI WAFER-TGL-U Embedded Board

WAFER-TGL-U

3.5" SBC supports Intel® Tiger Lake-UP3 Core I™ Celeron® Proccessor, with HDMI™, DP, iDPM, triple 2.5 GbE Lan port, USB 3.2, M.2, SATA 6Gb/s, COM, Audio and RoHS, -10°C ~60°C
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
11th generation Intel® mobile Tiger Lake-UP3 on-board processor
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)
WAFER-JL Embedded Board

WAFER-JL

3.5" SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor with Dual Displays, DDR4, Triple Intel® 2.5 GbE, USB3.2, M.2, SATA, COM, SoC, RoHS
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
WAFER-BT Embedded Board

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
Intel® Atom™/Celeron® on-board SoC
Intel® Atom™/Celeron® on-board SoC
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)

ETX / COM EXPRESS / Q7

IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.
CPU Socket / Chipset
Memory

HUK-CR680

COM-HPC Client size C Module, supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, quadruple independent display, Dual 2.5 GbE, PCIe Gen 5, SATAIII, USB 3.2, RoHS
CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E
CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E
2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)
2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)

iQ7-EHL

Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS
Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS
Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS
LPDDR4x-3200Gbps 8GB,up to 16GB
LPDDR4x-3200Gbps 8GB,up to 16GB

iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB

ICE-DB-T6

Baseboard for COM Express Type 6 Module
Supports COM Express Compact/Mini module using connector pin out Type 6
Supports COM Express Compact/Mini module using connector pin out Type 6
