- 8-bit x GPIO
- Front Panel
- 2 x USB 2.0
- 1 x RS-232
- 2 x RS-232
- 3 X 2.5GbE
- 4 x USB 3.2 Gen 1
- 2 x USB 2.0
- 12V DC Input
- 18-bit x GPIO
- 22 x USB 2.0
31 x RS-232
- 68-bit x GPIO
82 x RS-232
- 94 x USB 3.2 Gen 1
- 102 x USB 2.0
1312V DC Input
The performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.
Delivers Triple Low-Latency 2.5G LAN Powered by Intel
The on-board triple 2.5GbE controllers enable the KINO-DH420 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming.
IEI KINO-DH420 features unprecedented network connectivity with three rear 2.5 Gigabit LAN ports, and it is small enough to fit into any space confined situations.
Delivers HDMI™+DP 4K Resolution for Real-time Monitoring
Running with Intel® UHD Graphics of 11th Gen processor at 800 MHz allows the system to display videos and images in stunning 4K resolution via HDMI™ 1.4b and DP 1.4 dual independent display. The enhanced visual quality responses the demand of high precision display.
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily.
M.2 2230 A Key for Wi-Fi / Bluetooth
The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.
Multi-functional M.2 B Key Slot
The KINO-DH420 also offers one M.2 3042/3052/2242/2280 B key socket supporting AI accelerator / NVMe SSD as well as SIM card slot for LTE deployment.
*Among the following three options (A, B & C), only one function can be adopted.
M.2 B Key (3042/3052) with SIM Slot for LTE Communications
The M.2 B key (3042/3052) socket supporting PCIe Gen3 x2 and USB 2.0 signals allows you to use a dedicated LTE radio frequency to ensure secure and delay-free data transmission in smart manufacturing.
M.2 2242/2280 B Key for NVMe SSD
The M.2 2242/80 B key socket with PCI Gen3 x2 bandwidth supports up to 16Gbps data-transfer speeds. The sequential read/write speed is 2.5 times faster than SATA 6Gb/s. It's the perfect choice for installing an operating system or application drive to provide fast data access.
M.2 2280 B Key Accelerates AI Deployment
With the M.2 2280 B-key socket and PCI Express® 3.0 x2 signals, system integrators could choose from IEI's Mustang-M2BM-MX2, AI accelerator card featuring the Intel® Movidius™ Myriad™ X VPU (Vision Processing Unit), and enhance all vision inference applications such as facial recognition, vehicle registration plate recognition, and many other machine vision applications.
The Mustang-M2BM-MX2 card equipped with two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference computing.Learn More
One PCIe Gen3 x16 Slot Easily Adds on GPGPU, AI Accelerator, Frame Grabber and More
The KINO-DH420 brings high performance industrial Edge with one PCIe x16 slot. This provides a greater range of support for GPGPU, frame grabber card and AI accelerators. It is designed for the most intensive applications from Edge AI system to automated optical inspection (AOI).
With years of experience,
IEI is continuously improving the design and production
quality and aiming to achieve customer satisfaction.
|Form Factor||Mini-ITX Motherboard|
|CPU||LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor|
|Memory||Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB|
|Memory Max.||up to 64GB|
|Cooling method / System Fan||
1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
|Dimensions (LxWxH) (mm)||170mm x 170mm|
|Storage||2 x SATA : 6Gb/s (no RAID)|
|1 x M.2(NGFF) : B key (support NVME storage)|
|Display Output||1 x HDMI™ up to 4096 x 2160 @30Hz|
|1 x Display Port up to 4096 x 2304 @60Hz|
3 x LAN -
LAN1: Intel® i225LM GbE controller (colay i225v)
LAN2: Intel® i225v GbE controller (colay i225LM)
LAN3: Intel® i225v GbE controller (colay i225LM)
|Audio||1 x Line out|
|1 x Mic|
|1 x Front Audio : 2x5 pin|
|1 x HD Audio : Realtek ALC888S HD codec|
|I/O Interface||2 x External RS-232|
|1 x Internal RS-232 : 2x5 pin, P=2.00|
|1 x Internal RS-422/485 : RS-485 support AFC|
|2 x External USB 2.0 : Type-A|
|4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)|
|2 x Internal USB 2.0 : 2x4 pin, P=2.00|
|1 x DIO : 8-bit digital I/O (2x5 pin)|
|Expansion||1 x PCIe x16|
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0)
|TPM||Intel® PTT(TPM 2.0)|
|Power Consumption||12V@12.408A (Intel® Core™ i9-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled)|
DC 12V input
1 x ATX power connector (2x4 pin)
1 x DIN 4-pin DC Jack
Support AT/ATX mode
|Operating Temperature||0°C – 60°C|
|Storage Temperature||-30°C – 70°C|
|Humidity||5% ~ 95%, non-condensing|
|Safety & EMC||CE/FCC compliant|

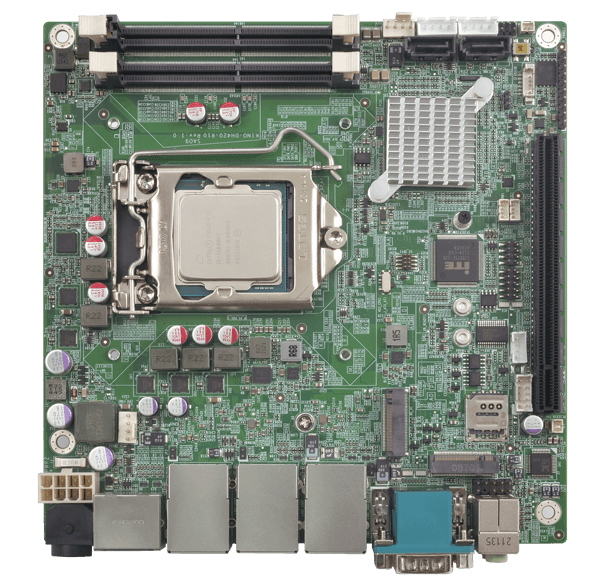

|KINO-DH420-R10||Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS|
