New PCI Express Gen5 Ready for
Higher Bandwidth and Future Upgrade
Adopting the latest generation of PCI Express standard, the IMBA-R680 equips a total of 7 PCIe slots to provide multiple high-bandwidth expansions for peripherals like graphics cards, SSD, capture cards or wireless cards. Three of them are connected directly with the CPU, bypassing the bottleneck between the CPU and chipset, and further reducing latency. PCIe 5.0 at 32 GT/s offers twice that transfer rate of the current PCIe 4.0 offering. It not only provides backwards compatibility but also capability for future upgrade when more advanced technologies are emerging.
Reliable RAID Storage Secures Data Processing
The IMBA-R680 offers four SATA 6Gb/s interfaces to expand storage capacity and enable fast data transfer. The equipped Intel R680E chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure through different RAID levels (RAID 0, 1, 5 and 10) to increase performance and/or provide automatic protection against data loss from drive failure.
Stunning 4K Resolution and Triple Display
The IMBA-R680 is integrated with Intel® UHD Graphics driven by Intel® Xe Architecture to deliver videos and images in stunning 4K resolutions. Triple independent display is supported via DisplayPort 1.4, HDMI™ and IEI iDPM interface. The iDPM interface supports diverse display modules, enabling users to add LVDS, eDP or VGA display interface upon requirements. Up to 4K@60 high-resolution support provides great benefits for applications that demand on-image resolution and color realism at the edge.
2.5GbE High-Bandwidth and Low-Latency Data Transmission
The two RJ45 LAN ports both provide 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of smart surveillance and AI recognition to deliver lightning-fast transmission speed between devices.
Abundant Connectivity Options for Additional Peripherals
12 USB Ports up to 10Gbps for More Possibilities
USB ports have become one of the most popular ports for computers to connect with peripherals in industrial applications. Its features in high transfer speed, power management and backward compatibility make USB an ideal option for a communication port. The IMBA-R680 is designed with 12 USB ports, allowing you to connect various devices with up to 10Gbps data transfer speed. The peripherals requiring high bandwidth such as high-resolution cameras, HIDs (human interface devices) and other edge IoT devices can all be connected through the reliable USB interfaces in providing better data collection and acquisitions.
6 COM Ports Bring Intelligence to Legacy
Over decades, serial ports are still extremely reliable for connecting industrial computers with legacy peripherals. The IMBA-R680 comes with six serial ports to connect to legacy factory machinery and devices, allowing enterprises to bring intelligence to legacy equipment without having to replace them. In addition, the RS-485 ports support Automatic Flow Control (AFC), which can ensure UART buffers are never overrun so data transmission between devices can be complete without the risk of losing data.
|Form Factor||ATX Motherboard|
|CPU||LGA1700 socket supports 12th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)|
|Memory||Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs supported up to 128GB (ECC&non-ECC support)|
|Cooling method / System Fan||
1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
|Dimensions (LxWxH) (mm)||244mm x 305mm|
|Storage||4 x SATA : RAID 0/1/5/10 supported|
|2 x M.2(NGFF)|
|Display Output||1 x HDMI™ : up to 3840*2160 @30Hz|
|1 x Display Port : up to 4096 x 2304 @60Hz|
|1 x iDPM : support iEi eDP/ LVDS/ VGA module|
2 x LAN -
LAN1: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
LAN2: Intel® I225V 2.5GbE controller
|Audio||1 x HD Audio : 1 x iAUDIO supports IEI AC-KIT-888S Audio Kit (2x5 pin)|
|I/O Interface||2 x External RS-232/422/485 : RS-485 support AFC|
|4 x Internal RS-232 : 2x5 pin, P=2.54|
|2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A)|
|4 x Internal USB 2.0 : 2x4 pin, P=2.00|
|2 x Internal USB 3.2 Gen1x1 : 5Gb/s (2 X 10pin, P=2.00)|
|4 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)|
|Expansion||2 x PCIe x16 : Gen5 slot with x8 Signal|
|3 x PCIe x4 : Gen4 open-end|
|2 x PCIe x1 : Gen3 x1|
|2 x M.2(NGFF) : M Key (2242/2280, PCIe x4) NVMe supported|
3.3V@0.89A, 5V@10.05A, 12V@6.05A, 5VSB@0.64A
(Intel® Core™ i7-12700E CPU with four 16 GB 4800 MHz DDR5 memory, EuP mode enabled)
ATX/AT power supply
Support AT/ATX mode
|Operating Temperature||0°C ~ 60°C|
|Storage Temperature||-30°C ~ 70°C|
|Humidity||5% ~95%, non-condensing|

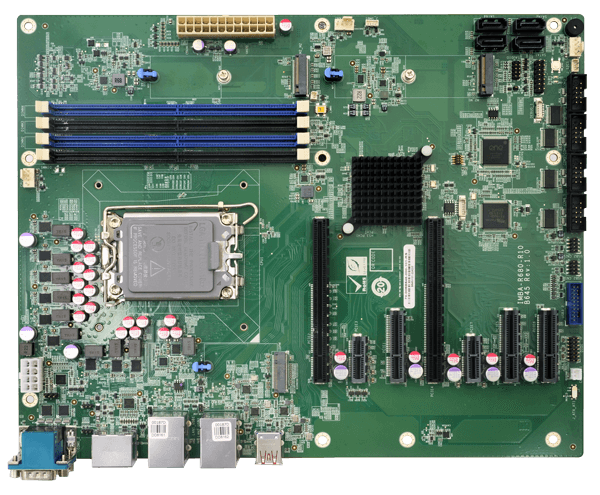

|IMBA-R680-R10||ATX motherboard supports LGA1700 12th/13th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS|
