» Support Intel® H610/H610E chipset
» Support two Intel® I225V 2.5GbE Ethernet controllers
» Support triple independent display via HDMI™, DP and iDPM
» Support one PCIe x16, one M.2 A Key, one M.2 M Key expansions
» Support two USB 3.2 Gen 2, two USB 3.2 Gen 1, four USB 2.0, with up to 10Gb/s transfer speed
» Support two RS-232/422/485, four RS-232 and two SATA ports

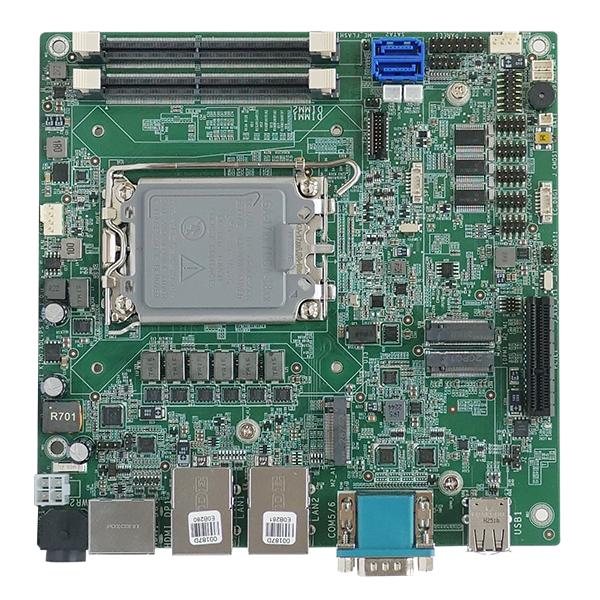

The cost-friendly motherboard from IEI, KINO-ADL-H610, has been expertly engineered to fully unleash the potential of 13th and 12th Generation Intel® processors on socket LGA 1700. It comes in a compact form factor, condensing powerful computing capabilities and AI acceleration for space-constrained industrial applications. These applications include uses such as autonomous mobile robots (AMR) and optical inspection on the factory floor, simplifying the adoption process for customers.
High-Speed 13th/12th
Gen Intel Core Processors
Triple Independent Display:
DP 1.4a, HDMI 2.0b, iDPM
Free to Choose Display Interface
with IEI iDPM Modules
PCIe Gen4 x16
Expansion
Dual 2.5Gb
Ethernet
Dual M.2 M key with PCIe Signal
Support NVMe Storage
Specifications
Performance
Connectivity
Breakthrough Performance Achieved by
13th Gen Intel® Core™ Desktop Processors
Supporting both 12th and 13th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processors up to 65W on Intel's performance hybrid architecture, the KINO-ADL delivers the next generation of breakthrough core performance for heavy IoT workload consolidations. With up to 32 graphics execution units, it allows for a high degree of parallelization for AI workloads, complemented by built-in AI acceleration from Intel® Deep Learning Boost (Intel® DL Boost) and the Intel® Distribution of OpenVINO™ toolkit.
Triple Independent Displays with up to 4K Resolution
longside IEI's unique iDPM slot design, this gives customers not only a choice of up to three display options, but also perfect for creating slimline Panel PC solutions. Furthermore, enhanced Intel® UHD Graphics driven by Xe architecture deliver vibrant, high-quality visual support for 4K displays.
Free to Choose Display Interfaces with iDPM Modules
IEI's iDPM connector supports versatile display outputs. The iDPM display converter boards enable the KINO-ADL to meet customers' diverse display interface requirements, including legacy display ports, VGA and LVDS, or eDP for TFT LCD connections.
Ultrafast Transfer Speed
Connectivity
Expansion
Native 10Gbps USB 3.1 Gen 2 Type-A Support
With dual backward-compatible USB 3.1 Gen 2 Type-A ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Intel® 2.5Gb Ethernet
Intel 2.5Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput, resulting in faster and smoother data transfers.
PCIe Gen4 x16 Slot
The KINO-ADL offers PCIe Gen4 slot connectivity for GPUs and AI accelerators. PCIe Gen4 offers twice the data transfer speed of PCIe Gen3, making it robust enough to handle high loads effortlessly.
PCIe Gen3 M.2 Support
With x4 PCIe Gen3 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, ensuring that your industrial workload operates as fast as possible.
Dimensions
Optional Accessories
Converter Board
Cables and Connectors
CPU Cooler
32205-000702-200-RS
• Serial port cable
• Dimension: (L) 230mm
• 10-pin (2x5) connector
Recommend for you
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX Motherboard |
| System | |
| CPU | LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| Chipset | Intel® H610/H610E |
| Memory | Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB |
| Memory Max. | 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | 700g |
| Storage | |
| Storage | 2 x SATA |
| 1 x M.2(NGFF) : 1 x M.2 M key (2242/2280, PCIe Gen3 x 4) | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2304 @60Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet |
2 x LAN - LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO supports IEI AC-KIT-888S Audio Kit (2x5 pin) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A) | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) | |
| Expansion |
1 x PCIe x16 : Gen4 slot with x16 Signal **Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storage devices |
|
2 x M.2(NGFF) - 1 x M.2 M key (2242/2280, PCIe Gen3 x 4) 1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0) for wifi/BT |
|
| Power | |
| Power Consumption |
3.3V@0.96A, 5V@6.49A,12V@5.95A, 5VSB@1.05A (Intel® Core™ i9-12900E CPU with two 16 GB 3200 MHz DDR4 memory, max. loading, EuP mode enabled) |
| Power Supply |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| KINO-ADL-H610-R10 | mini-ITX SBC supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
