iDPM-LVDS

eDP to LVDS Connector converter board (Only for IEI iDPM slot)

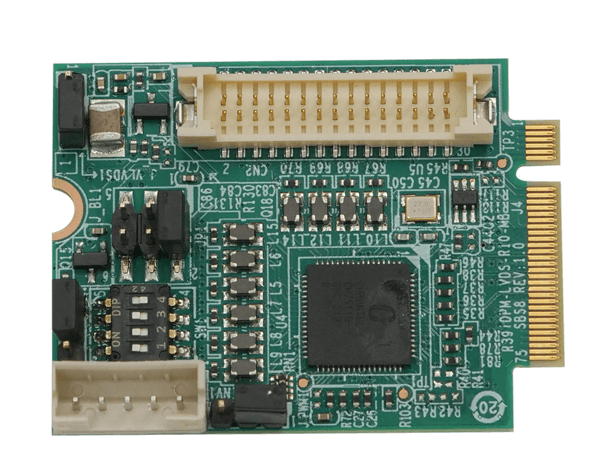

iDPM-LVDS converter card
  • iDPM-LVDS converter card
» eDP to LVDS output
» Support up to 1920 x 1200 resolution
» Only for IEI iDPM slot

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 40 mm x 30 mm
I/O Interface
Display Output 1 x LVDS: 24-bit dual-channel, up to 1920 x 1200
Power
Power Supply On board 3.3V ~ 12V
Environment
Operating Temperature 0°C – 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

iDPM-LVDS-R10 eDP to 24 bit dual channel LVDS converter board converter board (For iEi Display Module)

Package Contents

Package Content
  • 1 x iDPM-LVDS converter module
