ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, iAUDIO and RoHS

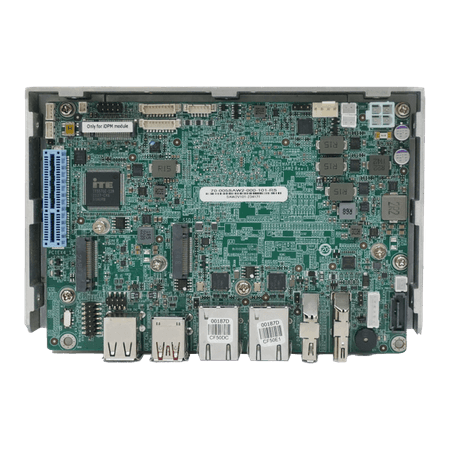

IMBA-ADL-Q670 Front
IMBA-ADL-Q670 Side
  • IMBA-ADL-Q670 Front
  • IMBA-ADL-Q670 IO
  • IMBA-ADL-Q670 Side
» LGA1700 Intel® 12th/13th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)
» Dual-channel DDR4 3200MHz supported up to 128GB
» Support triple independent display via HDMI™, DP and iDPM
» Support one PCIe x16, three PCIe x4, two PCIe x1, one PCI expansions
» Support two M.2 M keys and four SATA for storage




13th Gen Intel® Core™ Desktop Processors Achieve Breakthrough Performance

The IMBA-Q670 is a performance-oriented ATX industrial motherboard constructed around the latest Intel® Q670E chipset that balances value with premium hardware. The ATX industrial motherboard supports 13th Gen Intel® Core™ processor family featuring hybrid architecture with up to eight Performance-cores (P-core) and up to 16 Efficient-cores (E-core) and delivering powerful computing for heavy workloads applications in intelligent automation, machine learning, data analytics, and even industrial IoT artificial intelligence framework.

Triple Independent Displays with up to 4K Resolution

Enhanced Intel® UHD Graphics driven by Xe Architecture12 deliver vibrant, high-quality visual support for up to 3 simultaneous 4K displays.

HDMI™ 1.4

up to 4096 x 2304 @30Hz

iDPM Slot

VGA and LVDS, or eDP for TFT LCD connection

DP 1.4a

up to 4096 x 2304 @60Hz

Free to Choose Display Interfaces with iDPM Modules

More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow the IMBA-ADL-Q670 to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.


eDP to eDP converter board


eDP to VGA converter board


eDP to LVDS converter board

Support IPMI 2.0 Management Card with Out-of-Band Management Capability

The IMBA-ADL-Q670 ATX motherboard supports IEI's IPMI 2.0 management card, IRIS2-2620 and IRIS2-2600. IEI's iRIS modules compliant with IPMI 2.0 industry standard specifications simplify the management process of remote edge devices and provide remote monitoring and function control. This is an OS-independent, cross-platform and out-of-band management solution, enabling easy access and configuration of system management options through a web page and KVM redirection. No matter where your edge devices are located, you can remotely manage them even in the absence of an operating system.

Dual Intel® 2.5G Ethernet

The IMBA-ADL-Q670 is equipped with two Intel 2.5GbE controllers, which are ready for the latest-performance router. With two 2.5GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the IMBA-ADL-Q670 can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.

Lower CPU workload

High TCP & UDP throughput

Multiple PCIe x16/4 & PCI Expansion Slots

There is an array of expansion interfaces on the IMBA-ADL-Q670 to meet different demands of each customer. It supports up to three PCI, one PCI, three PCIe x4 , two PCIe x1 and one PCIe x16, which can be used to install a variety of interface cards, including motion control cards, frame grabber cards, video capture cards, I/O cards, communication cards, AI accelerator cards and GPU cards.

PCIe Gen3 x1

PCIe Gen4 x16

PCIe Gen4 x4


Dual PCIe Gen3 M.2

Dual PCIe Gen3 M.2 slots provide NVMe SSD support for an incredible performance boost. Supporting both 2242 and 2280 formfactors makes the Addtionally, the innovative M.2 Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the SSD, eliminating the need for a screw driver.

Hardware Spec.

Form Factor
Form Factor ATX Motherboard
CPU LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset Intel® Q670/Q670E
Memory Four 288-pin3200 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB
Memory Max. 128GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 244mm x 305mm
Net Weight 700g
Storage 2 x M.2(NGFF) -
1 x M Key (2242/2280, PCIe x4 )
1 x M Key (2242/2280, PCIe x2 )
4 x SATA : RAID 0/1/5/10 supported
I/O Interface
Display Output 1 x Display Port : up to 4096 x 2304 @60Hz
1 x HDMI™ : up to 4096 x 2304 @30Hz
1 x iDPM : support iEi eDP/ LVDS/ VGA module
Ethernet 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
LAN2: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
Audio 1 x HD Audio : iAUDIO supports IEI AC-KIT-888S Audio Kit (2 x 5 pin)
I/O Interface 2 x External RS-232/422/485 : RS-485 support AFC
2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A)
4 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)
4 x Internal RS-232 : 2 x 5 pin, P=2.54
4 x Internal USB 2.0 : 2 x 4 pin, P=2.54
2 x Internal USB 3.2 Gen1x1 : 2 x 10 pin, P=2.00 pin wafer (5Gb/s)
Expansion 2 x M.2(NGFF) -
1 x M Key (2242/2280, PCIe x4 ) NVMe support
1 x M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x PCI Slot
2 x PCIe x1 (Gen3)
1 x PCIe x16 (Gen4 slot with x16 Signal)
3 x PCIe x4 (Gen4 open-end)
Power Consumption 3.3V@1.04A, 5V@10.38A, 12V@5.76A, 5VSB@0.39A (Intel® Core™ i9-12900E
CPU with 8 GB 3200 MHz DDR4 memory, EuP mode enabled)
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Operating Temperature 0°C~60°C
Storage Temperature -30°C~70°C
Humidity 5% ~95%, non-condensing

Ordering Information

IMBA-ADL-Q670-R10 ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, iAUDIO and RoHS

Package Contents

Package Content
  • 1 x IMBA-ADL-Q670 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
