Network Appliance
X86-based
IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86-based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment). [Learn More about PUZZLE Series]
CPU
Chipset
RAM
Rack Height
Drive type

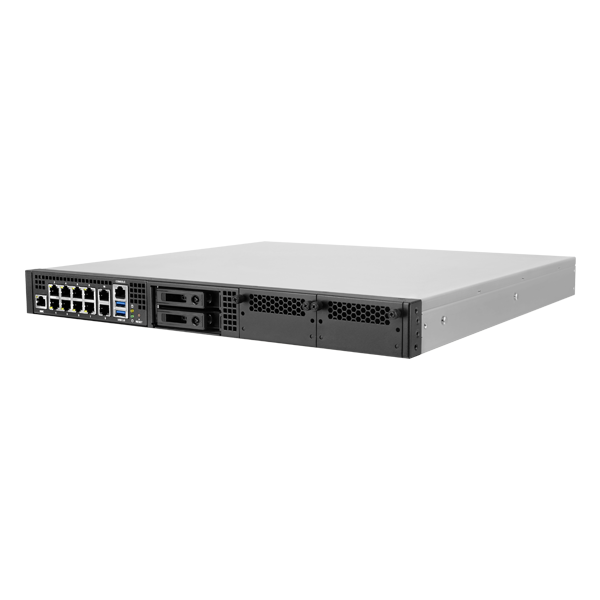

PUZZLE-A001

1U Rackmount Network Appliance with AMD EPYC™ Embedded 3000 series processor, 1 NMS & 2 PCIe x4 slots
AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
Integrated in CPU 4 x DDR4 2666 MHz ECC or non-ECC UDIMM Support RDIMM
UDIMM Up to 64GB
RDIMM Up to 128GB
1U
1U 2 x 2.5” SSD Bay
1 x M.2 B key (SATA & USB 3.1 Gen 1)

PUZZLE-A002

1U Rackmount Network Appliance with AMD R-Series RX-421ND processor, Support 6 x GbE RJ45
AMD R-Series RX-421ND processor, 4C, up to 3.4 GHz Integrated in CPU 2 x DDR4 2400MHz Non-ECC UDIMM
1U
1U 2 x 2.5” SSD/HDD Bay
1 x M.2
1 x eMMC
IEI PUZZLE-IN001 x86-based appliance

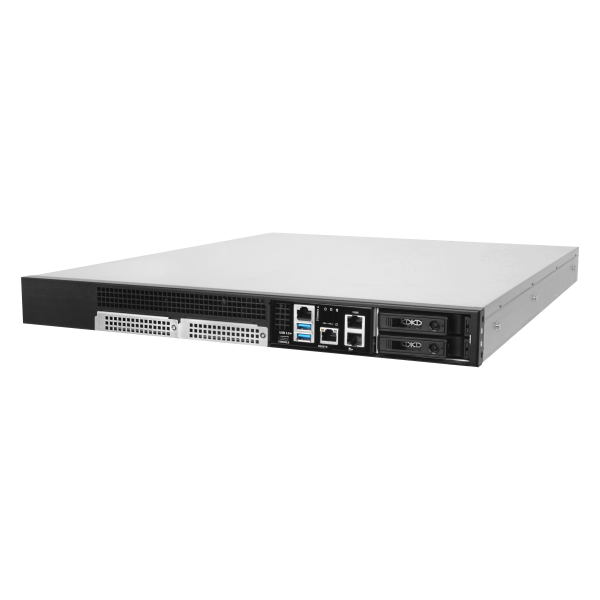

PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots
Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
Intel® C246 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
1U
1U 2 x 2.5” SSD/HDD Bay
1 x M.2 B key 2260/2280

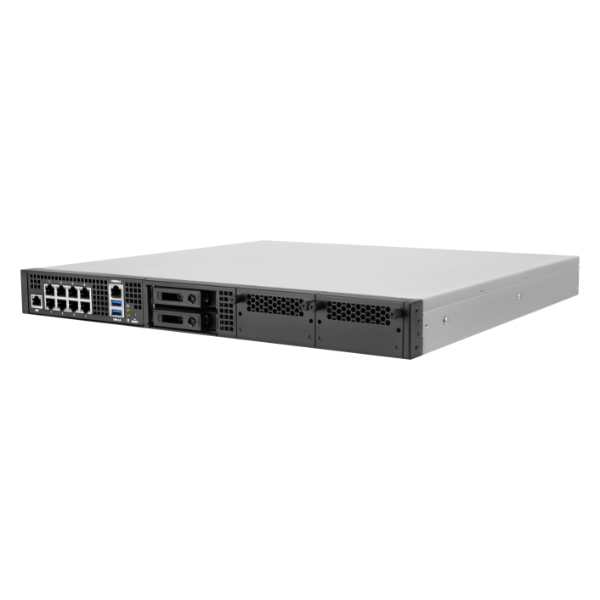

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots
Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
Intel® C246 4 x DDR4 2400MHz ECC/Non-ECC UDIMM up to 64 GB
1U
1U 2 x 2.5” SSD/HDD Bay
2 x External USB 3.0 Gen 1 (5Gb/s)
1 x PCIe mini Card Slot (PCIe & SATA, USB 2.0)
1 x M.2 2260/2280 B Key (SATA and USB 3.2 Gen 1)

PUZZLE-IN002

1U Rackmount Network Appliance with 8th Generation IntelCore. i7/i5/i3, Pentiumor CeleronProcessor, 1 PCIe slots
IntelPentiumGold G5400T Processor, Intel® Gen8 Core™ i3-8100T processor Intel® H310 2 x DDR4 2400MHz Non-ECC UDIMM
1U
1U 1 x 2.5” SSD/HDD Bay
1 x M.2 A key
PUZZLE-IN003B compact network firewall appliance for SMB

PUZZLE-IN003B

Desktop Network Appliance with Intel Atom C3000 processor up to 16 CPU cores support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB
Intel Atom processor C3758 16M cache, up to 2.20 GHz
Intel Atom processor C3558 8M cache, up to 2.20 GHz
Integrated in CPU 4 x DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM, Support RDIMM
UDIMM up to 64GB
RDIMM up to 128GB
Desktop eMMC 32GB

PUZZLE-IN004

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot
Intel Xeon D-2145NT processor 8-core, 11M cache, 1.90 GHz
Intel Xeon D-2146NT processor 8-core, 11M cache, 2.30 GHz
IntelXeon D-2166NT processor 12-core, 16.5M cache, 2.00 GHz
Intel Xeon D-2187NT processor 16-core, 22M cache, 2.00 GHz
Integrated in CPU 8 x DDR4 2666MHz ECC (by CPU) or non-ECC
UDIMM up to 128GB
RDIMM up to 256GB
LRDIMM up to 512GB
1U
1U 2 x 2.5” SSD/HDD Bay
ARM-based
Based on ARM v8 architecture, ARMADA® 8040 SoC is capable of realizing various SDN deployment. Advanced Exception Layer (EL) provides support for virtual functions such as Linux KVM and Container with secured or non-secured protection. [Learn More about PUZZLE Series]
CPU
Chipset
RAM
Rack Height
Drive type

PUZZLE-M801

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip
Marvell® Armada® 8040 ARM v8 A72, 4C System-on-Chip (SoC), up to 2.0GHz
N/A
N/A 1 x DDR4 2400MHz Non-ECC UDIMM
1U
1U 1 x 2.5” SSD/HDD Bay
1 x M.2 B key
Network Module
Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.
PulM-10G2SF-X710 Network Interface Controller
icon-new

PulM-10G2SF-X710

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface

PulM-10G4SF-MLX

Mellanox ConnectX-4 Lx based Network Interface Card support Quad 10GbE with 4 x SFP+ by 2 PCIe 3.0 x 4 Interface

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface

PulM-10G4SF-XL710-BP

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.

PulM-10G4T-AQC107

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface

PulM-1G4T-I211

Intel® Ethernet Controller I211 based Network Interface Card with 4 x GbE RJ-45 by 4 PCIe 2.0 x2 Interface *with by pass funtion (by sku).

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface

PulM-25G2SF-MLX

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface
AI Training Server System
GRAND-C422
The GRAND-C442 is dedicated for AI training tasks based on its wide range of slot support for storage expansion, accelerator cards, video capture, Thunderbolt ™ or PoE add-on cards for unlimited data acquisition possibilities.
  • High-Speed Storage Transmission
  • High Capacity Storage
  • Water Cooling System
  • Hyper Converged Infrastructure
CPU
Chipset
RAM
Rack Height
Drive type

GRAND-C422-20D

AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability
Support LGA-2066 Intel® Xeon® W family processor Intel® C422 ● Total slot: 4 x DDR4 ECC RDIMM/LRDIMM
● Memory expandable up to:256GB (4 x 64GB)
4U
4U 12 x 2.5" / 3.5" drive bay
8 x 2.5" drive bay
1 x M.2 built in on SBC
2 x U.2 SSD drive bay compatible to SATA

GRAND-C422-20D-H

The GRAND-C422-20D is an AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card
Intel® LGA-2066 Xeon® W Family processor C422 Total slot: 4 x DDR4 ECC RDIMM / LRDIMM
Memory expandable up to:256GB (4 x 64GB)
4U
4U 12 x 2.5” / 3.5” drive bay
8 x 2.5” drive bay
All support SAS /SATA
Storage Server
Intel® CPU
IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type

GRAND-AL

Intel® Celeron® J3455 4-core 1.5GHz (burst up to 2.3GHz)
Intel® Celeron® J3455 4-core 1.5GHz (burst up to 2.3GHz)
SoC
SoC Momory slot: 2
Memory up to 8GB
2U : 12, 8 Bay
1U : 4 Bay
2.5” or 3.5” SATA 6Gb/s, 3Gb/s

GRAND-BDE

Intel® Xeon® Processor D-1500 Family Processor
Intel® Xeon® Processor D1500 Family Processor
SoC
SoC Memory slot: 4
Memory up to 128GB
2U : 30, 18 Bay Front: SAS(12Gbps/6Gbps), SATA (6Gbps/3Gbps) SSD
Rear: SATA 6Gb/s and SSD

GRAND-C610

A Double Server powered by dual Intel® Xeon® E5 CPU for computing and storage
FCLGA2011-3 sockets-support Xeon® E5-2600 v3 family Intel® C610 Memory slot:16
Memory up to 1TB
3U : 20 Bay Front: SAS (12Gbps/6Gbps) / SATA (6Gbps/3Gbps) HDDs or 2.5” SAS/SATA SSD
Rear: SAS (12Gbps) SSD or SAS/SATA (6Gbps/3Gbps) SSD
AMD® CPU
IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type

GRAND-MF

AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz
AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz
SoC
SoC Memory slot: 4
Memory up to 64GB
3U : 16 Bay
2U : 12, 8 Bay
2.5” or 3.5” SATA 6Gb/s, 3Gb/s

GRAND-SE

64-Bit Quad-Core AMD® G-Series 2.0GHz
AMD G-Series GX-420MC 64-Bit Quad-Core 2.0GHz
SoC
SoC Memory slot: 2
Memory up to 16GB
2U : 12, 8 Bay
1U : 4 Bay
2.5” or 3.5” SATA 6Gb/s, 3Gb/s
