GRAND-RE

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor

» AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
» 2 x DIMM Slots, up to 32 GB memory (2 x 16GB)
» Support one PCIe Gen3 x8 slot
» Storage expandable via USB port or HBA expansion card

Overview

With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the GRAND-RE is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The GRAND-RE includes two 2.5GbE ports and a PCIe Gen 3 slot, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The GRAND-RE also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the GRAND-RE the preeminent choice to tackle resource-demanding applications and tasks.

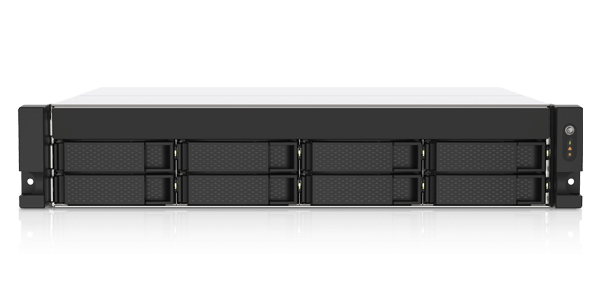

GRAND-RE Storage Server with AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor

Upgrade to 2.5GbE Networking

The GRAND-RE comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed network.

 GRAND-RE comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit.

Extend Functionality with the PCIe Card

The GRAND-GL has a PCIe expansion slot, providing flexibility in extending storage server functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the GRAND-GL as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the GRAND-GL by installing a USB 3.2 Gen2 10Gbpscard.

>> More about Network PCIe Cards
photo description

Hardware Spec.

Form Factor
Form Factor 2U, Rackmount
System
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
Memory Max. 2 x Long-DIMM DDR4
Cooling method / System Fan 2 x 80 mm, 12V DC
Physical Characteristics
Rack Height 2U, 8Bay
Dimensions (LxWxH) (mm) 89 x 482 x 425 mm
Net Weight 9.15 kg
Storage
Storage 8 x 3.5” HDD Bay
8 x SATA
I/O Interface
Ethernet 2 x LAN
I/O Interface 1 x External USB 3.2 Gen1x1
3 x External USB 3.2 Gen2x1
Expansion 1 x PCIe x8
Environment
Operating Temperature 0~40˚C
Humidity 5 to 95% non-condensing, wet bulb:27˚C.

Ordering Information

GRAND-RE-08B-RP-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), AMD Ryzen V1500B, 2x 2.5GbE, 2x 300W PSU
GRAND-RE-08B-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), AMD Ryzen V1500B, 2x 2.5GbE, 250W PSU

Package Contents

Package Content
  • Ethernet cable x 1

  • Power cord x 2 (non RP model only one power cord)

  • Flat head screws (for 2.5” HDD)

  • Flat head screws (for 3.5” HDD)
