PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface

  • Overview

    • 4 x Broadcom BCM5720
    • 8 ports RJ-45 connector
    • 4 PCIe 2.0 x2
    • RoHS compliant

  • Features

    Architecture Diagram

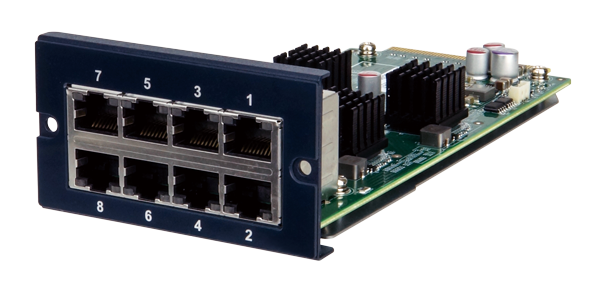

    Pulm-1G8T-BCM5720 network module

    Smart NIC is getting more and more important. Faster networking and data center impose too much networking overhead on the CPU cores, not a doubt, the compute virtualization, software-defined storage (SDS), and hyperconverged infrastructure (HCI) and other network applications, make this problem worse, as they create more east-west traffic.

    Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.

    Offload Functions

    IEI provides four brands of NIC from Aquantia, Intel, Broadcom, Mella-nox, and with 1G, 2.5G, 5G, 10G or 25G different kinds of speed.

    smart_NICs_CPU_comparison
  • Specifications

    • Hardware Spec.

      Spec Item Description
      I/O Interface
      Ethernet 8 x 1 GbE
      Environment
      Operating Temperature 0 ~ 40°C
      Humidity 5%~90% RH, Non-condensing
      Dimensions
      Dimensions 165.50 (L) x 77.8 (W) x 44.2 (H)
      Card Slot Interface
      PCIe 4 PCIe 2.0 x2
      Speed
      Speed GbE
      Controller Chip
      Controller Chip Broadcom BCM5720
    • Ordering Info.

      Item No. Description
      PulM-1G8T-BCM5720-R10 Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface.
    • Package Contents

      • 1 x PulM-1G8T-BMC5720 module

      • 1 x L-shaped T10 Plum Wrench

      • 1 x QIG
