PulM Series Selection Guide

  PulM-25G2SF-MLX network module PulM-10G2SF-X710 NIC PulM-10G4SF-XL710 network module PulM-10G4SF-XL710- BP network module
  PulM-25G2SF-MLX PulM-10G2SF-X710 PulM-10G4SF-XL710
Chipset Mellanox ConnectX-4 Intel® X710 Intel® XL710 Intel® XL710
Bypass No No No Yes
Supported Device
Host Interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Lan Interface SFP+ SFP+ SFP+ Fiber LC (SR &LR)
Speed 25 GbE 10 GbE 10 GbE 10 GbE
Lan Port Number 2 2 4 4
Operating Temp 0ºC ~ 40ºC
Humidity 5% ~ 90% RH, non-condensing
Dimensions (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)

  PulM-10G4T-AQC107 network module PulM-10G4SF-MLX network module PulM-10G4SF-MLX network module PulM-1G8SF-I350 NIC
  PulM-10G4SF-MLX PulM-1G8T-I350 PulM-1G8SF-I350
Chipset Aquantia AQC107 Mellanox ConnectX-4 Intel®I350 Intel®I350
Bypass No No Yes (by sku) No
Supported Device
Host Interface 4 PCIe 2.0x2 2 PCIe 3.0 x4 2 PCIe2.0 x4 2 PCIe2.0 x4
Lan Interface RJ-45 SFP+ RJ-45 SFP
Speed 10 GbE 10 GbE 1 GbE 1 GbE
Lan Port Number 4 4 8 8
Operating Temp 0ºC ~ 40ºC 0ºC ~ 40ºC 0ºC ~ 40ºC 0ºC ~ 40ºC
Humidity 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing
Dimensions (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H)

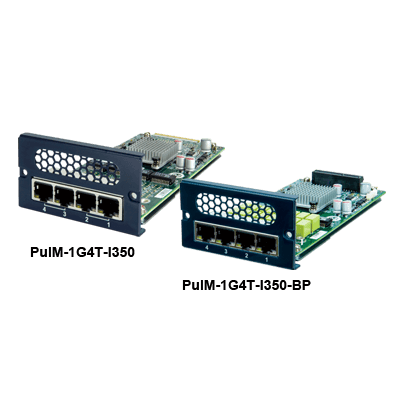

  PulM-1G4T-I211 network module PulM-1G4T-I211-BP Network module PulM-1G4T-I350 Smart NIC PulM-1G4SF-I350 Smart NIC PulM-1G8T-BCM5720 network module
  PulM-1G4T-I211 PulM-1G4T-I211-BP PulM-1G4T-I350 PulM-1G4SF-I350 PulM-1G8T-BCM5720
Chipset Intel® I211 Intel® I211 Intel® I350 Intel®I350 Broadcom BCM5720
Bypass No Yes Yes (by sku) No No
Supported Device
Host Interface 4 PCIe 2.0 x2 4 PCIe 2.0 x2 2 PCIe 2.0 x4 2 PCIe 2.0 x4 4 PCIe 2.0 x2
Lan Interface RJ-45 RJ-45 RJ-45 SFP RJ-45
Speed 1 GbE 1 GbE 1 GbE 1 GbE 1 GbE
Lan Port Number 4 4 4 4 8
Operating Temp 0ºC ~ 40ºC 0ºC ~ 40ºC 0ºC ~ 40ºC 0ºC ~ 40ºC 0ºC ~ 40ºC
Humidity 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing 5% ~ 90% RH, non-condensing
Dimensions (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H) 165.50 (L) x 77.8 (W) x 44.2 (H)
