PUZZLE-IN004

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot

  • Overview
    ● Intel® Xeon D-2100 series processor (Skylake-D) with optional Intel® QAT
    ● Support eight GbE RJ-45 via Intel® I211-AT, four 10 GbE SFP+ and IEI networking module
    ● 8 x 288-pin RDIMM DDR4 2666MHz, RDIMM up to 256GB / LRDIMM up to 512GB
    ● 1 x RJ-45 Console, 1 x USB 3.2 Gen 1 (5Gb/s), 1 x USB 2.0, LCM
    ● 2 x 2.5” SATA drive bay, 2 x M.2 M key for nVME,1 x PCIe Mini with SIM card
    ● Support one PCIe 3.0 x8 slot, one PulM module slot
    ● Redundant PSUs
    ● Support open source software, such as pfSense® and OPNsense®.

  • Features

    Equipped with Intel® Xeon® Processor D-2100 series (Skylake-D) which is optimized for computing & network. Integrated with up to 512GB Quad-channels DDR4, the PUZZLE-IN004 enables lightning-fast multi-tasking with low power consumption. PUZZLE-IN004 is designed with four port 10GbE SFP+ and eight ports of 1GbE (Intel I211) configuration for non-stop network transmission. With a hardware secure multi-tenancy, the Puzzle-IN004 also support Intel® QAT (QuickAssist Technology), PTT(Platform Trusted Technology), Boot Guard,and Intel® AVX-512.

    PERFORMANCE FOR RANGE OF WORKLOADS

    • Intel® AVX-512 new instructions
    • Enhanced security, storage and quality of service features.

    MEMORY IMPROVEMENTS

    • Quad memory channels
    • Up to 512GB memory capacity

    INTEGRATED ACCELERATORS

    • Quad 10Gb Ethernet ports with RDMA
    • Intel® QuickAssist Technology (QAT) encryption and compression

    Comprehensive uCPE Platform
    Intel® Select Solutions for uCPE for CentOS

    To support uCPE platforms, Intel® Select Solutions for uCPE provide a foundation for the development of uCPE products with a solution reference design and verification of performance. The PUZZLE-IN004-XD1 brings the powerful performance of Intel® Xeon® D-2145NT to the edge of communication service provider networks for agile service provisioning. More, PUZZLE-IN004-XD1 has been verified with Intel® Select Solutions for uCPE for CentOS and ADVA for Ensemble Harmony Ecosystem. It is ready to perform as commercial-off-the-shelf uCPE appliance hosting open-source and commercial software solutions based on NFVI architecture.

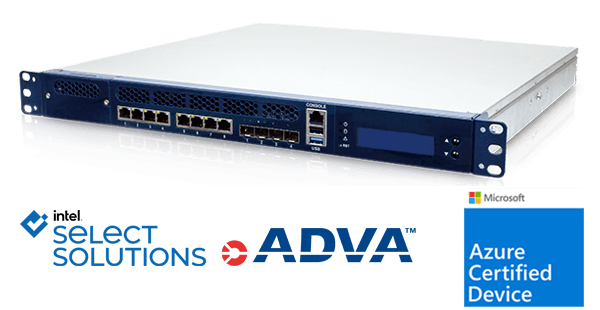

    Network-appliance-with-intel-and-adva-logo


    PUZZLE-IN004-XD1 Specification
    Model
    Base
    CPU
    Intel® Xeon® D-2145NT
    8C16T, 1.9GHz, 65W
    Memory
    16 GB DDR4 2666 MHz

    4 x 4 GB RDIMM
    NIC
    Integrated X722 - 40G Ethernet
    (20Gbps verified based on the SPEC.)
    Intel® QAT
    Integrated
    Storage
    1 x 2.5" Intel® SSD (SSDSC2KB240G8)
    ISS Certificate
    ADVA Certificate

    Support Smarter NICs

    IEI PulM Network Module slots support 8 lanes of PCIe Gen3 signal form CPU. The PCIe from CPU could be configured into two PCIe x4. It can support smart NIC via PulM Network Module

    Dimensions

    PUZZLE-IN004 Network Appliance Introduction Video

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor1U
      System
      CPUIntel® Xeon® D-2145NT processor 8-core, 11M cache, 1.90 GHz
      Intel® Xeon® D-2146NT processor 8-core, 11M cache, 2.30 GHz
      Intel® Xeon® D-2166NT processor 12-core, 16.5M cache, 2.00 GHz
      Intel® Xeon® D-2177NT Processor 14-core, 19.25M Cache, 1.90 GHz
      Intel® Xeon® D-2187NT processor 16-core, 22M cache, 2.00 GHz
      ChipsetIntegrated in CPU
      Memory8 x DDR4 2133/2400MHz ECC DDR4 RDIMM/LRDIMM
      Memory Max.RDIMM up to 256GB
      LRDIMM up to 512GB
      Cooling method / System Fan4 x Cooling fans with smart fan
      Physical Characteristics
      Dimensions (LxWxH) (mm)426x430x44.2
      Net Weight7 kg
      Storage
      Storage2 x 2.5” SSD/HDD Bay Support SATA 3.0 (6 Gbps)
      I/O Interface
      Ethernet4 x SFP+ 10 GbE (Intel® X722 integrated in CPU )
      8 x LAN GbE RJ-45 (NIC: Intel I211-AT)
      I/O Interface1 x External RS-232 Console
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      Expansion1 x PCIe x8 double width
      1 x PCIe mini Card Slot (PCIe + USB 2.0) with SIM card
      2 x M.2(NGFF) M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1)
      Support SATA SSD or 4G LTE module (USB signal)
      Other Features
      TPM1 x TPM 2.0 pin header
      Power
      Power Supply300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      HumidityRelative humidity: 5% ~ 90% non-condensing
      Certifications
      Safety & EMCCE / FCC
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7/ Red Hat/ Fedora EPEL
      Microsoft Windows 10

    • Ordering Info.

      Item No. Description
      PUZZLE-IN004-XD5/64G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2187NT Processor, four 16GB DDR4, two 480GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD4/64G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2177NT Processor, four 16GB DDR4, two 480GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD3/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2166NT Processor, four 8GB DDR4 , two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD2/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2146NT Processor, four 8GB DDR4, two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
      PUZZLE-IN004-XD1/32G/R-R10 1U Rackmount Network Appliance with Intel® Xeon® D-2145NT Processor, four 8GB DDR4, two 240GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS

    • Package Contents

      • ．2 x Power cord

      • ．2 x Rack mounting ears

      • ．6 x Screws for rack mounting ears

      • ．USB to console cable (Option)

      • ．RS-232 to console cable (Option)

      • ．Slide rail (Option)
