PUZZLE-IN001

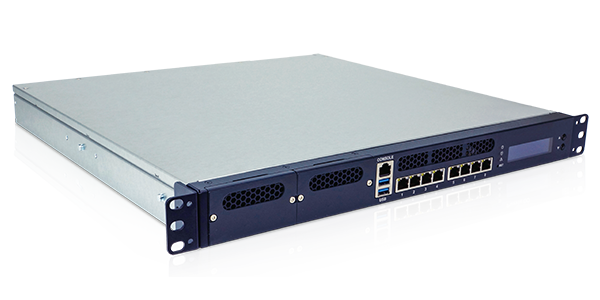

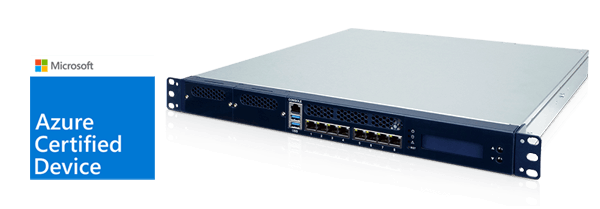

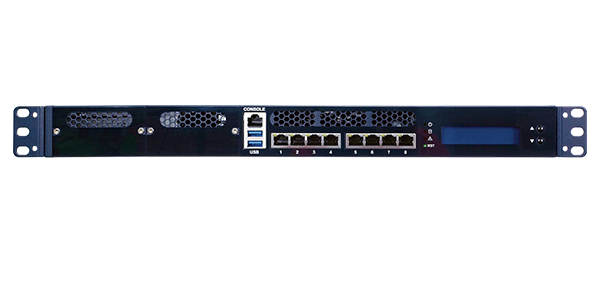

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots

  • Overview
    ● Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor
    ● Support 8 x GbE RJ45 via Intel® I211, and two IEI Network Module
    ● 2 x 288-pin Long DIMM, DDR4 2100MHz ECC & non ECC, up to 32GB
    ● 1 x RJ45 Console, 2 x USB 3.0, LCM
    ● 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.0), 1 x PCIe mini
    ● Support open source software, such as pfSense® and OPNsense®.
    ● Support PCIe x4 and PCIe x8 slot
    ● Redundant PSUs

  • Features
    puzzle network appliance banner

    Overview

    IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).

    puzzle network appliance uCPE

    Breakthrough the Bottleneck of DMI3.0

    The signal of the one PCIe 3.0 x8 slots and one Networking Module slot (PCIe x8) directly connect to CPU instead of DMI 3.0 channel. By doing this, the PCIe 3.0 x8 add-on cards and high speed Networking Modules can run with lower latency and achieve complete AI card and Networking Module performance.

    Breakthrough the Bottleneck of DMI3.0

    Support Various Expansion Card

    puzzle network appliance uCPE Support Various Expansion Card
    puzzle network appliance uCPE Support Various Expansion Card

    PUZZLE Series Ecosystem

    PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.

    network ecosystem


    AI Ready Solution

    PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

    AI ready network appliance

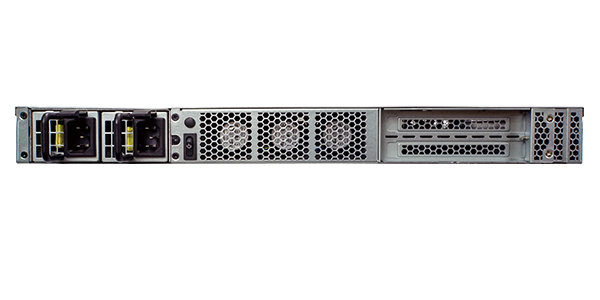

    Hot swappable redundant power supply

    Feature Hot-swappable Redundant Power Supply

    High reliability design ensuring business continuity. The PUZZLE-IN001 series also features a hot-swappable redundant power supply to ensure maximum system uptime. The 300W redundant power supply of PUZZLE-IN001 series 300W and contains two power supply units inside it. Each power supply is capable of powering the entire computer and only one runs at a time. If one fails, the other power supply starts running to keep the computer powered up.

    Two PCIe x4/x8 Full Height Expansion Slots

    PUZZLE-IN001 network appliance - Two PCIe x4/x8 Full Height Expansion Slots

    IEI PulM Network Module

    IEI PulM Network Module Slot

    Smart Fan Operation

    Smart fans design - network appliance

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Gen8 Xeon® E-2136 processor
      Intel® Gen8 Core™ i3-8100T processor
      ChipsetInte® C246
      Memory2 x DDR4 2400MHz ECC/Non-ECC UDIMM
      Memory Max.up to 32 GB
      Cooling method / System Fan4 x Cooling Fans with Smart Fan
      Physical Characteristics
      Rack Height1U
      Dimensions (LxWxH) (mm)426x430x44.2
      Net Weight7 kg
      Storage
      Storage2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
      1 x M.2(NGFF) 3042/2260 M.2 B key (SATA 3.0 / USB 3.2 Gen1)
      Support SATA SSD and 4G LTE module
      I/O Interface
      Ethernet8 x LAN GbE RJ45 (Inteli211-AT)
      I/O Interface1 x External RS-232 Console
      2 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 Pin header
      Expansion1 x PCIe x8
      1 x PCIe x4
      1 x PCIe mini Card Slot PCIe 3.0 & SATA 3.0, USB 2.0
      Other Features
      TPM1 x TPM 2.0 Pin header
      Power
      Power Supply300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% non-condensing
      Certifications
      Safety & EMCCE / FCC
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7/ Red Hat/Fedora EPEL
      Microsoft Windows 10

    • Ordering Info.

      Item No. Description
      PUZZLE-IN001-i3T/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-i3T/16G/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 16GB DDR4, two 256GB SSD, and eight 1GbE, two PulM slots, two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-XE/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-XE/16G/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, 16GB DDR4, two 256GB SSD, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-R-R11
      * A CPU heatsink must be purchased separately      		 1U Rackmount Network Appliance support Intel® Gen8 Xeon®E3,  Core™  i3, Pentium® or Celeron® processor, two DDR4 slots, and eight 1GbE , two PulM slots, two PCIe expansion, Redundant Power, RoHS

    • Package Contents

      • ．2 x Power cord

      • ．2 x Rack mounting ears

      • ．6 x Screws for rack mounting ears

      • ．USB to console cable (Option)

      • ．RS-232 to console cable (Option)

      • ．Slide rail (Option)

      • ．CPU Heatsink (TDP:80W) (Option)

      • ．CPU Heatsink (TDP:35W) (Option)

      • ．HDMI cable (Option)
