PulM-1G4T-I211

Intel® Ethernet Controller I211 based Network Interface Card with 4 x GbE RJ-45 by 4 PCIe 2.0 x2 Interface *with by pass funtion (by sku).

  • Overview
    • 1 x Intel® Ethernet Controller I211-AT
    • 4 ports RJ-45 connector
    • LAN Bypass (by sku)
    • 4 x PCIe 2.0 x 2
    • RoHS compliant


  • Features

    Architecture Diagram

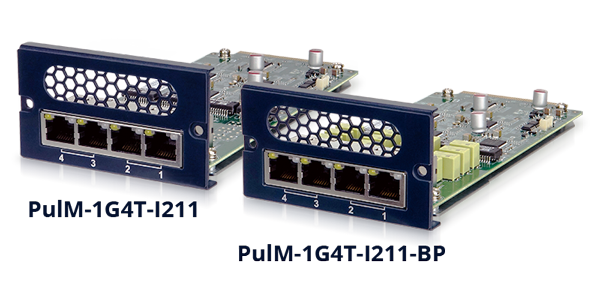

    PulM-1G4T-I211

    PulM-1G4T-I211 network module

    PulM-1G4T-I211-BP

    Pulm-1G4T-I211 network module

    Smart NIC is getting more and more important. Faster networking and data center impose too much networking overhead on the CPU cores, not a doubt, the compute virtualization, software-defined storage (SDS), and hyperconverged infrastructure (HCI) and other network applications, make this problem worse, as they create more east-west traffic.

    Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.

    Offload Functions

    IEI provides four brands of NIC from Aquantia, Intel, Broadcom, Mella-nox, and with 1G, 2.5G, 5G, 10G or 25G different kinds of speed.

    smart_NICs_CPU_comparison

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)165.50 (L) x 77.8 (W) x 44.2 (H)
      I/O Interface
      Ethernet4 x LAN (RJ-45)
      Falt-tolerance
      LAN BypassYes (by sku)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% RH, Non-condensing
      Certifications
      Safety & EMCRoHS
      Card Slot Interface
      PCIe4 PCIe 2.0 x2
      Card Features
      Speed1 GbE
      Controller ChipIntel® Ethernet Controller I211-AT

    • Ordering Info.

      Item No. Description
      PulM-1G4T-I211-BP-R10 Intel® Ethernet Controller I211 based Network Interface Card with 4 x 1GbE RJ-45 4 PCIe 2.0 x 2 Interface with by pass funtion.
      PulM-1G4T-I211-R10 Intel® Ethernet Controller I211   based Network Interface Card with 4 x 1GbE RJ-45 w/o by pass 4 PCIe 2.0 x 2 Interface.

    • Package Contents

      • 1 x PulM-1G4T-I211 module

      • 1 x L-shaped T10 Plum Wrench

      • 1 x QIG
