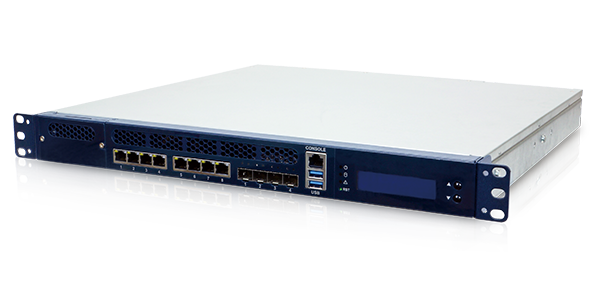

PUZZLE-A001

1U Rackmount Network Appliance with AMD EPYC™ Embedded 3000 series processor, 1 NMS & 2 PCIe x4 slots

  • Overview

    • AMD EPYC™ Embedded 3000 series processor High-Performance CPU System on Chip
    • Support 8 x GbE RJ-45 via BCM 5720, 4 x 10 GbE SFP+ and IEI Networking Module
    • 2 x 288-pin DIMM, 2 x DDR4 2666 MHz, UDIMM Up to 64GB / RDIMM Up to 128GB
    • 1 x RJ-45 Console, 2 x USB 3.1 Gen 1 (5Gb/s), LCM
    • 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.1 Gen 1(5Gb/s)), 1 x PCIe mini card (PCIe, USB 2.0)
    • Support two PCIe x4 slots

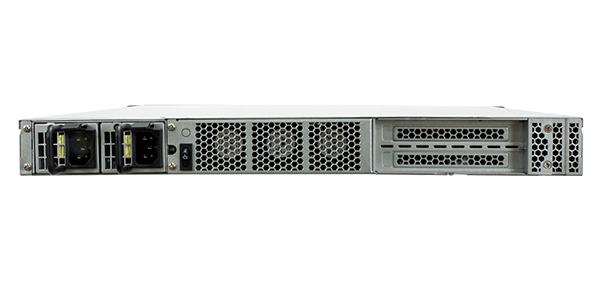

    • Redundant PSUs
  • Features

    PUZZLE-A001-network-appliance-banner

    AMD is one of the top X86-based platform provider that offers high-performance, high-core-count processors with Secure Encrypted Virtualization and Secure Memory Encryption. The PUZZLE-A001 and the PUZZLE-A002 are 1U rack network terminals powered by AMD EPYC 3000 and R-series processor to deliver outstanding computing performance.

    Empowered by AMD Platform

    AMD R-series_CPU

    AMD EPYC™ Embedded 3000 Processors

    This series leverages AMD’s advanced “Zen” architecture deliver up to a 52% improvement in instructions per clock (IPC) compared to legacy architectures. It designed with an onboard AMD Secure Processor off loading encryption, decryption operations, and executing for Crypto Co-processing that encrypts data before it feeds to the I/O, complemented with Hardware Validated Boot capabilities to ensure systems are booted from trusted software.

    AMD Embedded R-Series SoC Processors

    For compute-intensive workloads and complex algorithm processing, the AMD Embedded R-Series SOC enables system designers to leverage the benefits of 1.0-compliant Heterogeneous System Architecture (HSA) technology to boost parallel processing performance to new heights.


    Trusted Platform Module

    TPM Platform Module

    Support Trusted Platform Module (TPM)

    TPM (Trusted Platform Module) offers a broad portfolio of standardized security controllers to protect the integrity and authenticity of systems. With a secured key store and support for a variety of encryption algorithms, TPM security chips provide robust protection for critical data and processes through their rich functionality.


    Two PCIe x4 Slots

    The PUZZLE-A001 and PUZZLE-A002 feature two PCIe (Gen3 x4) slots, allowing for installing full height, 200mm length Standard PCIe card, such us single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth, for example virtualization, media workflows, and backup/ restoration tasks for an ever-growing amount of data. The expansion card also provides extra functions and computing power for the network appliance, Edge computing and AI inference, computing systems.

    Two PCIe x4 Slots

    Support Smarter NICs

    IEI smarter NICs - PulM Network Module slots support 8 lanes of PCIe Gen3 signal which is form CPU and PCH. The PCIe from CPU could be configured into two PCIe x4

    PUZZLE-A001 Network interface Controller
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
      AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
      Chipset Integrated in CPU
      Memory 4 x DDR4 2666 MHz ECC or non-ECC UDIMM
      Support RDIMM
      Memory Max. UDIMM Up to 64GB
      RDIMM Up to 128GB
      Cooling method / System Fan 4 x Cooling Fans with Smart Fan
      Physical Characteristics
      Rack Height 1U
      Dimensions (LxWxH) (mm) 430 x 320 x 44.2
      Net Weight 7 kg
      Storage
      Storage 2 x 2.5” SSD/HDD Bay
      1 x M.2(NGFF)(Internal M.2 B key (SATA & USB 3.1 Gen 1))
      I/O Interface
      Ethernet 6 x LAN(GbE RJ45 LAN ports)
      4 x SFP+(10 GbE SPF+ ports)
      I/O Interface 1 x External RS-232(Console)
      2 x External USB 3.0(USB 3.1 Gen 1)
      2 x Internal USB2.0(pin header)
      1 x Internal USB3.0(USB 3.1 Gen 1)
      Expansion 1 x M.2(NGFF)(M.2 B Key (3042/2260) (2 x PCIe or 1 x USB 3.1 Gen 1 or 1 x SATA Gen3))
      1 x PCIe mini Card Slot(PCIe, USB 2.0)
      2 x PCIe x 4
      Power
      Input 100 V ~ 240 V
      Environment
      Operating Temperature 0 ~ 40°C (32 ~ 104°F)
      Storage Temperature -10°C ~ 50°C
      Humidity 5% ~ 90% non-condensing
      Certifications
      Safety & EMC CE / FCC
      OS Support
      OS Support Linux Ubuntu 18.04.04
    • Ordering Info.

      Item No. Description
      PUZZLE-A001-SO2/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS
      PUZZLE-A001-SO3/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS
    • Package Contents

      • • Power cord

      • • Heatsink

      • • Rack mounting ears

      • • SCREW for Rack mounting ears

      • • USB to console cable (option)

      • • RS232 to console cable (option)

      • • Slide rail (option)
