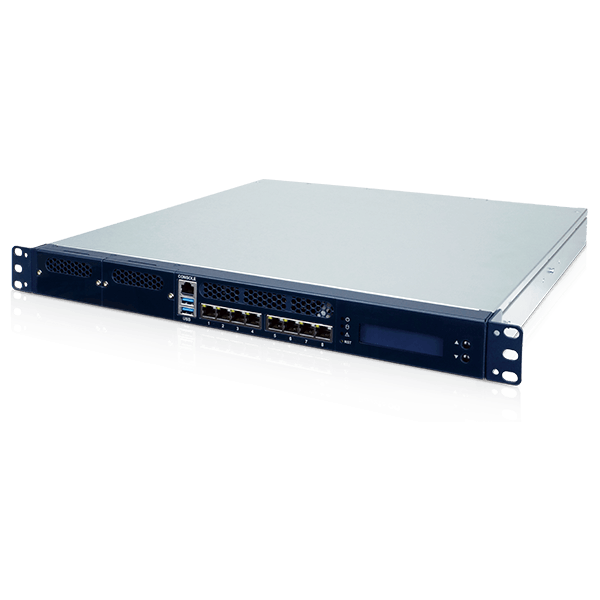

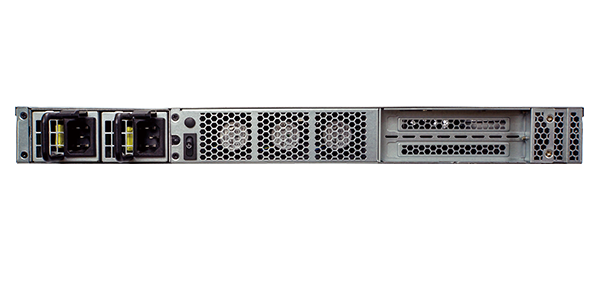

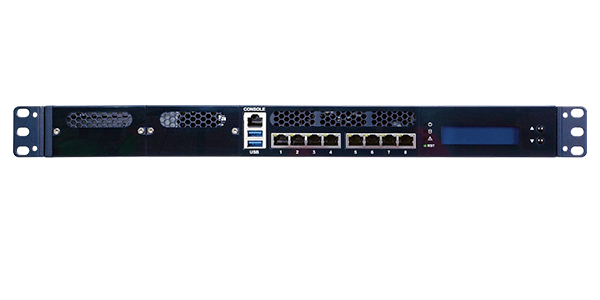

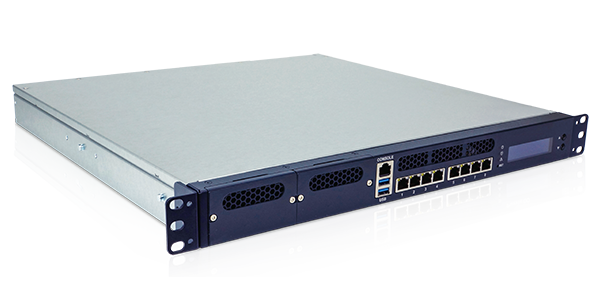

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots

  • Overview

    ● Intel® Xeon® E, 8th & 9th Generation Intel® Core™/Pentium®/Celeron® processor
    ● 8 x 5 GbE RJ-45 via AQC 111C, support 100 meters over Cat 5e or better at 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps (require no change to existing infrastructure or cabling)
    ● 4 x 288-pin DIMM, DDR4 2400MHz ECC & non ECC, up to 64 GB
    ● 1 x RJ-45 Console, 2 x USB 3.2 Gen 1, LCM
    ● 2 x 2.5” SATA drive bay, 1 x M.2 B-Key, 1 x PCIe Mini
    ● Support open source software, such as pfSense® and OPNsense®.
  • Features

    PUZZLE-IN001A Network appliance for firewall

    PUZZLE-IN001A – a 5GbE high-performance & Multi-Gig Ethernet Solution

    PUZZLE-IN001A is equipped with a high-performance Multi-Gig Ethernet controller, Marvell AQtion AQC111C 5GbE, to offer a seamless Multi-Gig upgrade path for network applications. The AQC111C incorporates the industry proven Marvell AQrate PHY technology which delivers 5GbE network connectivity speed through 100 meters of the Cat 5e cabling. Therefore, end-users can easily maximize the benefit of the existing Cat 5e cabling, which is commonly found in most buildings.

    Why 4-Speed Multi-Gigabit?

    The revolutionary 4-Speed Multi-Gigabit technology integrated in the PUZZLE-IN001A network appliance allows your devices to run at their highest speed over existing wiring.

    Why 4-Speed Multi-Gigabit?

    Standard Cat 5e at 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps Require no change to the existing infrastructure or cabling

    Standard Cat 5e at 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps
    Deliver the speed that your devices need, 5GbE Devices Ecosystem
    PUZZLE-IN001A System Block Diagram

    Support Various Expansion Card

    Support Various Expansion Card
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor 1U
      System
      CPU Intel® Gen8 Xeon® E-2136 processor
      Intel® Gen8 Core™ i3-8100T processor
      Chipset Intel® C246
      Memory 4 x DDR4 2400MHz ECC/Non-ECC UDIMM
      Memory Max. Up to 64GB
      Cooling method / System Fan 4 x Cooling fans with smart fan
      Physical Characteristics
      Dimensions (LxWxH) (mm) 430 x 426 x 44.2
      Storage
      Storage 2 x 2.5” SSD/HDD Bay (support SATA 3.0 (6 Gbps))
      I/O Interface
      Ethernet 8 x LAN (8 x 5GbE RJ-45 LAN ports (AQC111C))
      I/O Interface 2 x External USB 3.2 Gen1x1 (Gen 1 (5Gb/s))
      4 x Internal USB 2.0 (USB 2.0 (pin header))
      Expansion 1 x PCIe x8
      1 x PCIe x4
      1 x PCIe mini Card Slot (PCIe 3.0 & SATA 3.0, USB 2.0)
      1 x M.2(NGFF) (3042/2260 M.2 B key (SATA 3.0 / USB 3.2 Gen1)
      Support SATA SSD and 4G LTE module)
      Power
      Power Supply 300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
      Humidity 5% ~ 90% non-condensing
      Certifications
      Safety & EMC CE / FCC
      OS Support
      OS Support Linux Ubuntu 18.04.04
      CentOS 7/ Red Hat/Fedora EPEL
      Microsoft Windows 10
    • Ordering Info.

      Item No. Description
      PUZZLE-IN001A-i3T/16G/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Core™ i3-8100T processor, 16GB DDR4, two 256GB SSD, eight 5GbE, two PulM, two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001A-XE/16G/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Xeon® E-2136 processor, 16GB DDR4, two 256GB SSD, eight 5GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
    • Package Contents

      • .2 x Power cord

      • .2 x Rack mounting ears

      • .6 x Screws for rack mounting ears

      • .USB to console cable (Option)

      • .RS-232 to console cable (Option)

      • .Slide rail (Option)
