Network Appliance
Intel® 2U Network Appliance
PUZZLE IN-series offers 2U rackmount server-grade network appliance with dual Intel® processors. It features Intel® QAT, hot swappable system fans, redundant power, high expansion, and easily upgrade with smart NIC – PulM series.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

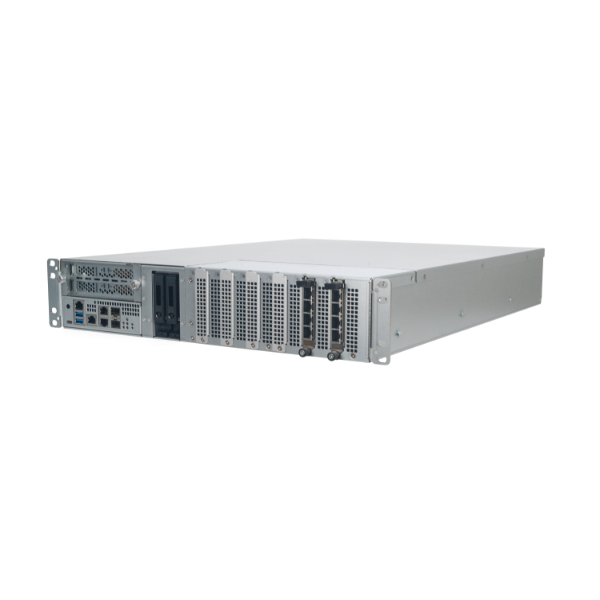

PUZZLE-IN005 Intel® 2U Network Appliance

PUZZLE-IN005

2U Rackmount Network Appliance with 3rd Gen. Intel®Xeon® Scalable Processor,
Eight PulM Module Slots & One PCIe x8 Expansion
Intel® Ice-Lake LGA-4189 Xeon® Scalable Processor C627A 20 x DDR4 3200MHz ECC R-DIMM / LR-DIMM 2U 4 x 2.5” SSD/HDD Bay: Support nVMe (PCIe gen4 x4) & SATA 3.0 (6Gbps)
2 x M.2(NGFF): Support nVMe (PCIe gen3 x4)
Intel® 1U Network Appliance
PUZZLE IN-series offers 1U rackmount network appliance with Intel® processors for high speed and powerful solutions. It features Intel® QAT, bypass function, supports add-on cards or AI accelerator cards, and easily upgrade with smart NIC – PulM cards.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

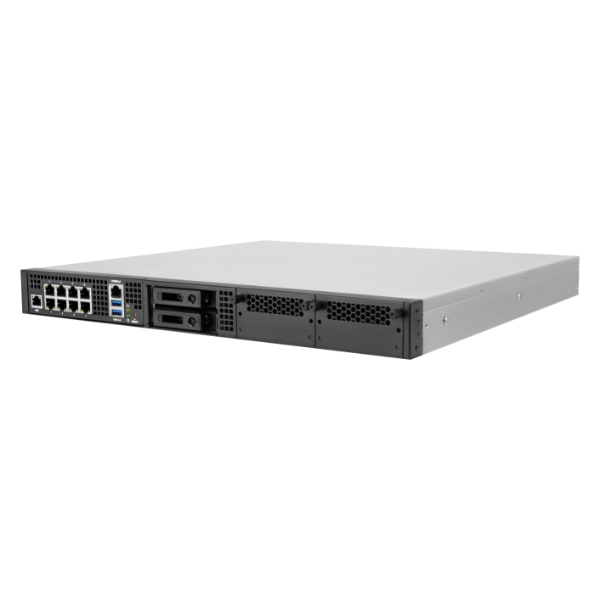

IEI PUZZLE-IN001 x86-based appliance

PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series Intel® C246 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
1U
1U ‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key

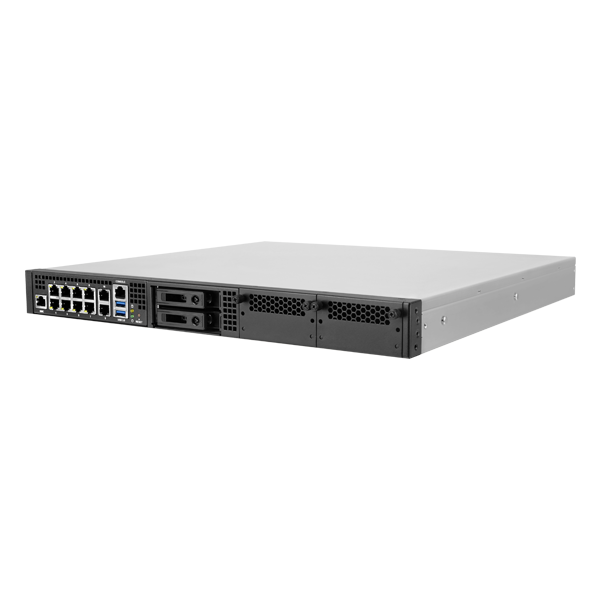

PUZZLE-IN001A Network Appliance

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series Intel® C246 4 x DDR4 2400MHz ECC/Non-ECC UDIMM
1U
1U ‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key

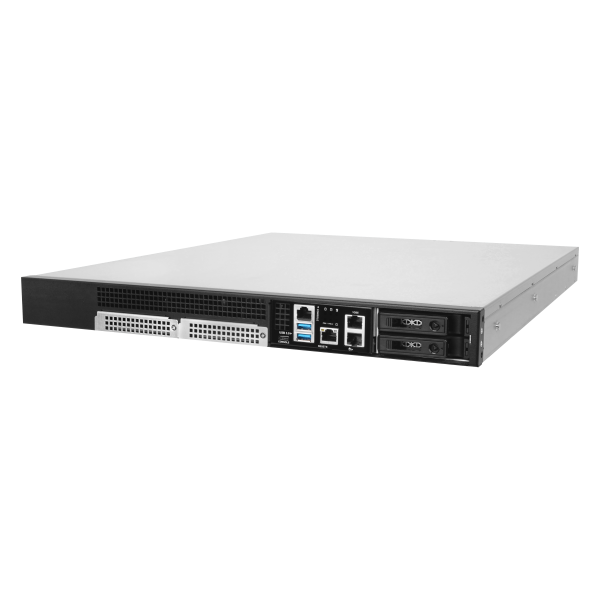

PUZZLE-IN002 Network Appliance with Intel CPU

PUZZLE-IN002

1U Rackmount Network Appliance with 8th Generation IntelCore. i7/i5/i3, Pentiumor CeleronProcessor, 1 PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series Intel® H310 2 x DDR4 2400MHz Non-ECC UDIMM
1U
1U ‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
PUZZLE-IN004 1U Rackmount Network Appliance with Intel® Xeon® D Processor

PUZZLE-IN004

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot
Intel® Xeon® D Processor series Integrated in CPU 8 x DDR4 2666MHz ECC or non-ECC UDIMM, Supoort RDIMM/LRDIMM
1U
1U ‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧2 x M.2 M key 2260/2280
Intel® Desktop Network Appliance
PUZZLE IN-series offers desktop network appliance with Intel® processors for space-saving and high speed network solutions. It features Intel® QAT and bypass function.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PUZZLE-IN003A Desktop Network Appliance

PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB
Intel Atom® C3000 processor series Integrated in CPU 2 x DDR4 2133MHz ECC/non-ECC UDIMM, Support RDIMM Desktop ‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB
PUZZLE-IN003B compact network firewall appliance for SMB

PUZZLE-IN003B

Desktop Network Appliance with Intel Atom C3000 processor up to 16 CPU cores support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB
Intel Atom® C3000 processor series Integrated in CPU 4 x DDR4 2133MHz ECC/ non-ECC UDIMM, Support RDIMM Desktop ‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB
ARM-based 1U Network Appliance
PUZZLE M-series provides 1U rackmount network appliance with ARM-based operation system. It offers special hardware offload for network functions, such as packet processor and datapath acceleration.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PUZZLE-M801 Network Appliance

PUZZLE-M801

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip
Marvell® Armada® 8040 ARM v8 A72, 4C System-on-Chip (SoC), up to 2.0GHz
N/A
N/A 1 x DDR4 2400MHz Non-ECC UDIMM
1U
1U 1 x 2.5” SSD/HDD Bay
1 x M.2 B key
ARM-based Desktop Network Appliance

PUZZLE M-series offers desktop network appliance with ARM-based operation system.[Learn More about PUZZLE Series]

PUZZLE-M901 Software Defined Router for Small and Medium Business

PUZZLE-M901

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to 6 x2.5 GbE on Board with 1 x eMMC 4GB
PUZZLE-M902_Software-Defined-Router

PUZZLE-M902

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to three 10GbE, six 2.5GbE with 4GB eMMC
Network Module
100GbE Network Module

100GbE Smart NIC Module with Intel®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-100G2SF-E810 100GbE Network Module

PulM-100G2SF

Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface
Intel® Ethernet Controller EZE810CAM2 2 x QSFP28 100 GbE 1 PCIe 4.0 x8
25GbE Network Module

25GbE Smart NIC Module with Mellanox®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-25G2SF

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface
Mellanox ConnectX-4 Lx EN 2 x SFP+ (SFP28) 25GbE PCIe 3.0 x8
10GbE Network Module

10GbE Smart NIC Module with Intel®, Mellanox® and AQUANTIA® Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-10G2SF-X710 Network Interface Controller

PulM-10G2SF

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface
Intel® Ethernet Controller X710-BM2 2 x SFP+ 10GbE PCIe 3.0 x8

PulM-10G4SF

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.
Intel® Ethernet Controller XL710-BM1 4 x SFP+ 10GbE PCIe 3.0 x8
PulM-10G4SF-MLX Mellanox ConnectX-4 Lx based Network Interface Card

PulM-10G4SF-MLX

Mellanox ConnectX-4 Lx based Network Interface Card support Quad 10GbE with 4 x SFP+ by 2 PCIe 3.0 x 4 Interface
Mellanox ConnectX-4 4 x SFP+ 10GbE 2 PCIe 3.0 x4

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface
Intel® Ethernet Controller XL710-BM1 4 x SFP+ 10GbE PCIe 3.0 x8

PulM-10G4T

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface
Aquantia AQC107 4 x 10GBASE-T 10GbE 4 PCIe 3.0 x2
1GbE Network Module
1GbE Smart NIC Module with Intel®, Mellanox®, BROADCOM® and AQUANTIA® Chipset
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-1G4SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with  4 x SFP by 2 PCIe 2.0 x4 interface.
Intel Ethernet Controller I350-AM4 4 x SFP 1 GbE 2 PCIe 2.0 x4

PulM-1G4T-I211

Intel® Ethernet Controller I211 based Network Interface Card with 4 x GbE RJ-45 by 4 PCIe 2.0 x2 Interface *with by pass funtion (by sku).
Intel® Ethernet Controller I211 4 x RJ45 1 GbE 4 PCIe 2.0 x2

PulM-1G4T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4 4 x RJ45 1 GbE 2 PCIe 2.0 x4
PulM-1G8SF-I350 network interface controller

PulM-1G8SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x SFP by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4 8 x SFP 1 GbE 2 PCIe 2.0 x4

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface
Broadcom BCM5720 8 x RJ45 1 GbE 4 PCIe 2.0 x2

PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4 8 x RJ45 1 GbE 2 PCIe 2.0 x4
Other Network Module

Expansion Proprietary Smart NIC Module

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
IEI PulM-2P1M Network Module

PulM-2P1M

Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module, RoHS
● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))
● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot
PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface
N/A
N/A
N/A
N/A
N/A
N/A 2 PCIe 3.0 x4
Network Accelerator Card

Computing Acceleration Smart NIC Module

[PulM Series Selection Guide]

Mustang-QA100 Intel QAT accelerator

Mustang-QA100

Intel® QAT accelerator for Crypto and Compression with lewisburg chipset, PCIe gen3 x16, RoHS
AI Training Server System
GRAND-C422
The GRAND-C422 is dedicated for AI training tasks based on its wide range of slot support for storage expansion, accelerator cards, video capture, Thunderbolt ™ or PoE add-on cards for unlimited data acquisition possibilities.
  • High-Speed Storage Transmission
  • High Capacity Storage
  • Water Cooling System
  • Hyper Converged Infrastructure
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-C422-20D-H

The GRAND-C422-20D is an AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card
Intel® LGA-2066 Xeon® W Family processor C422 Total slot: 4 x DDR4 ECC RDIMM / LRDIMM
Memory expandable up to:256GB (4 x 64GB)
4U
4U 12 x 2.5” / 3.5” drive bay
8 x 2.5” drive bay
All support SAS /SATA
Storage Server
Intel® CPU
IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-GL

Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)
Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
SoC
SoC 2 x SODIMM Slots, up to 8GB memory with 2 x 4GB DIMMs 1U, 4Bay 4 x 3.5” HDD Bay
AMD® CPU
IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-RE

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
SoC
SoC 2 x DIMM Slots, up to 32 GB memory (2 x 16GB) 2U, 8Bay 8 x 3.5” HDD Bay
