Products

>

Networking and Servers

>

Network Appliance

Premium network appliances

The 1U and 2U rackmount network appliances feature the latest server-grade Intel® Xeon® D and Intel® Xeon® Scalable processors for enterprise network and cloud infrastructures. The network appliances offer high expandability, scaling throughputs and various copper, fiber and bypass Ethernet ports through optional 1GbE/10GbE/25GbE/100GbE NIC modules.

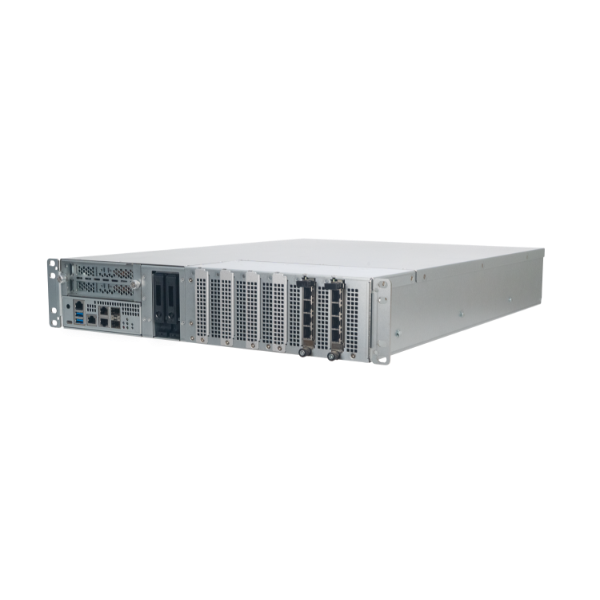

PUZZLE-9040

2U Rackmount Network Appliance with Intel® Xeon® Scalable processors (Code name: Sapphire Rapids)
(request by order)

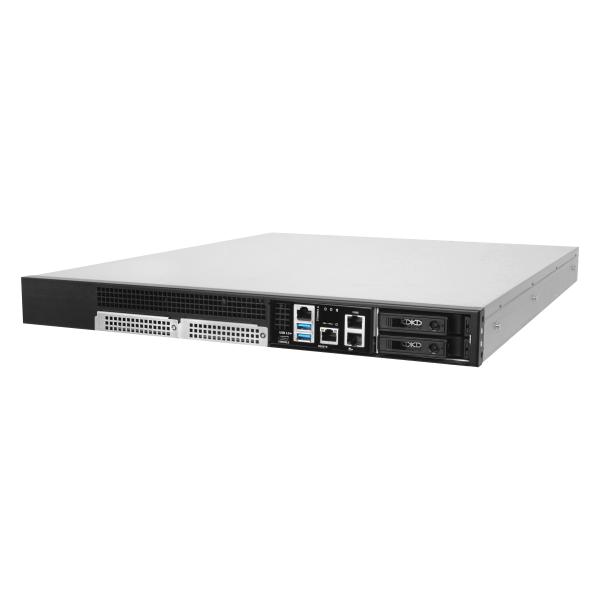

IEI PUZZLE-7030A intel 1U network appliance

PUZZLE-7030A

1U Rackmount Network Appliance with Intel® Xeon® D Processor series (Code Name: Ice Lake-D LCC)

PUZZLE-9030 1U Rackmount Network Appliance

PUZZLE-9030

1U Rackmount Network Appliance with 3rd Gen AMD® EPYC™ 7003 series processor
(request by order)

Performance-level network appliances

The 1U rackmount network appliances integrate with Intel® Xeon® E and Intel® Core™ processors. They are ideally to be deployed in various security applications such as firewall, VPN and UTM for medium-sized enterprises. Extra redundancy features are also included like hot-swappable PSUs and multiple network module slot (NMS) bays for flexible port configuration.

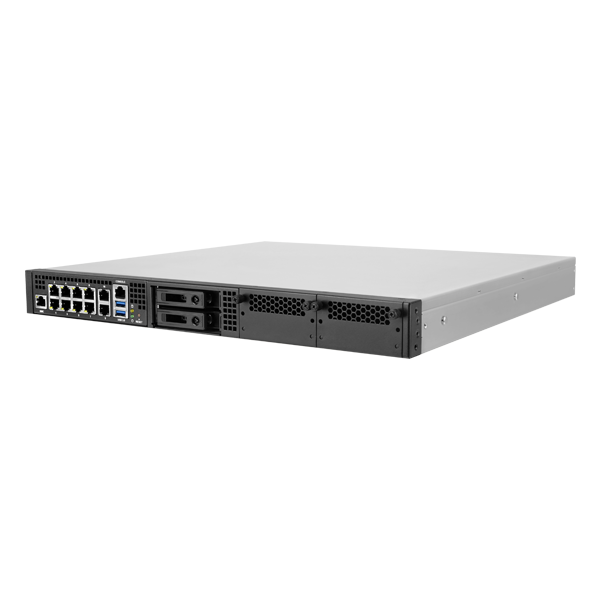

PUZZLE-IN001A Network Appliance

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots

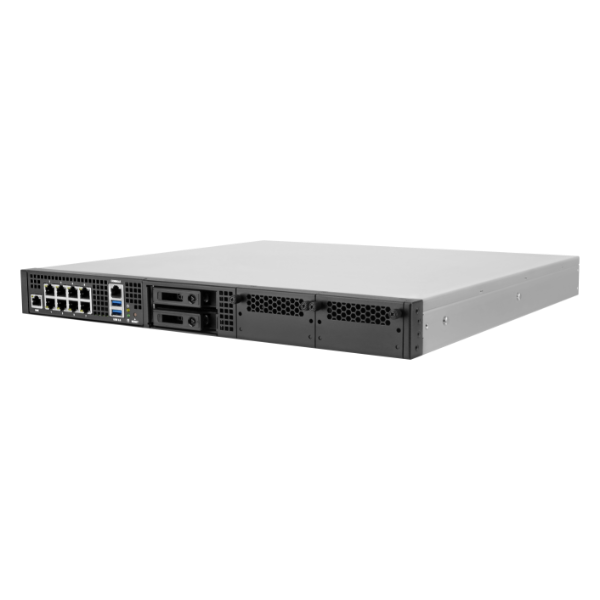

IEI PUZZLE-IN001 x86-based appliance

PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots

Entry-level network appliances

The compact and fanless network appliances are designed to meet the most cost-performance efficient and environmentally-friendly networking requirements for mainstream security applications.

iEi PUZZLE-3034 desktop network appliance

PUZZLE-3034

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, with 8 x 2.5 GbE and 4 x 10 GbE, 1 x eMMC 64GB

iEi PUZZLE-3032 desktop network appliance

PUZZLE-3032

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, with 8 x 2.5 GbE and 2 x 10 GbE, 1 x eMMC 64GB

PUZZLE-IN003A Desktop Network Appliance

PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB

PUZZLE-IN003B compact network firewall appliance for SMB

PUZZLE-IN003B

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB

ARM-based network appliances

The ARM-based network appliance can be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure.

PUZZLE-M801 Network Appliance

PUZZLE-M801

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip

ARM-based network appliances

PUZZLE-100 Right

PUZZLE-100

Desktop network appliance with Marvell Armada 7040 CPU

Storage Server

Intel® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

GRAND-GL

Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)

Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption

Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption

SoC

SoC

1U, 4Bay

1U, 4Bay

AMD® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

GRAND-RE

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor

SoC

SoC

2U, 8Bay

2U, 8Bay

Network Module

100GbE Network Module

100GbE Smart NIC Module with Intel® Chipset

[PulM Series Selection Guide]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

PulM-100G2SF-CX6

Mellanox ConnectX-6 Lx based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface

Mellanox ConnectX-6 Dx

Mellanox ConnectX-6 Dx

2 x QSFP28

2 x QSFP28

1/10/25/40/50/100 Gb/s

1/10/25/40/50/100 Gb/s

1 PCIe 4.0 x16

1 PCIe 4.0 x16

PulM-100G2SF-E810 100GbE Network Module

PulM-100G2SF

Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface

Intel® Ethernet Controller EZE810CAM2

Intel® Ethernet Controller EZE810CAM2

2 x QSFP28

2 x QSFP28

100 GbE

100 GbE

1 PCIe 4.0 x8

1 PCIe 4.0 x8

25GbE Network Module

25GbE Smart NIC Module with Mellanox® Chipset

[PulM Series Selection Guide]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

PulM-25G2SF

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface

Mellanox ConnectX-4 Lx EN

Mellanox ConnectX-4 Lx EN

2 x SFP+ (SFP28)

2 x SFP+ (SFP28)

25GbE

25GbE

PCIe 3.0 x8

PCIe 3.0 x8

10GbE Network Module

10GbE Smart NIC Module with Intel®, Mellanox® and AQUANTIA® Chipset

[PulM Series Selection Guide]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

PulM-10G2SF-X710 Network Interface Controller

PulM-10G2SF

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface

Intel® Ethernet Controller X710-BM2

Intel® Ethernet Controller X710-BM2

2 x SFP+

2 x SFP+

10GbE

10GbE

PCIe 3.0 x8

PCIe 3.0 x8

PulM-10G4SF

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.

Intel® Ethernet Controller XL710-BM1

Intel® Ethernet Controller XL710-BM1

4 x SFP+

4 x SFP+

10GbE

10GbE

PCIe 3.0 x8

PCIe 3.0 x8

PulM-10G4T

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface

Aquantia AQC107

Aquantia AQC107

4 x 10GBASE-T

4 x 10GBASE-T

10GbE

10GbE

4 PCIe 3.0 x2

4 PCIe 3.0 x2

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface

Intel® Ethernet Controller XL710-BM1

Intel® Ethernet Controller XL710-BM1

4 x SFP+

4 x SFP+

10GbE

10GbE

PCIe 3.0 x8

PCIe 3.0 x8

1GbE Network Module

1GbE Smart NIC Module with Intel®, Mellanox®, BROADCOM® and AQUANTIA® Chipset

[PulM Series Selection Guide]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

PulM-1G8SF-I350 network interface controller

PulM-1G8SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x SFP by 2 PCIe 2.0 x4 interface, RoHS

Intel® Ethernet Controller I350-AM4

Intel® Ethernet Controller I350-AM4

8 x SFP

8 x SFP

1 GbE

1 GbE

2 PCIe 2.0 x4

2 PCIe 2.0 x4

PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS

Intel® Ethernet Controller I350-AM4

Intel® Ethernet Controller I350-AM4

8 x RJ45

8 x RJ45

1 GbE

1 GbE

2 PCIe 2.0 x4

2 PCIe 2.0 x4

PulM-1G4T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS

Intel® Ethernet Controller I350-AM4

Intel® Ethernet Controller I350-AM4

4 x RJ45

4 x RJ45

1 GbE

1 GbE

2 PCIe 2.0 x4

2 PCIe 2.0 x4

PulM-1G4SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x SFP by 2 PCIe 2.0 x4 interface.

Intel Ethernet Controller I350-AM4

Intel Ethernet Controller I350-AM4

4 x SFP

4 x SFP

1 GbE

1 GbE

2 PCIe 2.0 x4

2 PCIe 2.0 x4

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface

Broadcom BCM5720

Broadcom BCM5720

8 x RJ45

8 x RJ45

1 GbE

1 GbE

4 PCIe 2.0 x2

4 PCIe 2.0 x2

Other Network Module

Expansion Proprietary Smart NIC Module

[PulM Series Selection Guide]

CPU

Chipset

Rack Height

Form factor

Controller chip

Ethernet

Speed

PCIe

Supported device

IEI PulM-2P1M Network Module

PulM-2P1M

Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module, RoHS

● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))

● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))

● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot

● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot

PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A

PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A

Network Accelerator Card

Computing Acceleration Smart NIC Module

[PulM Series Selection Guide]

Mustang-QA100 Intel QAT accelerator

Mustang-QA100

Intel® QAT accelerator for Crypto and Compression with lewisburg chipset, PCIe gen3 x16, RoHS
