Network Appliance

Intel® 2U Network Appliance

PUZZLE IN-series offers 2U rackmount server-grade network appliance with dual Intel® processors. It features Intel® QAT, hot swappable system fans, redundant power, high expansion, and easily upgrade with smart NIC – PulM series.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

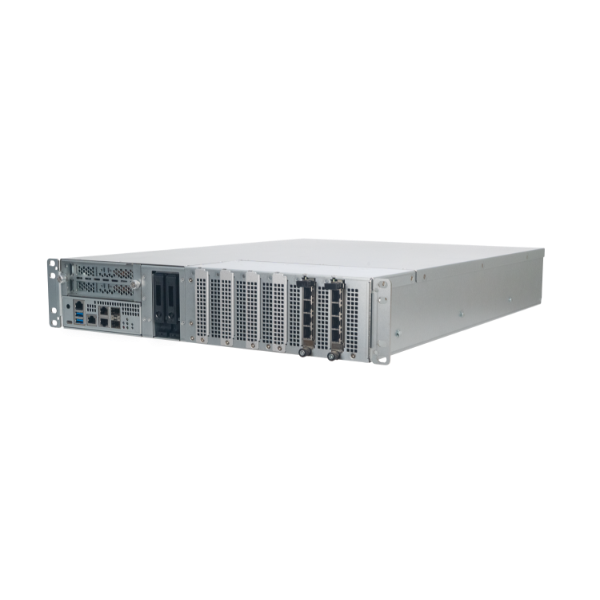

PUZZLE-IN005 Intel® 2U Network Appliance

PUZZLE-IN005

2U Rackmount Network Appliance with 3rd Gen. Intel®Xeon® Scalable Processor,
Eight PulM Module Slots & One PCIe x8 Expansion
Intel® Ice-Lake LGA-4189 Xeon® Scalable Processor
Intel® Ice-Lake LGA-4189 Xeon® Scalable Processor
C627A
C627A
20 x DDR4 3200MHz ECC R-DIMM / LR-DIMM
20 x DDR4 3200MHz ECC R-DIMM / LR-DIMM
2U
2U
4 x 2.5” SSD/HDD Bay: Support nVMe (PCIe gen4 x4) & SATA 3.0 (6Gbps)
2 x M.2(NGFF): Support nVMe (PCIe gen3 x4)
4 x 2.5” SSD/HDD Bay: Support nVMe (PCIe gen4 x4) & SATA 3.0 (6Gbps)
2 x M.2(NGFF): Support nVMe (PCIe gen3 x4)

Intel® 1U Network Appliance

PUZZLE IN-series offers 1U rackmount network appliance with Intel® processors for high speed and powerful solutions. It features Intel® QAT, bypass function, supports add-on cards or AI accelerator cards, and easily upgrade with smart NIC – PulM cards.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
IEI PUZZLE-IN001 x86-based appliance

PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® C246
Intel® C246
2 x DDR4 2400MHz ECC/Non-ECC UDIMM
2 x DDR4 2400MHz ECC/Non-ECC UDIMM
1U
1U
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key
PUZZLE-IN001A Network Appliance

PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® C246
Intel® C246
4 x DDR4 2400MHz ECC/Non-ECC UDIMM
4 x DDR4 2400MHz ECC/Non-ECC UDIMM
1U
1U
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧1 x 2260/3042 B key
PUZZLE-IN002 Network Appliance with Intel CPU

PUZZLE-IN002

1U Rackmount Network Appliance with 8th & 9th Generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, 1 PCIe slots
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor Series
Intel® H310
Intel® H310
2 x DDR4 2400MHz Non-ECC UDIMM
2 x DDR4 2400MHz Non-ECC UDIMM
1U
1U
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
‧2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
PUZZLE-IN004 1U Rackmount Network Appliance with Intel® Xeon® D Processor

PUZZLE-IN004

1U Rackmount Network Appliance with Intel® Xeon® D Processor support 8 x GbE, 4 x 10GbE SFP+ and 1 PCIe x8 slot
Intel® Xeon® D Processor series
Intel® Xeon® D Processor series
Integrated in CPU
Integrated in CPU
8 x DDR4 2666MHz ECC or non-ECC UDIMM, Supoort RDIMM/LRDIMM
8 x DDR4 2666MHz ECC or non-ECC UDIMM, Supoort RDIMM/LRDIMM
1U
1U
2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
2 x M.2 M key 2280 (PCIe x4)
2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
2 x M.2 M key 2280 (PCIe x4)

Intel® Desktop Network Appliance

PUZZLE IN-series offers desktop network appliance with Intel® processors for space-saving and high speed network solutions. It features Intel® QAT and bypass function.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PUZZLE-IN003A Desktop Network Appliance

PUZZLE-IN003A

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor, up to 8 x 1 GbE on Board with 2 (by sku) bypass segments, 1 x eMMC 32GB
Intel Atom® C3000 processor series
Intel Atom® C3000 processor series
Integrated in CPU
Integrated in CPU
2 x DDR4 2133MHz ECC/non-ECC UDIMM, Support RDIMM
2 x DDR4 2133MHz ECC/non-ECC UDIMM, Support RDIMM
Desktop
Desktop
‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB
‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB
PUZZLE-IN003B compact network firewall appliance for SMB

PUZZLE-IN003B

Desktop Network Appliance with Intel® Atom® Processor C3000 Processor support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB
Intel Atom® C3000 processor series
Intel Atom® C3000 processor series
Integrated in CPU
Integrated in CPU
4 x DDR4 2133MHz ECC/ non-ECC UDIMM, Support RDIMM
4 x DDR4 2133MHz ECC/ non-ECC UDIMM, Support RDIMM
Desktop
Desktop
‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB
‧1 x SATA 3.0 + 1 x 5V power connector (for SATA DOM)
‧1 x 2260/2280 B key
‧1 x eMMC 32GB

AMD® 1U Network Appliance

PUZZLE series offers 1U rackmount network appliance with AMD® processors for well secure encryption. It supports add-on cards or AI accelerator cards, and easily upgrade with smart NIC – PulM series.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PUZZLE-9030 1U Rackmount Network Appliance

PUZZLE-9030

1U Rackmount Network Appliance with 3rd Gen AMD® EPYC™ 7003 series processor
(request by order)
AMD 3rd Gen EPYC™ 7003 Processor Family (Codename: Milan)
AMD 3rd Gen EPYC™ 7003 Processor Family (Codename: Milan)
Integrated in CPU
Integrated in CPU
8-channel DDR4 3200MHz memory, support ECC RDIMM/LRDIM
8-channel DDR4 3200MHz memory, support ECC RDIMM/LRDIM
1U
1U
2 x U.2 (PCIe 4.0 x4) 2.5” NVMe SSD or 2 x SATA 3.0 3.5” HDD
2 x U.2 (PCIe 4.0 x4) 2.5” NVMe SSD or 2 x SATA 3.0 3.5” HDD

ARM-based 1U Network Appliance

PUZZLE M-series provides 1U rackmount network appliance with ARM-based operation system. It offers special hardware offload for network functions, such as packet processor and datapath acceleration.
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PUZZLE-M801 Network Appliance

PUZZLE-M801

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip
Marvell® Armada® 8040 ARM v8 A72, 4C System-on-Chip (SoC), up to 2.0GHz
Marvell® Armada® 8040 ARM v8 A72, 4C System-on-Chip (SoC), up to 2.0GHz
N/A
N/A
1 x DDR4 2400MHz Non-ECC UDIMM
1 x DDR4 2400MHz Non-ECC UDIMM
1U
1U
1 x 2.5” SSD/HDD Bay
1 x M.2 B key
1 x 2.5” SSD/HDD Bay
1 x M.2 B key

ARM-based Desktop Network Appliance

PUZZLE M-series offers desktop network appliance with ARM-based operation system.[Learn More about PUZZLE Series]

PUZZLE-M901 Software Defined Router for Small and Medium Business

PUZZLE-M901

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to 6 x2.5 GbE on Board with 1 x eMMC 4GB
PUZZLE-M902_Software-Defined-Router

PUZZLE-M902

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to three 10GbE, six 2.5GbE with 4GB eMMC
Network Module

100GbE Network Module

100GbE Smart NIC Module with Intel®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-100G2SF-E810 100GbE Network Module

PulM-100G2SF

Intel® Ethernet Controller EZE810CAM2 based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x8 interface
Intel® Ethernet Controller EZE810CAM2
Intel® Ethernet Controller EZE810CAM2
2 x QSFP28
2 x QSFP28
100 GbE
100 GbE
1 PCIe 4.0 x8
1 PCIe 4.0 x8

PulM-100G2SF-CX6

Mellanox ConnectX-6 Lx based Network Interface Card with 2 x QSFP28 by 1 PCIe 4.0 x16 interface
Mellanox ConnectX-6 Dx
Mellanox ConnectX-6 Dx
2 x QSFP28
2 x QSFP28
1/10/25/40/50/100 Gb/s
1/10/25/40/50/100 Gb/s
1 PCIe 4.0 x16
1 PCIe 4.0 x16

25GbE Network Module

25GbE Smart NIC Module with Mellanox®  Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-25G2SF

Mellanox ConnectX-4 Lx based Network Interface Card support Dual 25GbE with 2 x SFP28 and PCIe 3.0 x8 Interface
Mellanox ConnectX-4 Lx EN
Mellanox ConnectX-4 Lx EN
2 x SFP+ (SFP28)
2 x SFP+ (SFP28)
25GbE
25GbE
PCIe 3.0 x8
PCIe 3.0 x8

10GbE Network Module

10GbE Smart NIC Module with Intel®, Mellanox® and AQUANTIA® Chipset

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
PulM-10G2SF-X710 Network Interface Controller

PulM-10G2SF

Intel® Ethernet Controller X710-BM2 based Network Interface Card with 2 x SFP+ by PCIe 3.0 x8 interface
Intel® Ethernet Controller X710-BM2
Intel® Ethernet Controller X710-BM2
2 x SFP+
2 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4SF

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with four 10GbE Fiber ports, two pair Bypass.
Intel® Ethernet Controller XL710-BM1
Intel® Ethernet Controller XL710-BM1
4 x SFP+
4 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4SF-XL710

Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x8 interface
Intel® Ethernet Controller XL710-BM1
Intel® Ethernet Controller XL710-BM1
4 x SFP+
4 x SFP+
10GbE
10GbE
PCIe 3.0 x8
PCIe 3.0 x8

PulM-10G4T

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface
Aquantia AQC107
Aquantia AQC107
4 x 10GBASE-T
4 x 10GBASE-T
10GbE
10GbE
4 PCIe 3.0 x2
4 PCIe 3.0 x2

1GbE Network Module

1GbE Smart NIC Module with Intel®, Mellanox®, BROADCOM® and AQUANTIA® Chipset
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

PulM-1G4SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with  4 x SFP by 2 PCIe 2.0 x4 interface.
Intel Ethernet Controller I350-AM4
Intel Ethernet Controller I350-AM4
4 x SFP
4 x SFP
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

PulM-1G4T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
4 x RJ45
4 x RJ45
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4
PulM-1G8SF-I350 network interface controller

PulM-1G8SF

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x SFP by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
8 x SFP
8 x SFP
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface
Broadcom BCM5720
Broadcom BCM5720
8 x RJ45
8 x RJ45
1 GbE
1 GbE
4 PCIe 2.0 x2
4 PCIe 2.0 x2

PulM-1G8T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 8 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS
Intel® Ethernet Controller I350-AM4
Intel® Ethernet Controller I350-AM4
8 x RJ45
8 x RJ45
1 GbE
1 GbE
2 PCIe 2.0 x4
2 PCIe 2.0 x4

Other Network Module

Expansion Proprietary Smart NIC Module

[PulM Series Selection Guide]

CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device
IEI PulM-2P1M Network Module

PulM-2P1M

Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module, RoHS
● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))
● ASM1812 (PCIe Gen2x4 )
● FL1100EX (PCI-E To USB 3.0 (4 Port))
● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot
● 2 x PCIe Mini (PCIe, USB 2.0) with SIM card slots
● 1 x 2230/2242 M.2 B key (PCIe 2.0, USB 3.2 Gen1) with SIM card slot
PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A
PUZZLE-IN001,
PUZZLE-IN001A,
PUZZLE-IN004,
PUZZLE-IN005,
PUZZLE-A001,
PUZZLE-A001A

PulM-M2-2S

M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface
N/A
N/A
N/A
N/A
N/A
N/A
2 PCIe 3.0 x4
2 PCIe 3.0 x4

Network Accelerator Card

Computing Acceleration Smart NIC Module

[PulM Series Selection Guide]

Mustang-QA100 Intel QAT accelerator

Mustang-QA100

Intel® QAT accelerator for Crypto and Compression with lewisburg chipset, PCIe gen3 x16, RoHS
Storage Server

Intel® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-GL

Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)
Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
SoC
SoC
2 x SODIMM Slots, up to 8GB memory with 2 x 4GB DIMMs
2 x SODIMM Slots, up to 8GB memory with 2 x 4GB DIMMs
1U, 4Bay
1U, 4Bay
4 x 3.5” HDD Bay
4 x 3.5” HDD Bay

AMD® CPU

IEI offers the high reliability rackmount enterprise storage server system (Barebone), support multiple operating systems. Our Storage server series are available in 1U, 2U and 3U form factors, supporting from 4 to 30 drive bays. *Software RAID Support *10GbE Network Support Ready *Storage Expandable for Enterprise
[Learn More about GRAND Series]
CPU
Chipset
RAM
Rack Height
Drive type
Form factor
Controller chip
Ethernet
Speed
PCIe
Supported device

GRAND-RE

AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
SoC
SoC
2 x DIMM Slots, up to 32 GB memory (2 x 16GB)
2 x DIMM Slots, up to 32 GB memory (2 x 16GB)
2U, 8Bay
2U, 8Bay
8 x 3.5” HDD Bay
8 x 3.5” HDD Bay
0
